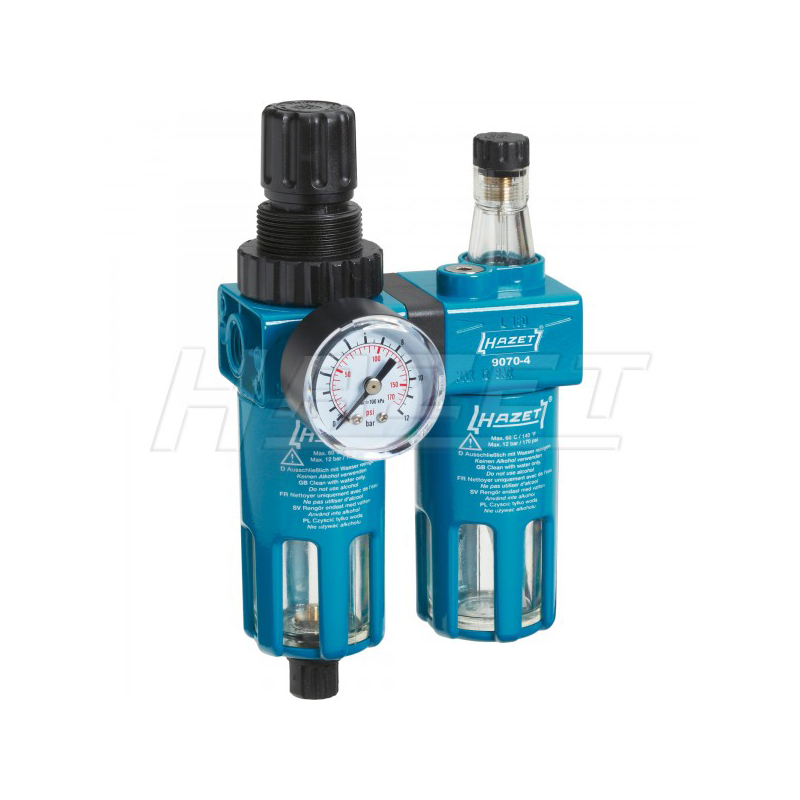

Hazet 9070-4 Maintenance Unit
- 9070-4
- Hazet
- Pneumatic Tools
Downloads
Description
Product information
Dual, consisting of filter-pressure reducer, oil-mist lubricator and manometer
Air inlet thread 12.91 mm (1⁄4")
Air flow at 6.3 bar: 1800 Nl/min
Capacity of filter-pressure reducer: 30 ml
Capacity of oil-mist lubricator: 40 ml
Connection manometer: 3.2 mm (1/8")
Max. pressure: 16 bar (1/2" and 3/8") 12 bar (1/4"),
max. working pressure: 12 bar (1/2" and 3/8") 10 bar (1/4")
Pressure indication: 0.5 – 12 bar
Filter grade: 10 µm
Recommended lubricant: class F (Sprinter ADVP 22)
Air connection inlet: Inside thread (IG) 12.91 mm (1/4″)
Air connection outlet: Inside thread (IG) 12.91 mm (1/4″)
Net weight: 0.58 kg
Temperature range: -10°C – 55°C
