Hazet 9070-5 Filter-pressure reducer

Hazet

Downloads

No files available.

Product information

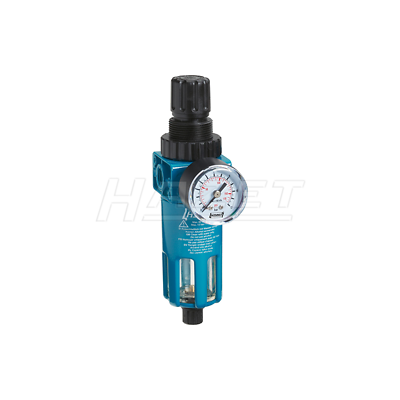

    Consisting of filter-pressure reducer and manometer

    Air inlet thread 20.67 mm (1⁄2")

    Air flow at 6.3 bar: 5000 Nl/min

    Connection manometer: 3.2 mm (1/8")

    Max. pressure: 16 bar (1/2" and 3/8") 12 bar (1/4"),

    max. working pressure: 12 bar (1/2" and 3/8") 10 bar (1/4")

    Pressure indication: 0.5 – 12 bar

    Filter grade: 10 µm

    Capacity filter-pressure reducer: 50 ml

    Air connection inlet: Inside thread (IG) 20.67 mm (1/2″)

    Air connection outlet: Inside thread (IG) 20.67 mm (1/2″)

    Net weight: 0.89 kg

    Temperature range: -10°C – 55°C
