Details
Size

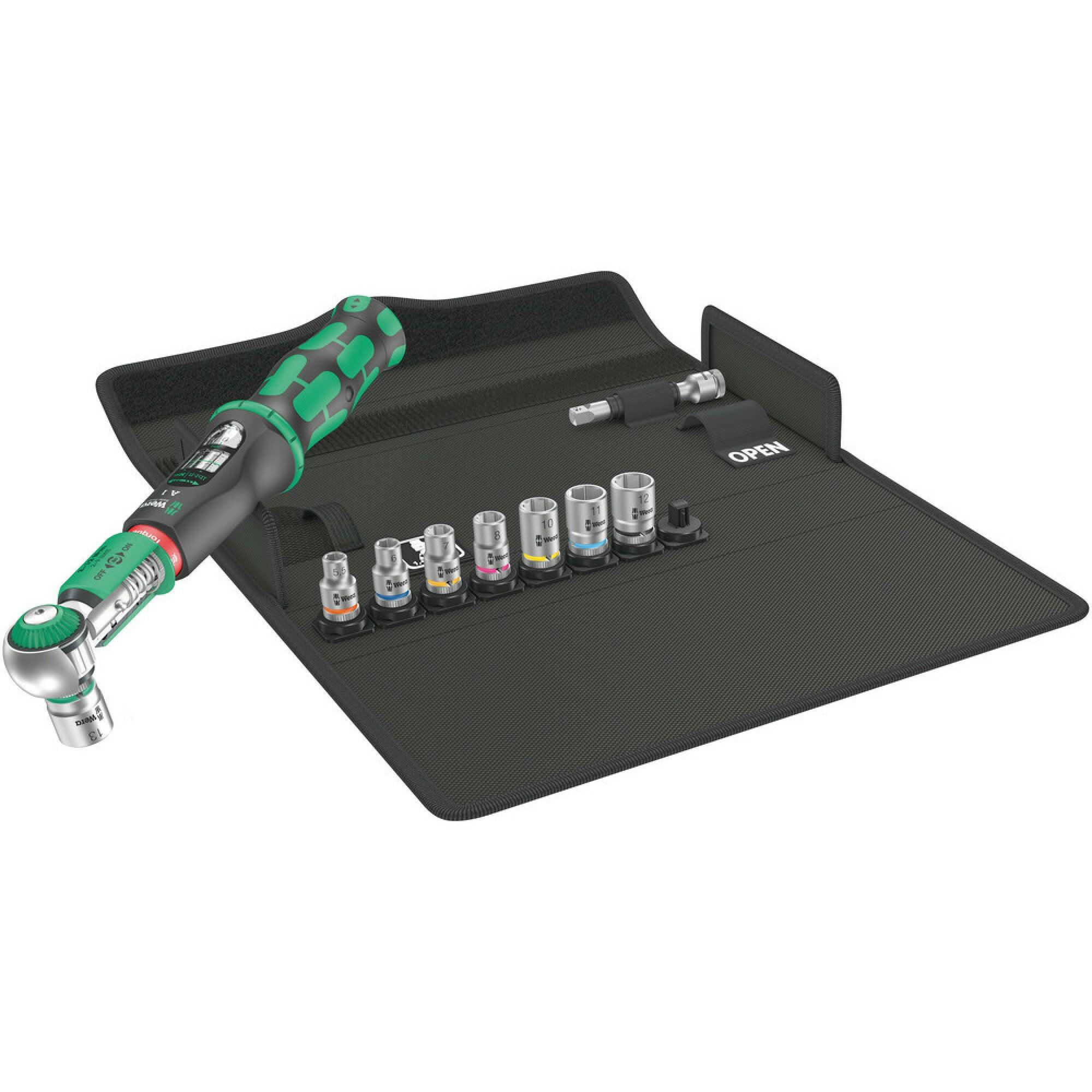

Sockets: 5.5 x 23 mm, 6 x 23 mm, 7 x 23 mm, 8 x 23 mm, 10 x 23 mm, 11 x 23 mm, 12 x 23 mm, 13 x 23 mm
Extension: 1/4" x 75 mm
Safe-Torque: 1/4" x 2-12 Nm
Drive Connector Size
1/4"
Torque Range Nm
2-12 Nm
Features

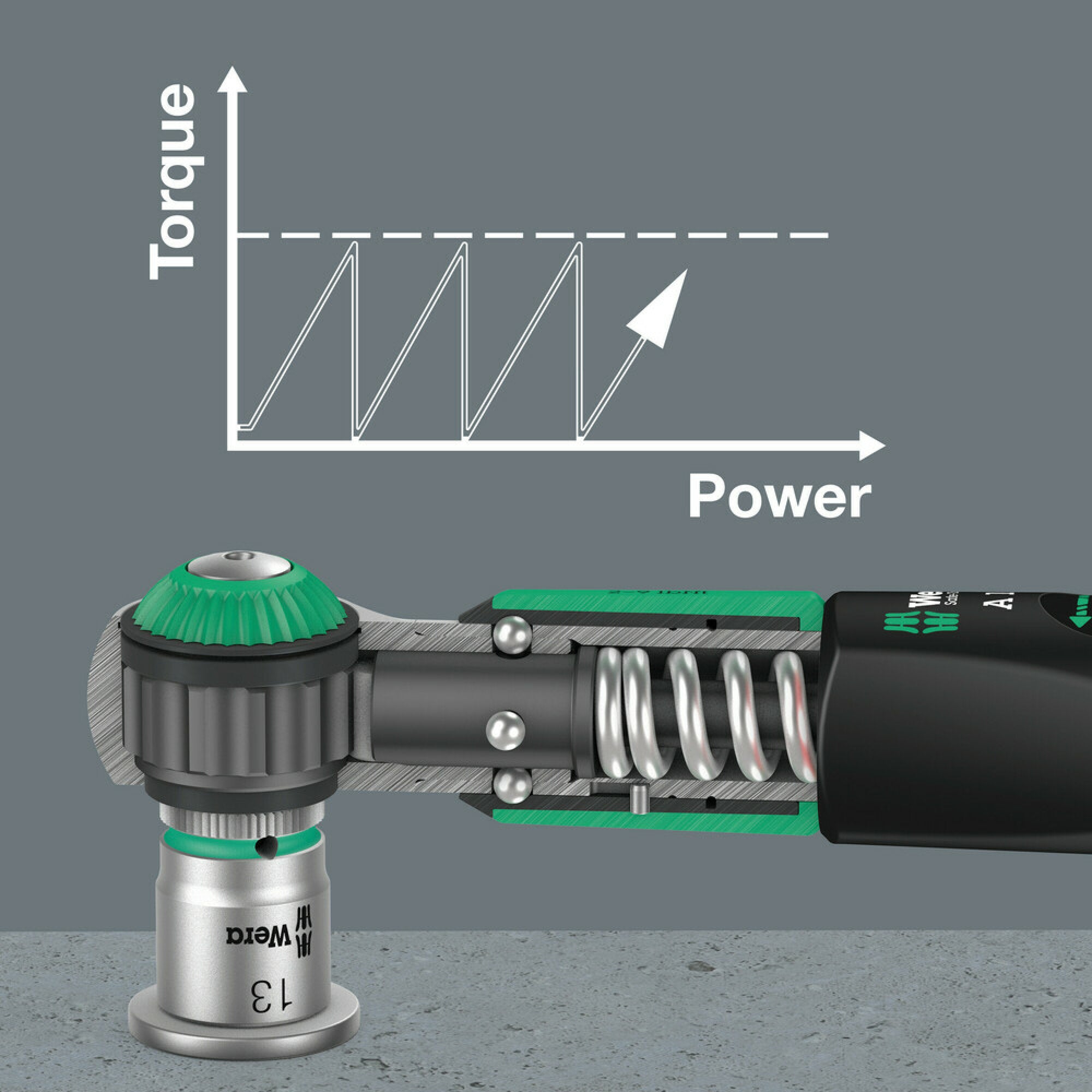

Slip-over release mechanism - the set torque can never be overtightened

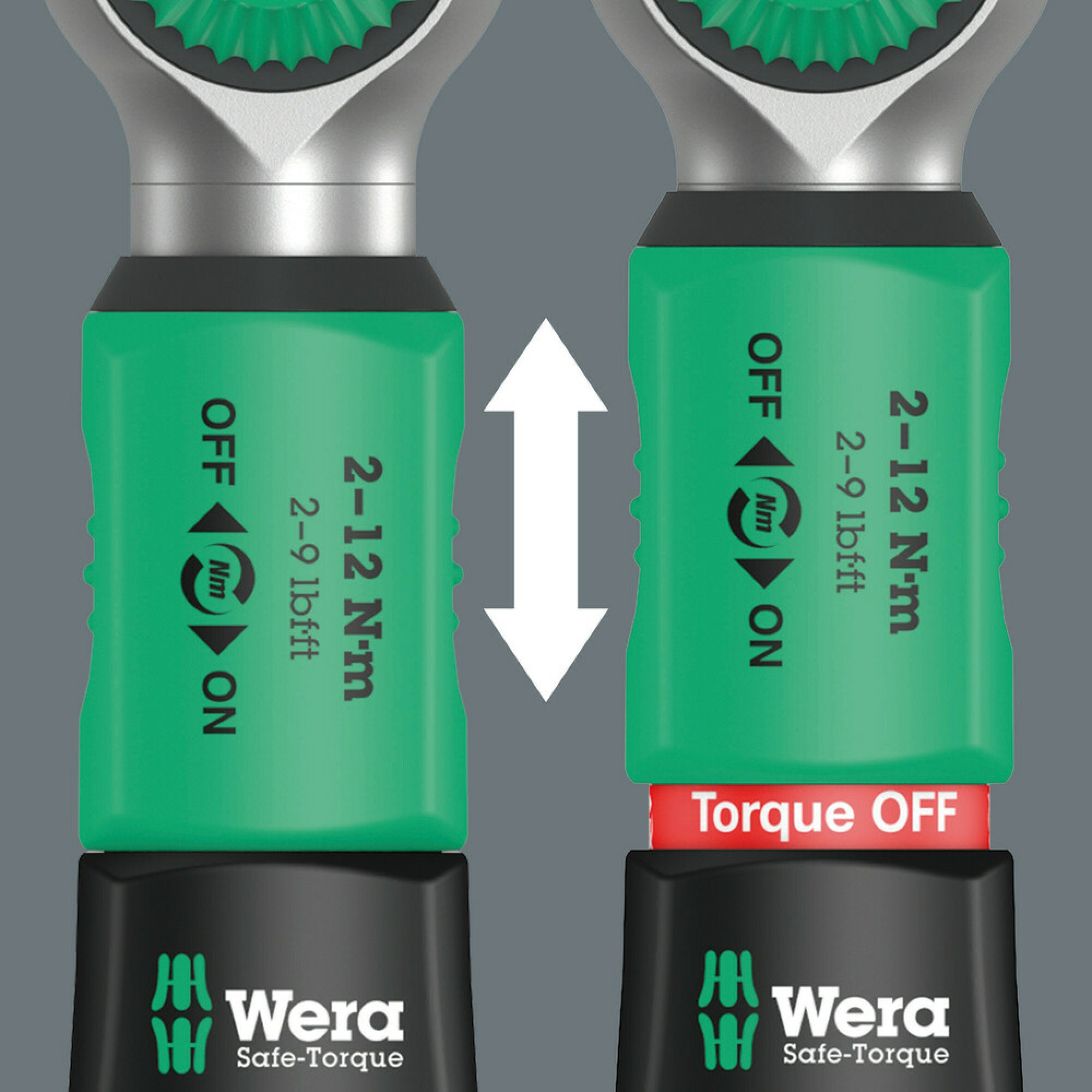

Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation

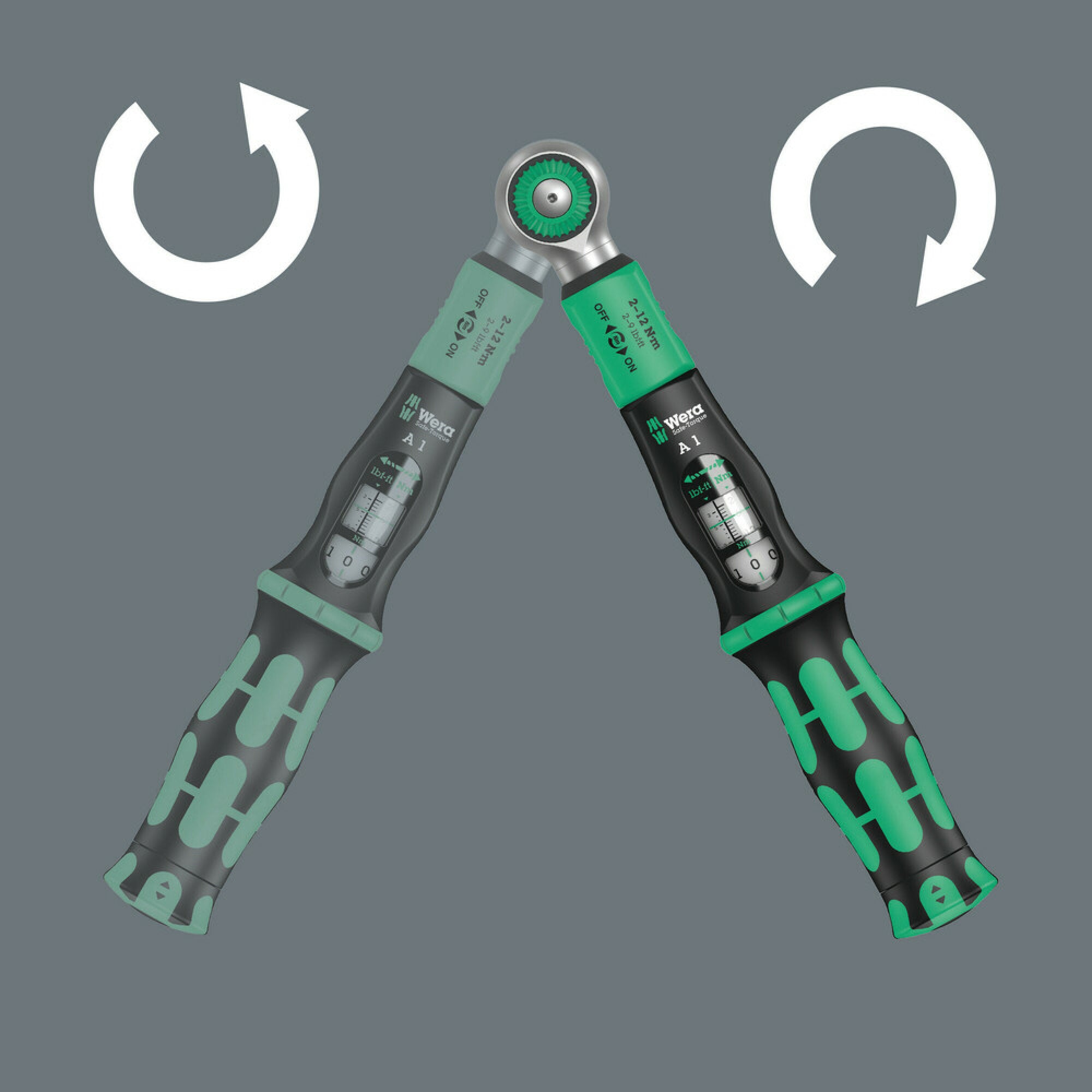

For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque

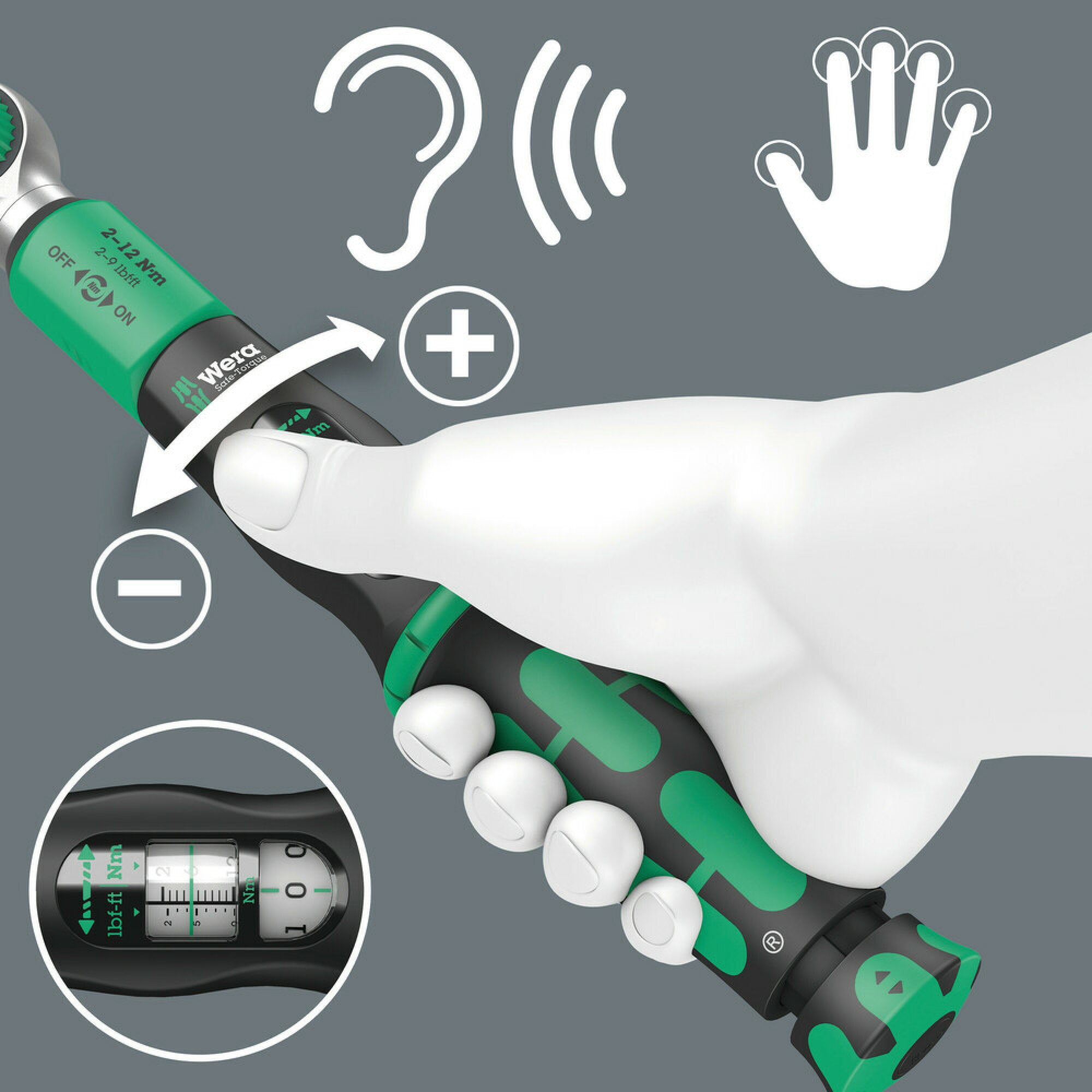

Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
After the target torque has been reached, the release angle is only 30°

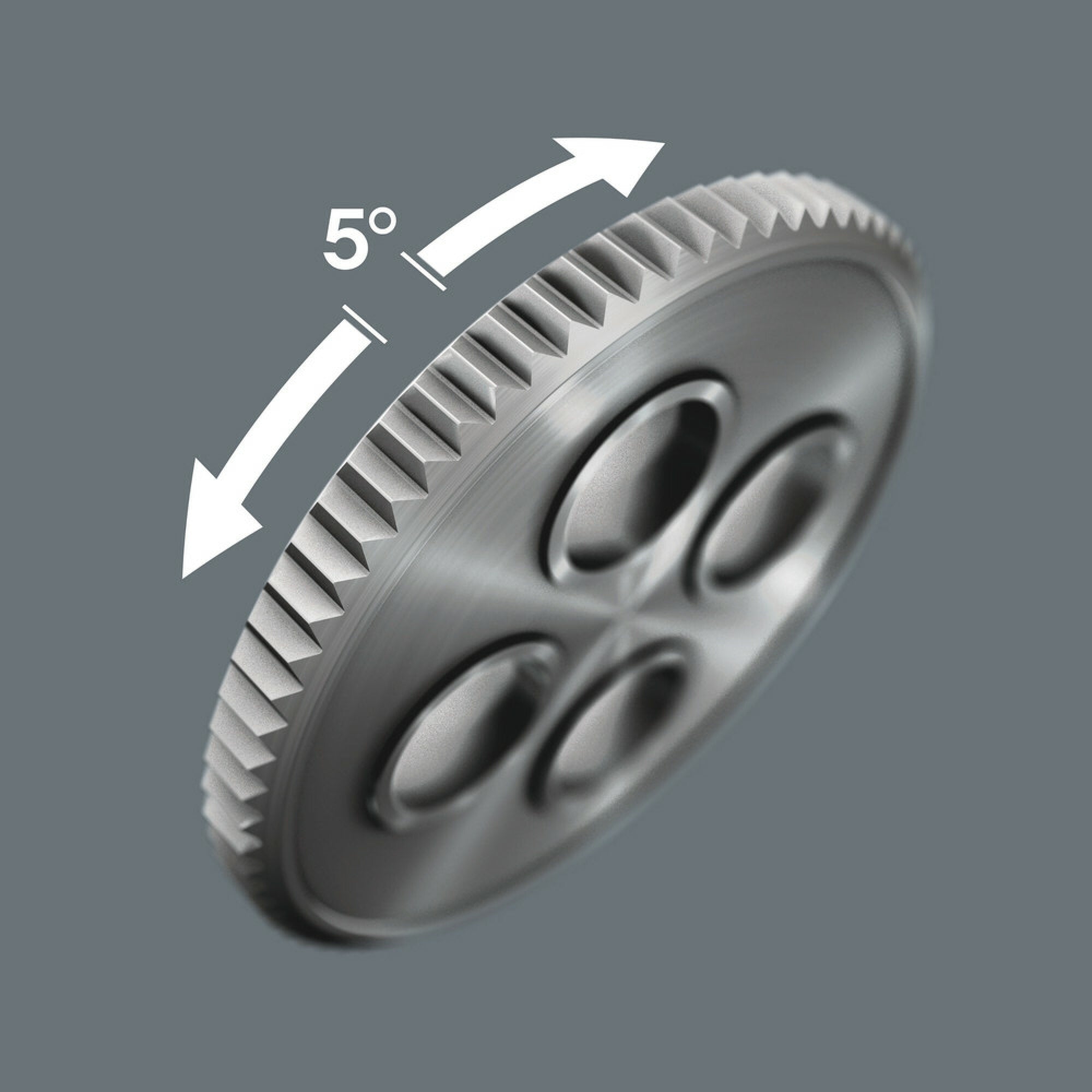

The fine toothing with 72 teeth allows for a low return angle of 5°
1/4" square head drive with socket locking
