About this item

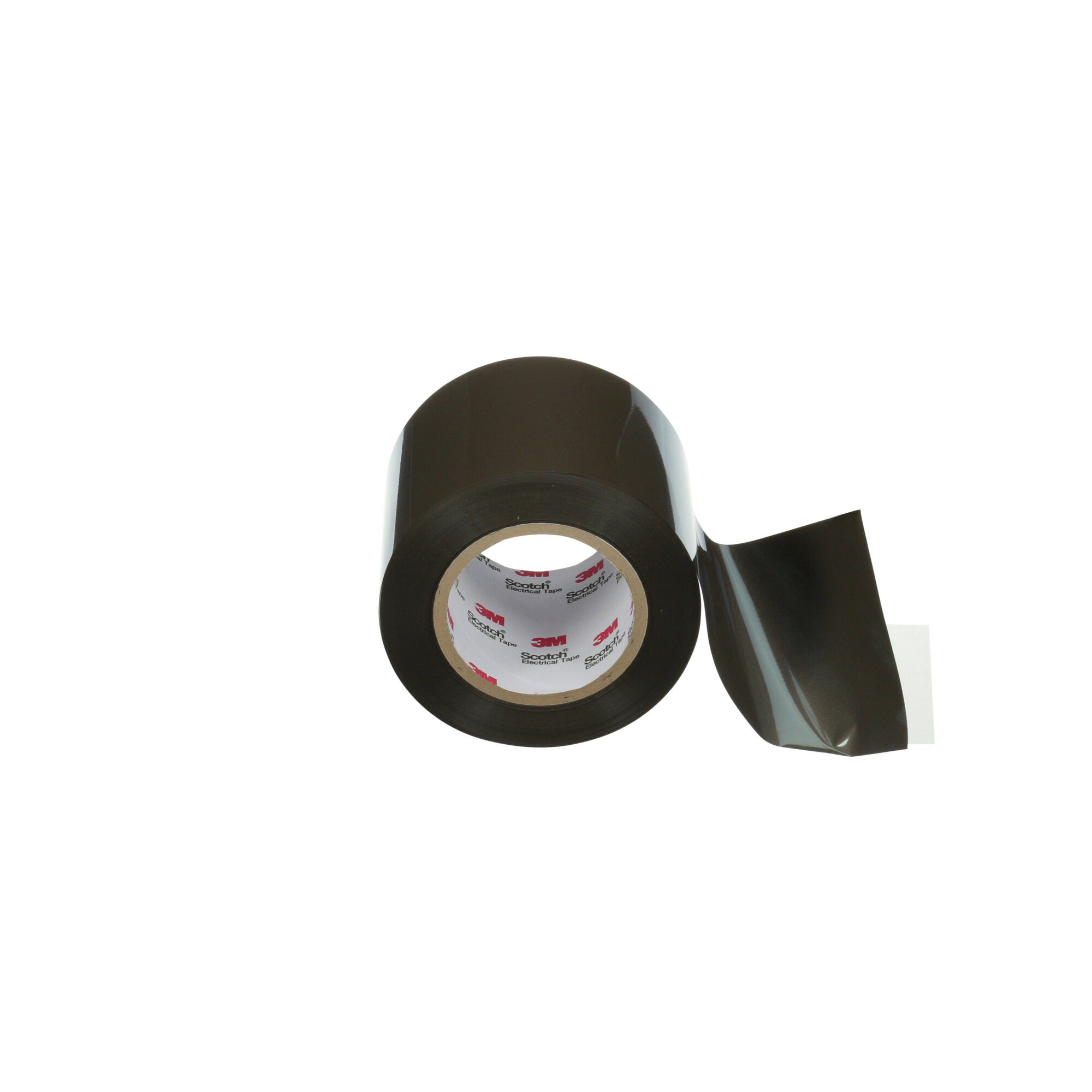

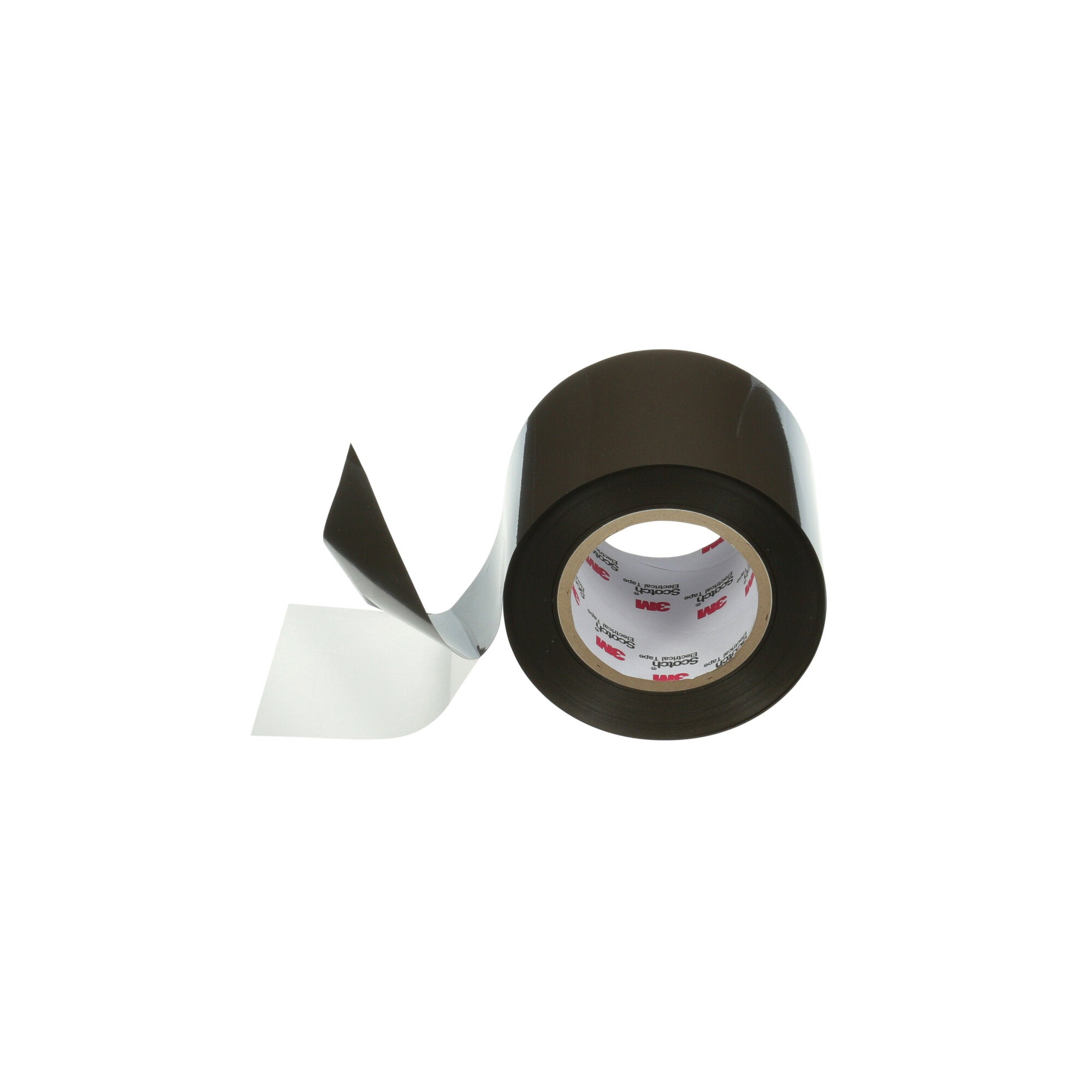

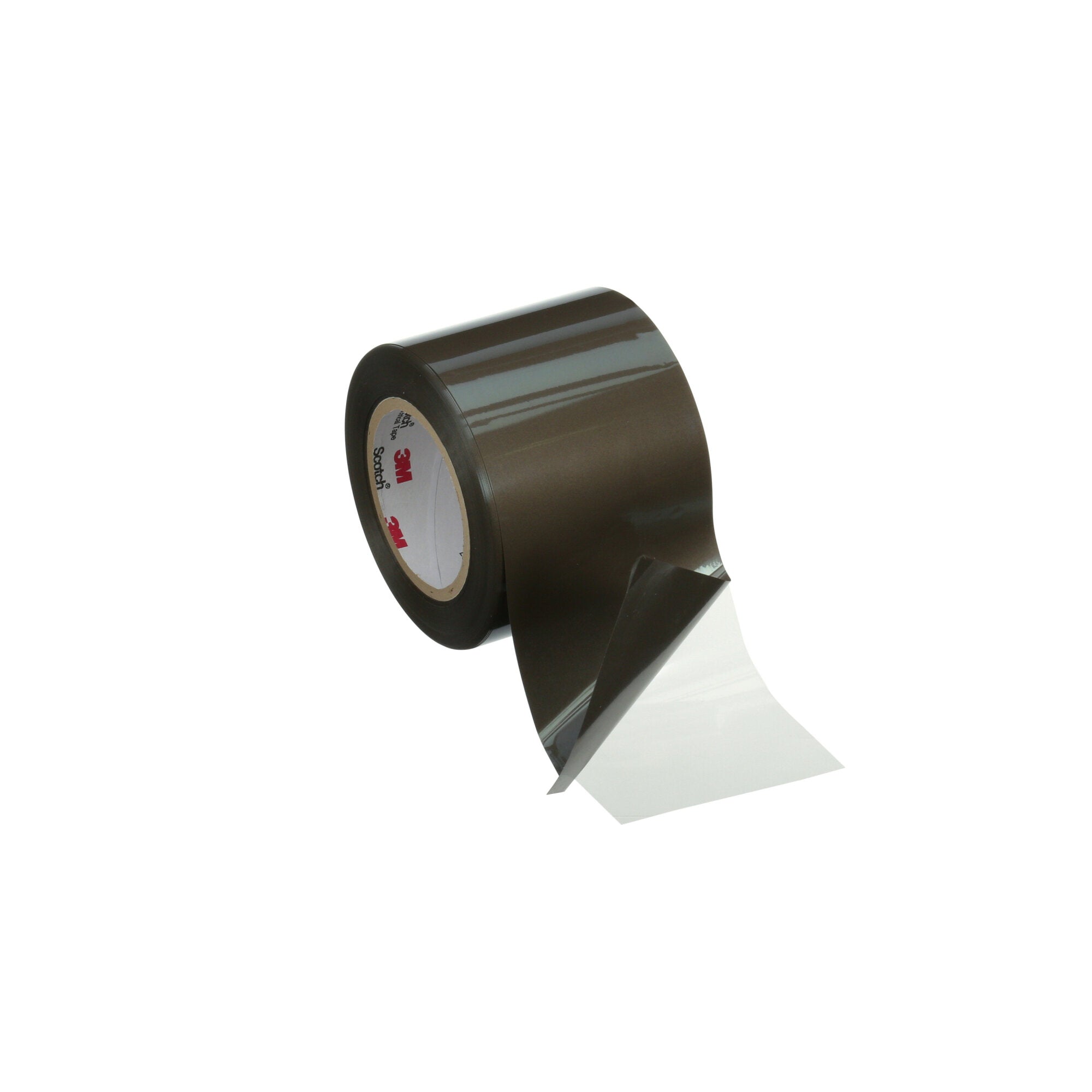

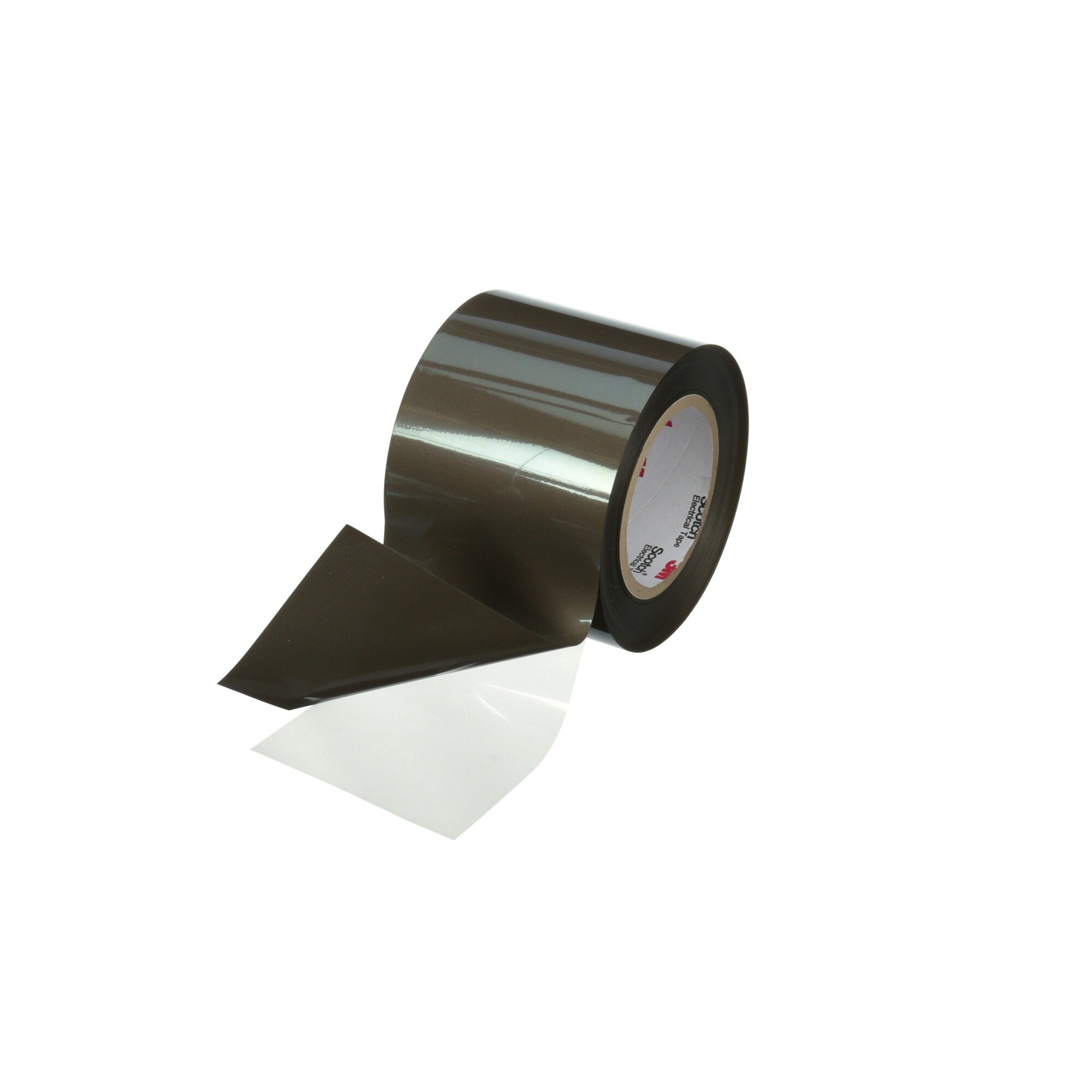

3M Electrically Conductive Adhesive Transfer Tape 9711S, 1060 mm x 100m, 150um
- 7100187613
- 3M
- Electronics Films & Tapes
Downloads
Datasheet
Key points
- XYZ-conductivity through the adhesive
- Excellent conformability and quick bonding
- Good EMI shielding in bond line gap
- Thicker construction to conform to non-flat surfaces
- Improved electrical contact to small size areas
- Good handling and workability
- Other thicknesses may be available upon request
Description
3M Electrically Conductive Adhesive Transfer Tape 9711S is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape. This double-sided tape has a nickel/copper-coated conductive woven fabric carrier. Designed for EMI shielding and grounding applications, enabling devices to meet electromagnetic compatibility requirements.3M™ Electrically Conductive Adhesive Transfer Tape 9711S has very high electrical conductivity, which provides low resistance for small contact areas and high frequencies. This tape has high adhesion and maintains low resistance over time, which provides excellent reliability in demanding environmental conditions. This tape provides robust protection against EMI in a range of market segments such as consumer electronics, automotive, medical devices, communication infrastructure, and aerospace & defense electronics.
Recommended Applications:
PCB/flex/chassis grounding
Bond line gap shielding
EMI shield & gasket attachment
Electrostatic discharge (ESD)
Passive intermodulation (PIM) management
From simple to complex designs, our family of shielding and grounding solutions provides protection against EMI. Our solutions provide excellent adhesion to a variety of substrates including metals and plastics. These tapes are easy to apply using low pressure without heat, enhancing productivity. We have multiple thicknesses available to meet even the most space constrained and complex design requirements.
