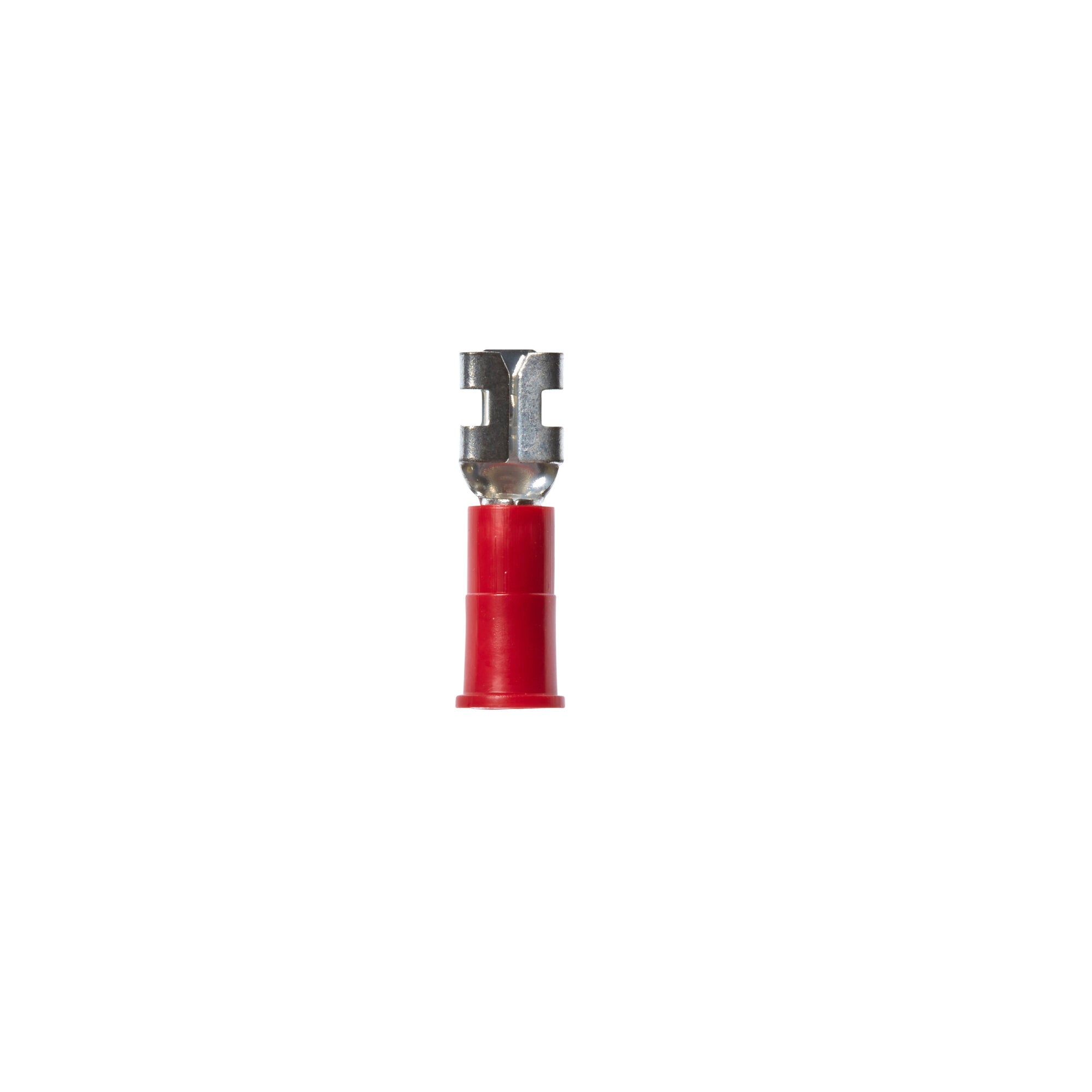

3M Highland Vinyl Insulated Female Disconnect Terminal FDV18-187Q, AWG22-18

3M Highland Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Highland™ Vinyl Insulated Butted Seam Female Disconnect attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Disconnect Type
Female
Terminal Style
Standard
Terminal Type
Disconnect
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.085 Inch
Barrel Length (Imperial)
0.25 Inch
Connection Width (Imperial)
0.187 in
Connection Width (Metric)
4.75 mm
Mates With Female Width
0.187 Inch
Mates With Male Tab Width (W')
0.187 Inch
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Maximum Insulation Outer Diameter (Imperial)
0.145 in
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Overall Length (Imperial)
0.78 in
Pad Width
0.187 in
Tab Width
0.187
Barrel Length Imperial
0.25 Inch
Conductor Sizes Imperial
22 - 18 AWG
Overall Length Imperial
0.78
Other Details
CSA File Number
LR22190
Fastener Orientation
Female
UL File Number
E70512
Material and Composition
Insulation Material
Vinyl
Packaging and Shipping
Packaging
25 per bag
