3M Scotchlok Locking Fork Vinyl Insulated, MV14-10FLX

by 3M
No reviews
Original price $51.99 - Original price $51.99
Original price
$51.99
$51.99 - $51.99
Current price $51.99
Free shipping
3M Scotchlok Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221... Read more
Please allow 2 days for production.

Overview

3M

3M Scotchlok Locking Fork Vinyl Insulated, MV14-10FLX

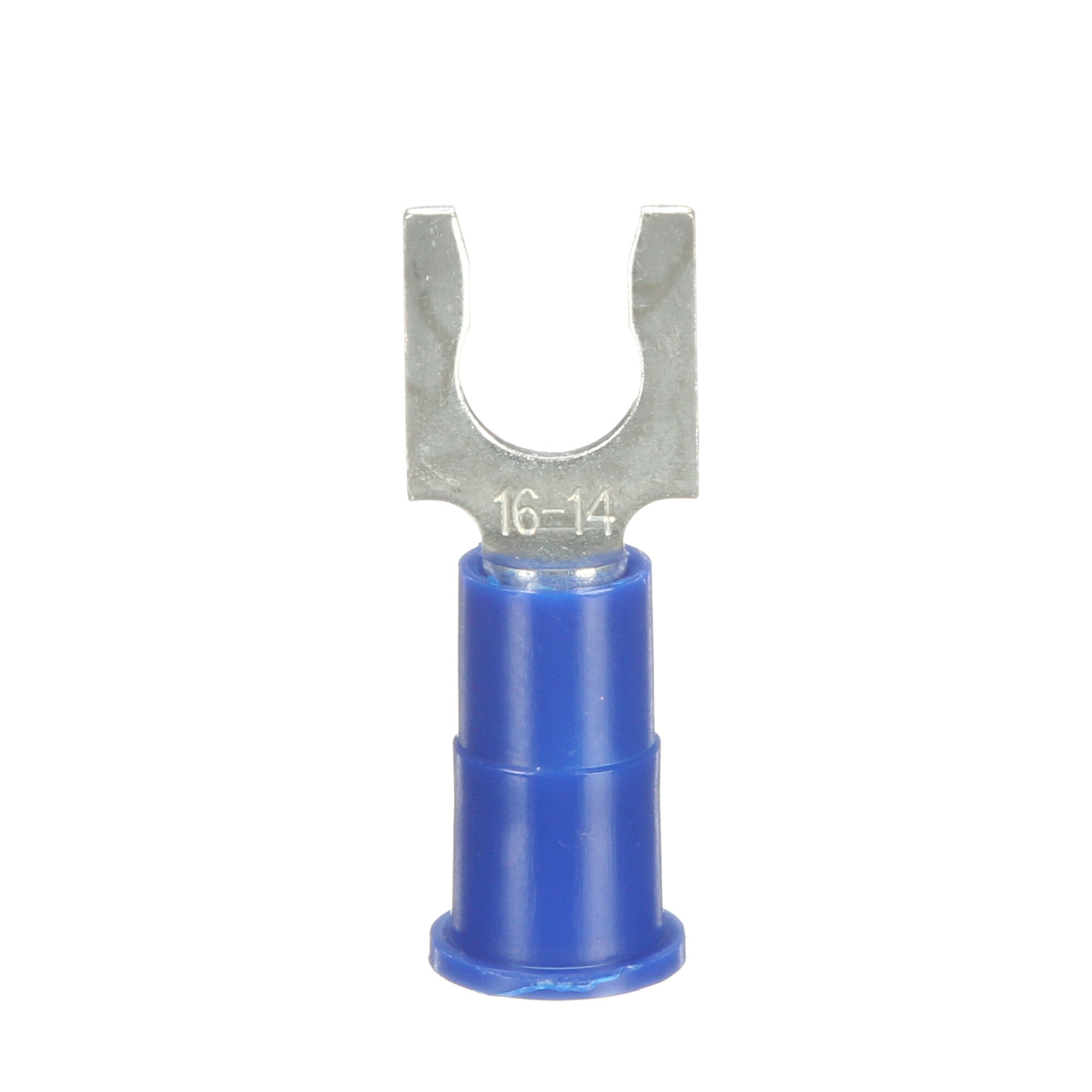

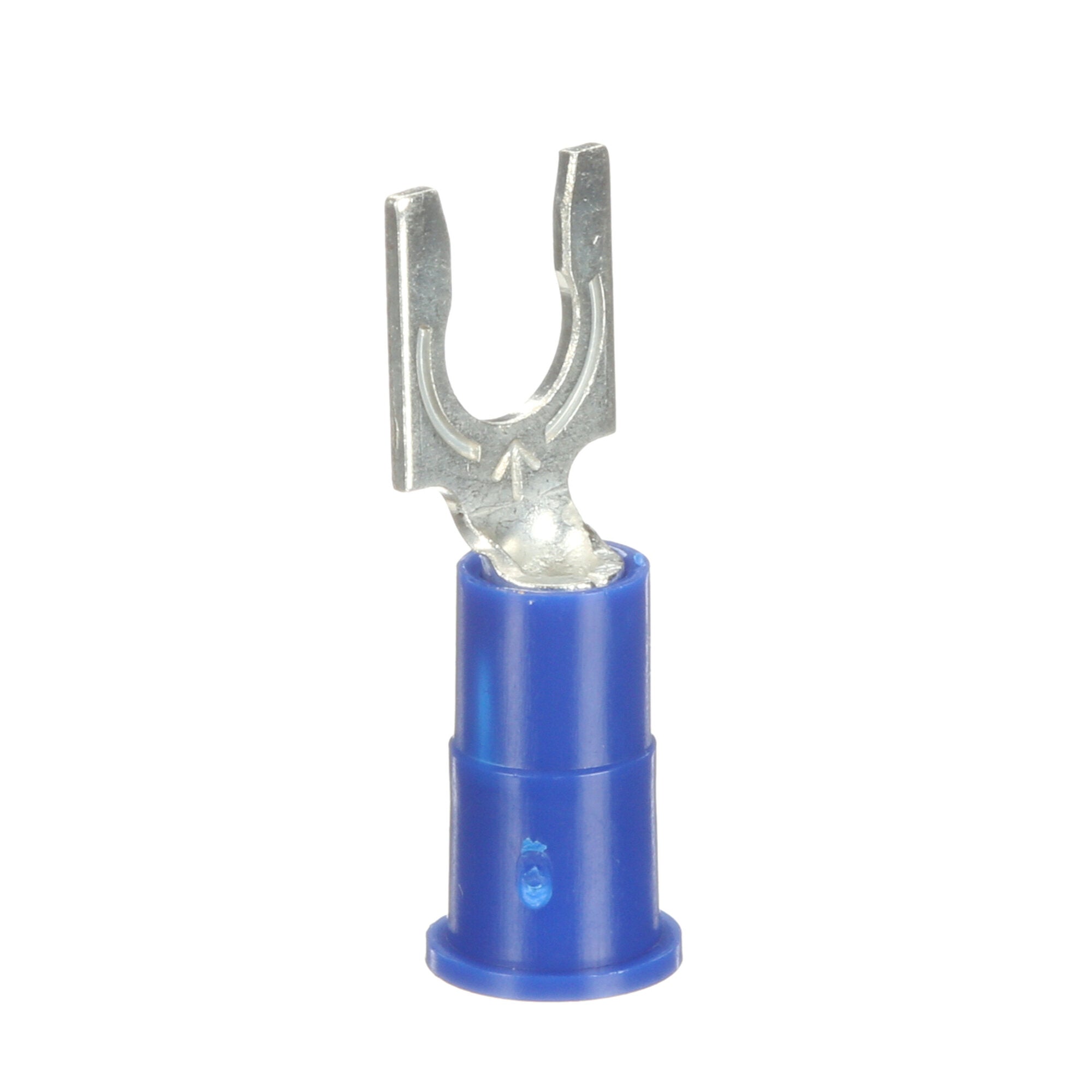

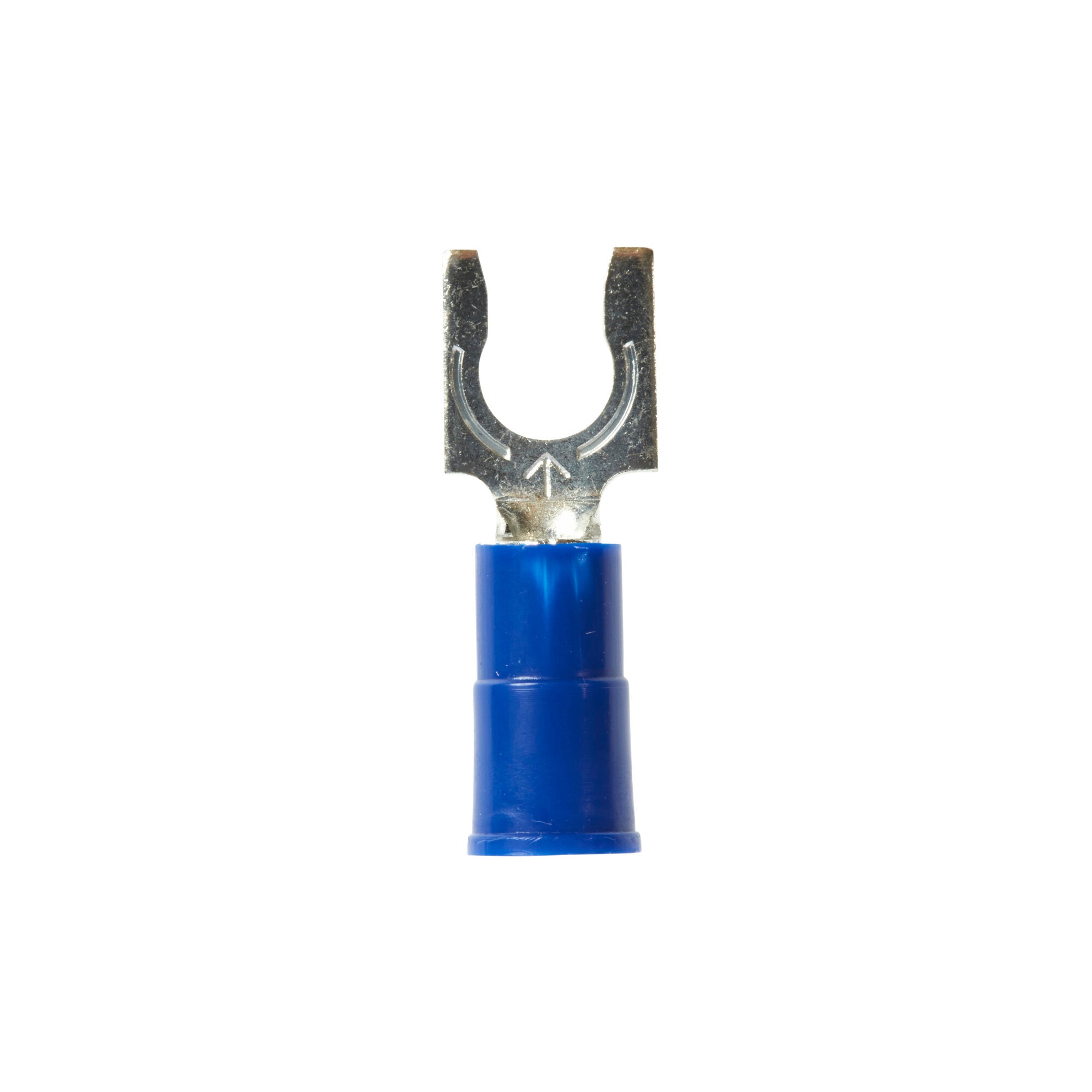

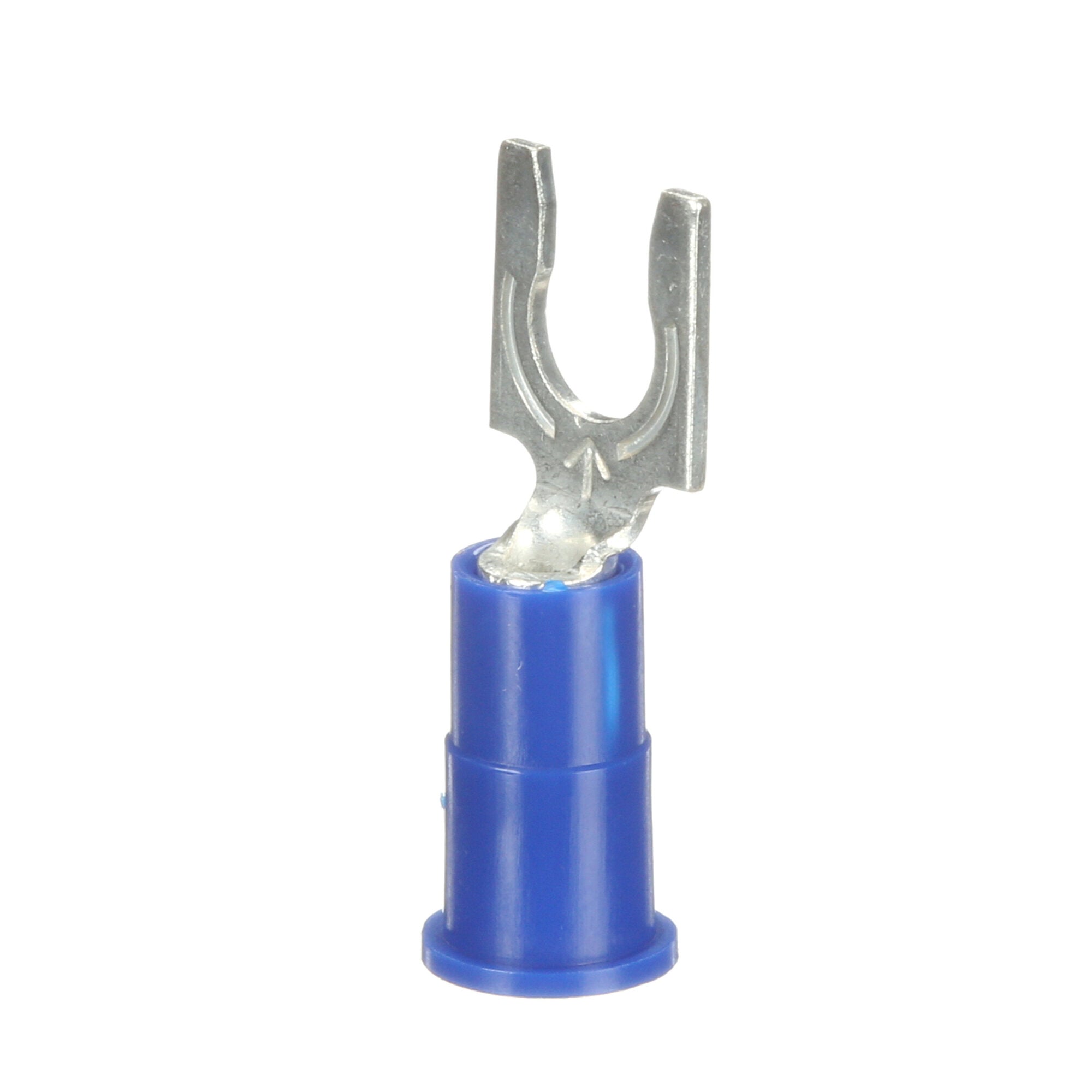

3M Scotchlok Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

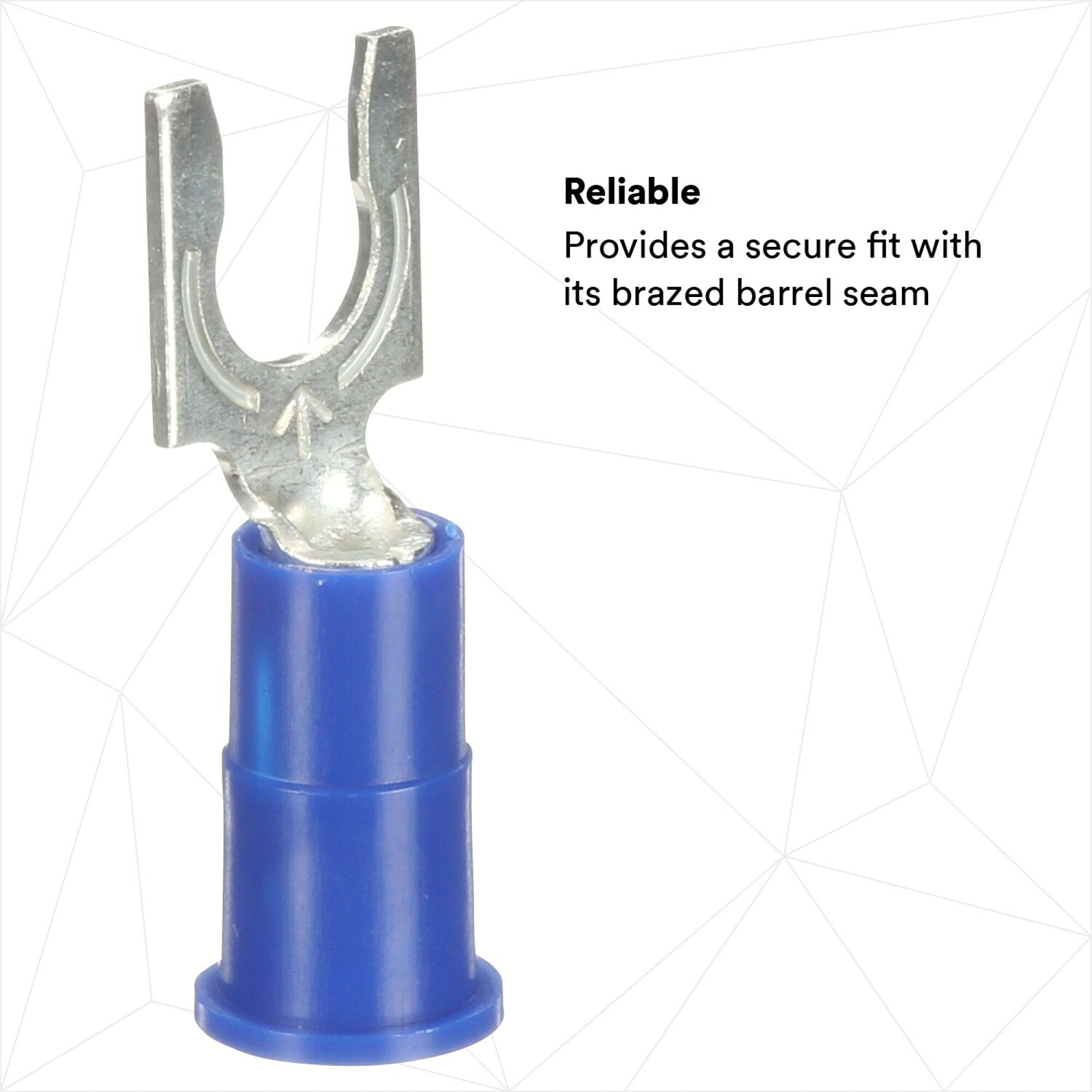

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

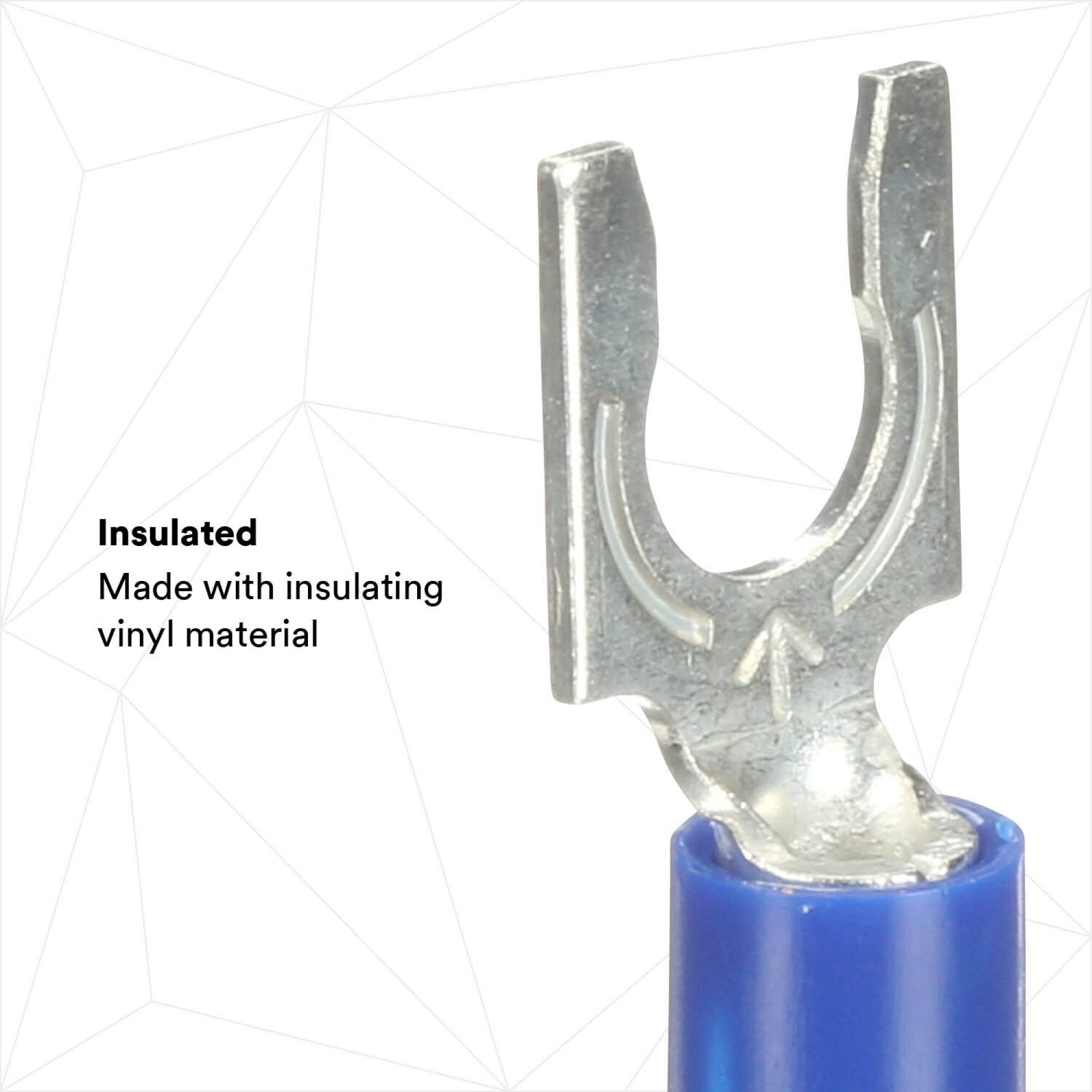

  • Spring-like tongue firmly fits around the stud

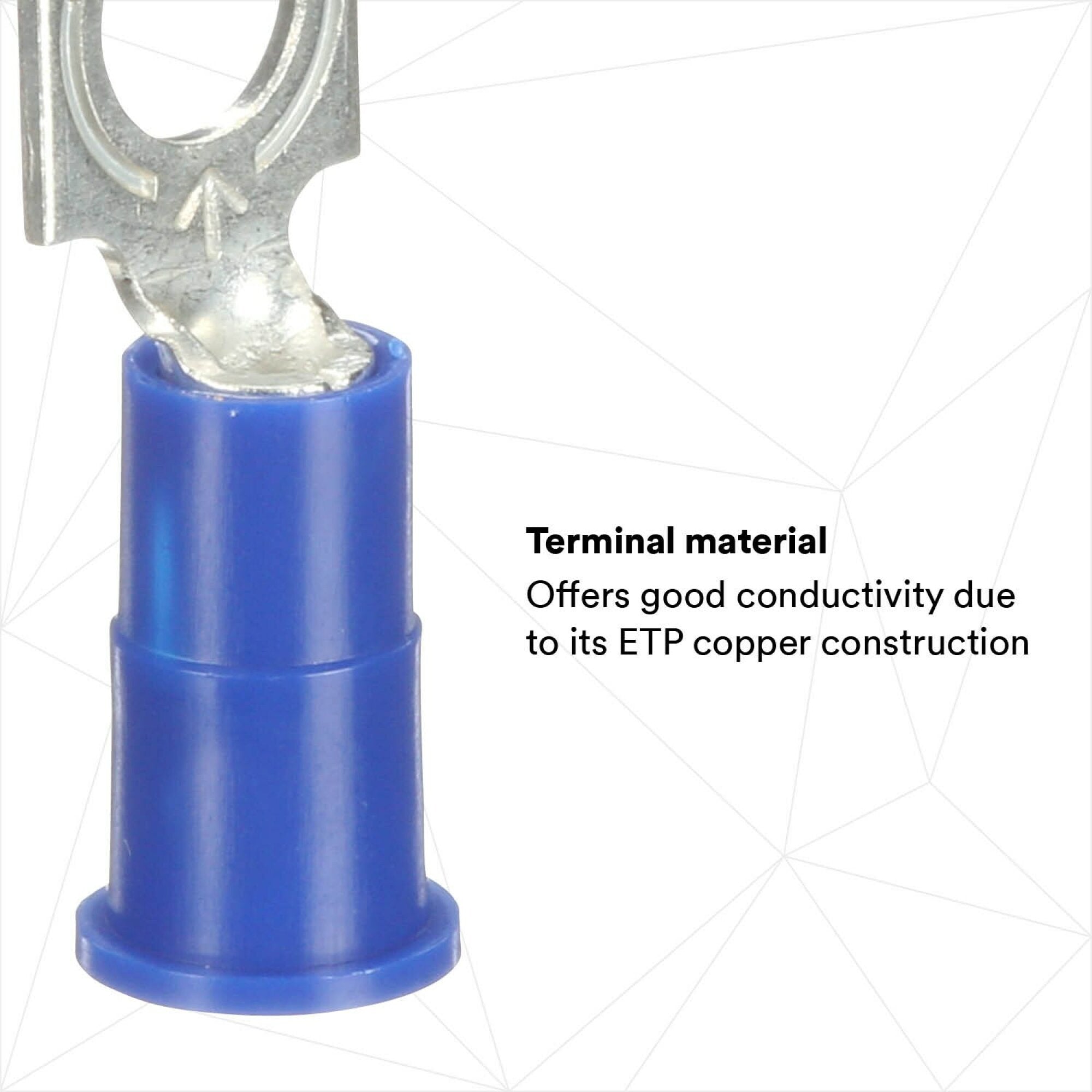

  • Electrolytic copper construction offers good conductivity

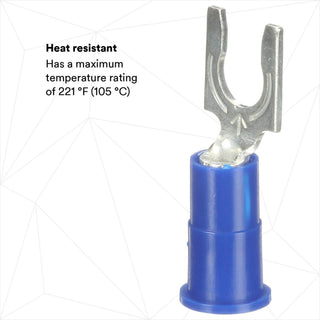

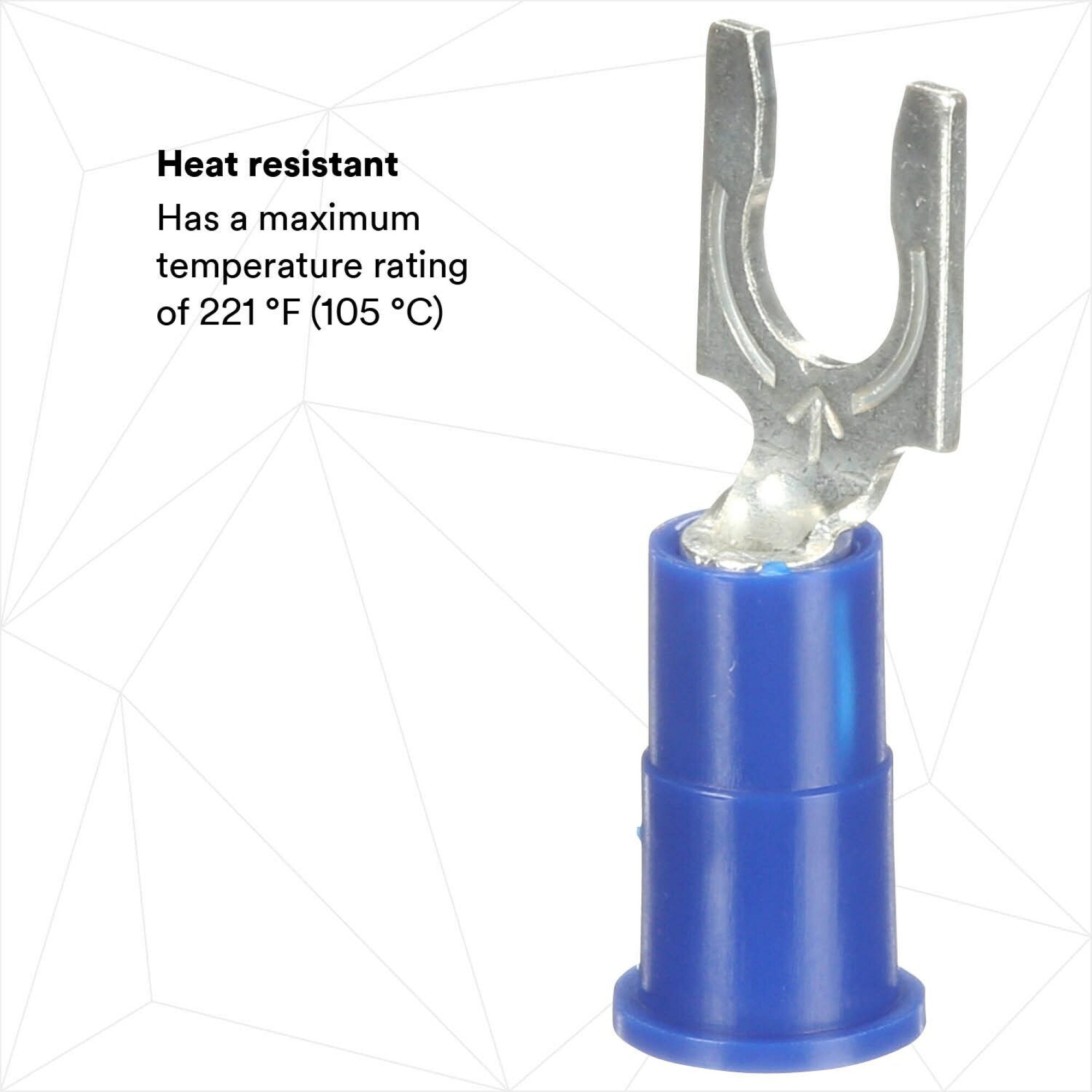

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Brazed
Fork Type
Locking
Terminal Style
Locking
Terminal Type
Fork
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.090 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Lock Width
0.35 Inch
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
0.88 in
Overall Length (Metric)
22.35 mm
Overall Width (Imperial)
0.32 in
Overall Width (Metric)
8.12 mm
Stud Diameter (Imperial)
0.19685 in
Stud Diameter (Metric)
5 mm
Stud Size
#10
Stud Sizes
#10
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.08 mm²
Maximum Insulation Outer Diameter Metric
3.7
Minimum Conductor Size Imperial
16 AWG
Minimum Conductor Size Metric
1.31 mm²
Overall Length Imperial
0.88
Other Details
CSA File Number
LR22190
Clearance (C)
0.25 Inch
Dimension E
0.70 Inch
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E23438
Units Per Case
500.0
Material and Composition
Insulation Material
Vinyl
Material
Plastic
Color and Appearance
Product Color
Blue
Packaging and Shipping
Packaging

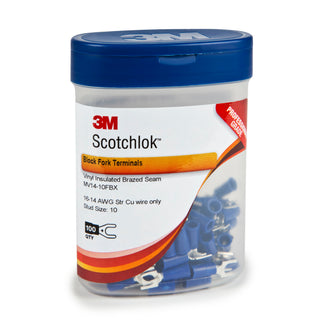

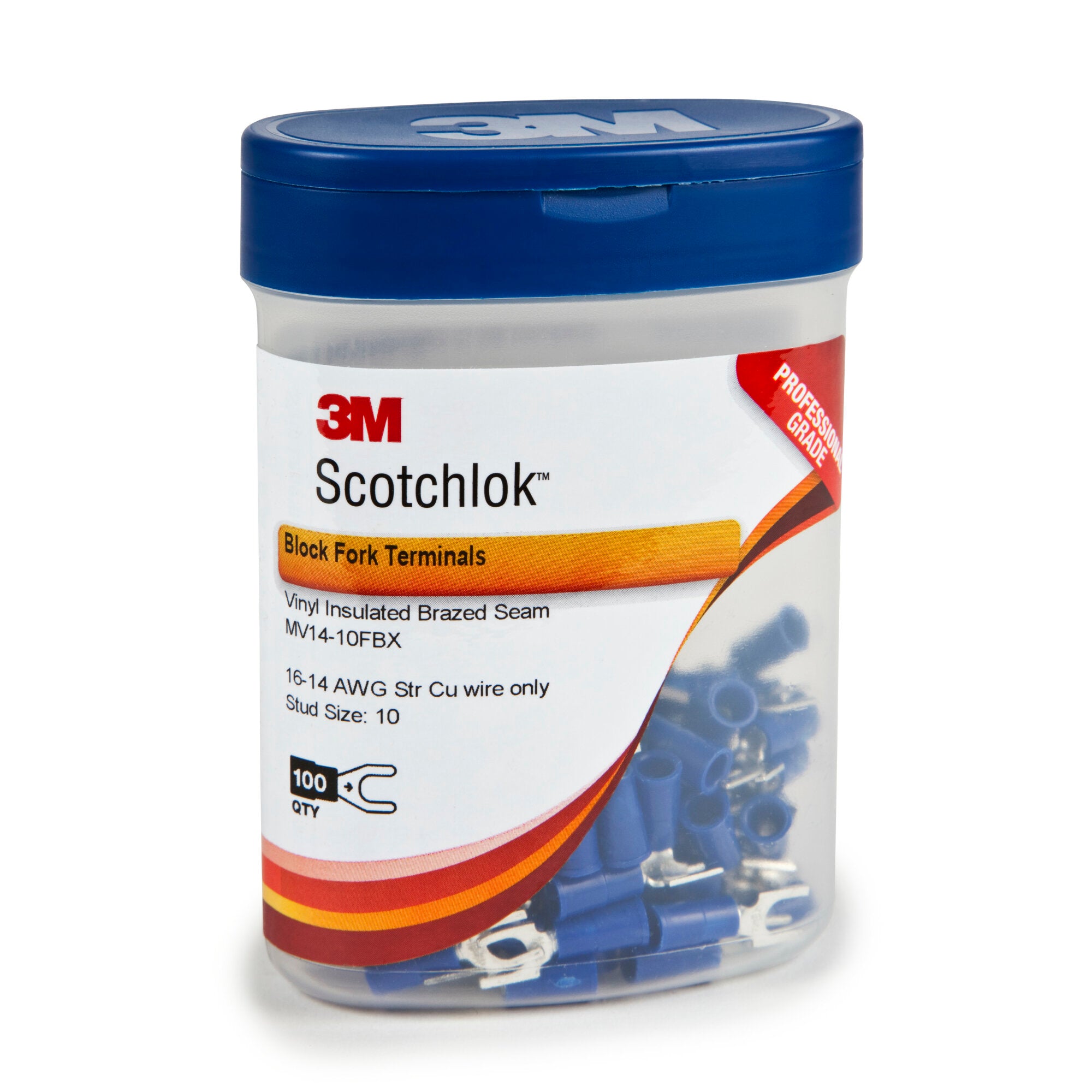

100 per bottle
