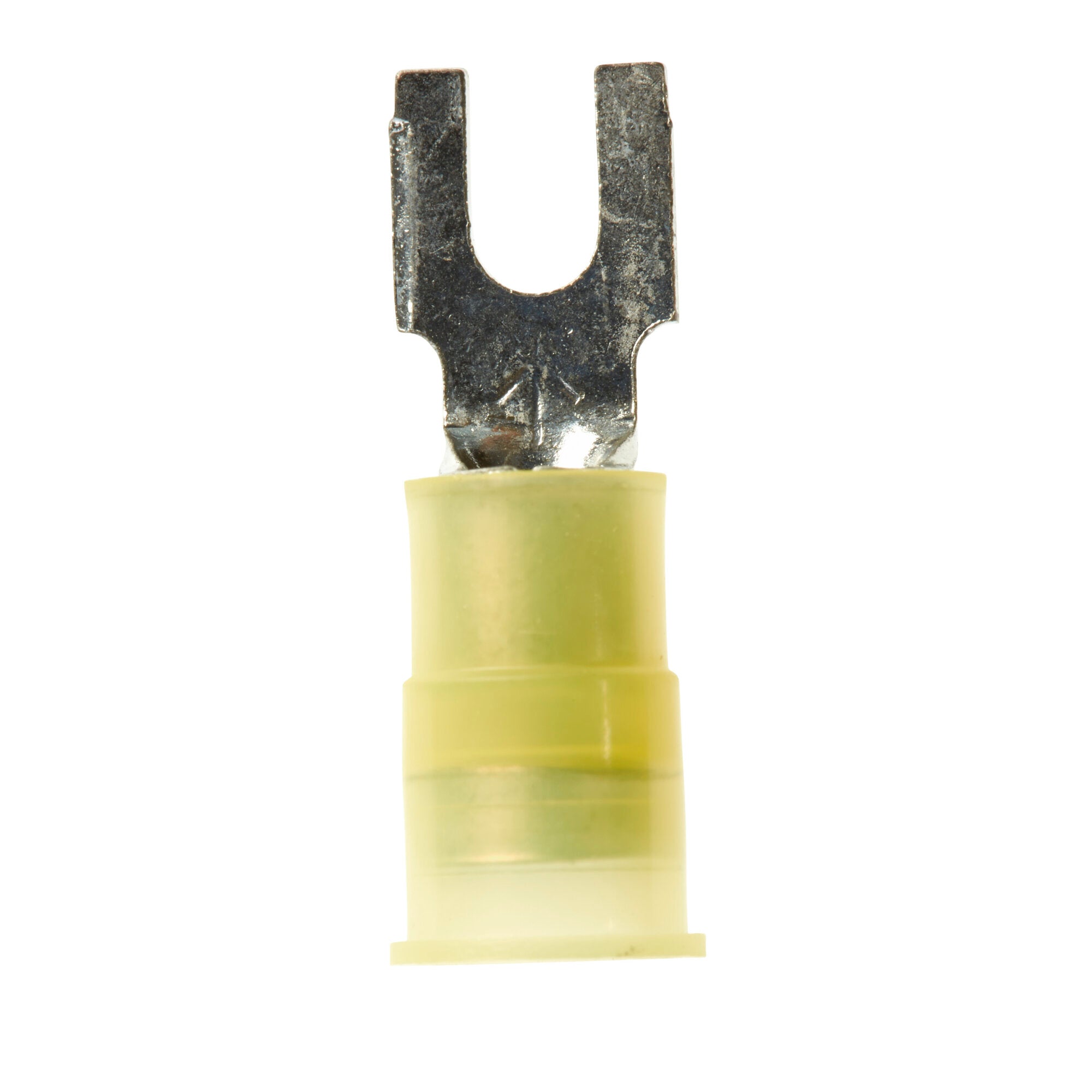

3M Scotchlok Nylon Insulated w/Insulation Grip Block Fork TerminalMNG10-6FBK

by 3M
No reviews
Original price $225.99 - Original price $225.99
Original price
$225.99
$225.99 - $225.99
Current price $225.99
Free shipping
3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221... Read more
This product is made to order. Please allow 8 days for production.

Overview

3M

3M Scotchlok Nylon Insulated w/Insulation Grip Block Fork TerminalMNG10-6FBK

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Fork Type
Block
Terminal Style
Block
Terminal Type
Fork
Country Of Origin
United States
Lead Time
8 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.135 Inch
Maximum Conductor Size (Imperial)
10 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Maximum Insulation Outer Diameter (Imperial)
0.25 in
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
1.03 in
Stud Diameter (Imperial)
0.138 in
Stud Diameter (Metric)
3.505 mm
Stud Size
#6
Maximum Conductor Size Imperial
10 AWG
Maximum Conductor Size Metric
5.26 mm²
Minimum Conductor Size Imperial
12 AWG
Minimum Conductor Size Metric
3.31 mm²
Overall Length Imperial
1.03
Other Details
Clearance (C)
0.29 Inch
Dimension E
0.84 Inch
Insulated
Yes
Units Per Case
500.0
Material and Composition
Insulation Material
Nylon with Insulation Grip
Material
ETP Copper
Packaging and Shipping
Packaging
500 per bulk box
