3M DMD100 High Performance Flexible Laminate 3-5-3, 39.4" width

Features

3M DMD High Performance Flexible Laminate is designed for insulating and protecting electrical equipment. It offers excellent dielectric and varnish absorption characteristics while ensuring low moisture absorption. 3M DMD High Performance Flexible Laminate is ideal for slot cell, phase and wedge insulation. The conjunction of the inorganic filled resin system and 2 layers of the polyester film make this laminate suitable for major high temperature applications. It exhibits optimized thermal conductivity, long term voltage endurance and coil bonding characteristics. The tear initiation and cut through resistant polyester film reinforcement are excellent for automatic insertion and heavy duty winding operations.It can be used in electrical insulation systems up to Class 220(R) per UL 1446 and IEC Std. 60085. 3M Innovative Paper Technologies UL Recognized Insulation Systems may be found on UL’s Electrical Insulation Systems database at http.//database.ul.com/systems/.

• Tear-resistant, polyester film offers high mechanical strength
• Offers good dielectric stability and high thermal conductivity

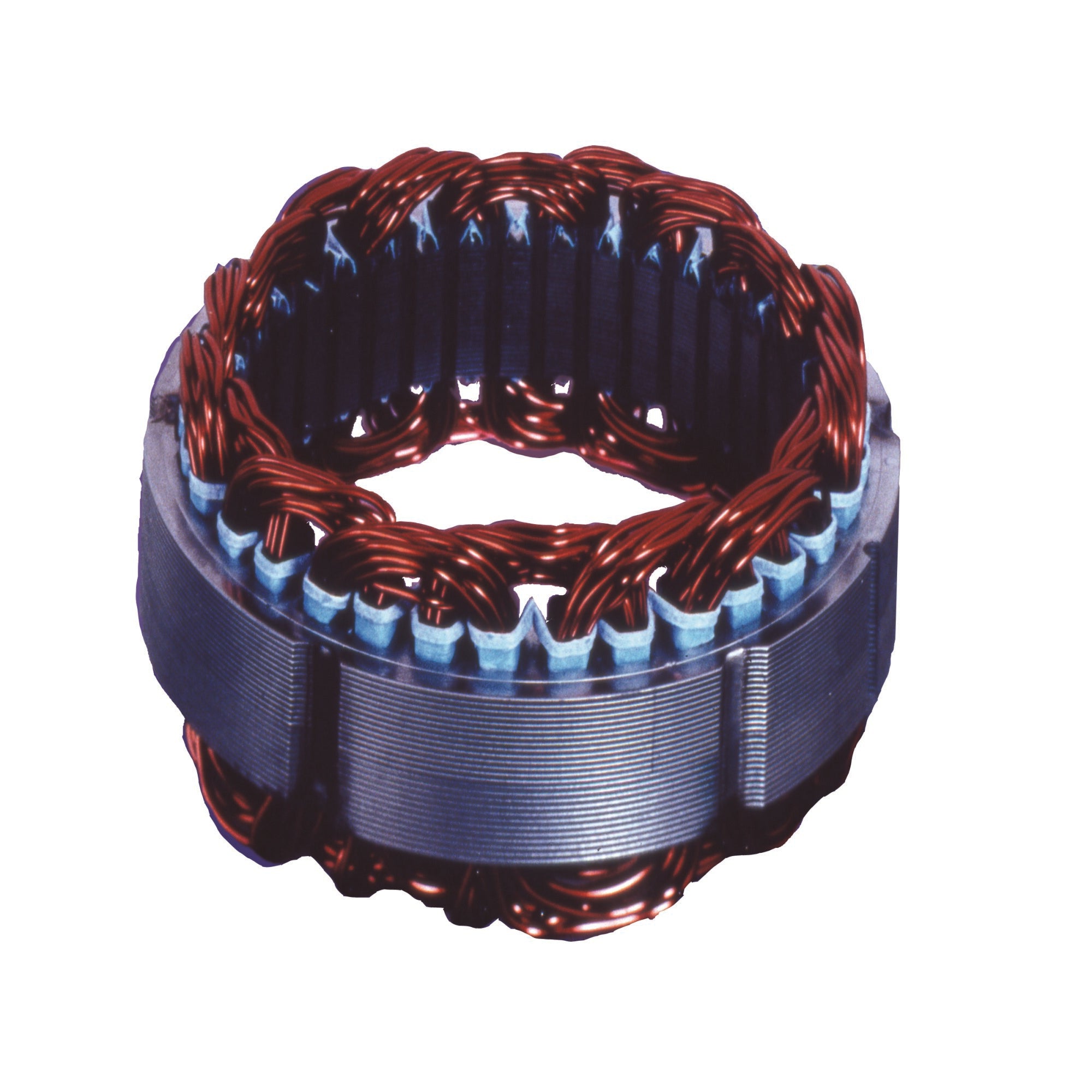

• Ideal for slot cell, phase, wedge, ground and layer insulation
• Specially formulated non-woven paper is bonded to polyester film on both the sides
• Suitable for high-temperature electrical insulation applications rated up to Class 180(H)
• Found in 3M UL Recognized Insulation Systems
