3M Polyester Film Electrical Tape 56

3M Polyester Film Electrical Tape 56

by 3M
$500.99 - $500.99
$500.99
$500.99 - $500.99
$500.99
Free shipping
Extended Handling May Be Required
3M Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of... Read more
This product is made to order.

Overview

3M

3M Polyester Film Electrical Tape 56

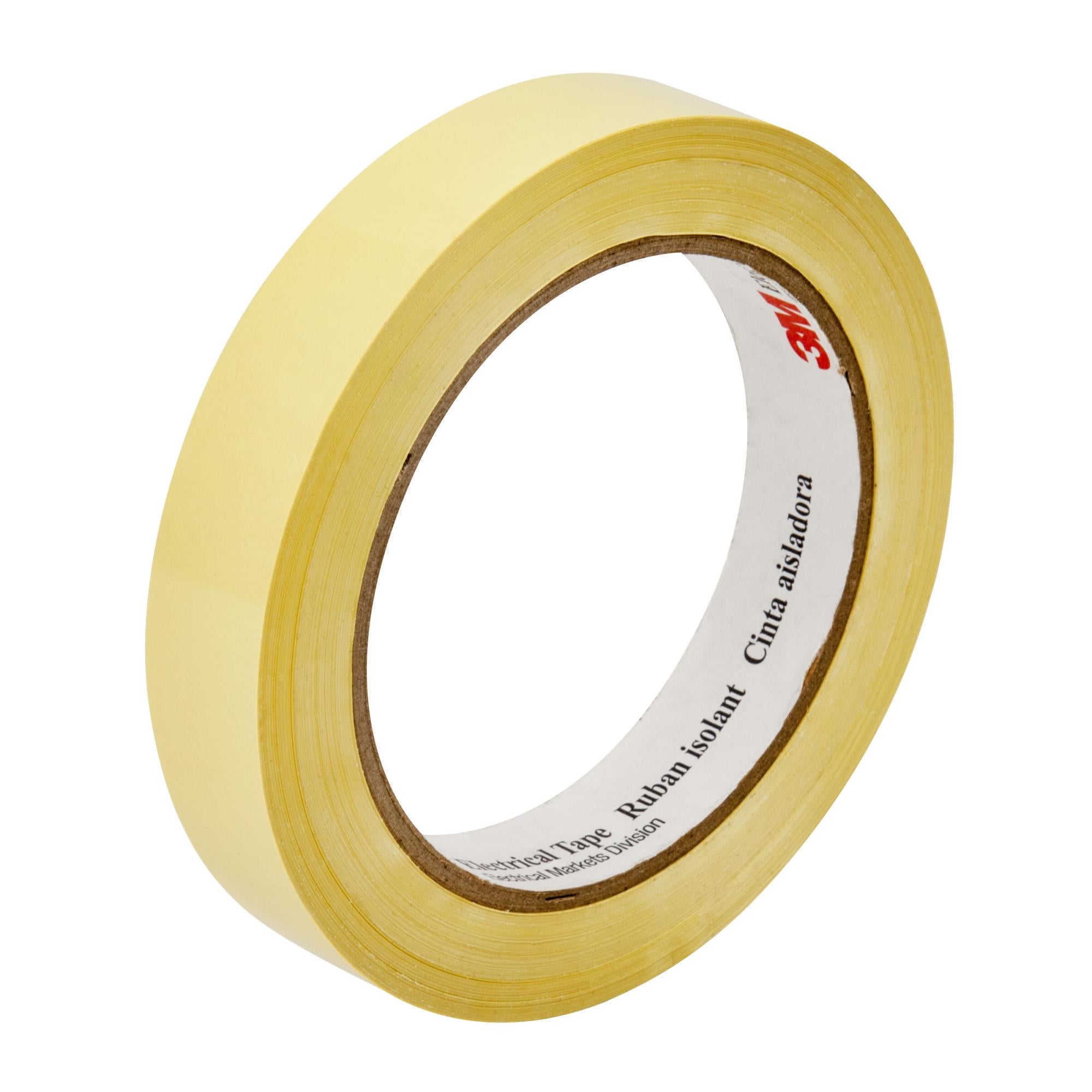

3M Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 F (0 to 130 C).3M™ Polyester Film Electrical Tape 56 is highly conformable with a thermosetting, rubber adhesive. This tape has a polyester film backing and offers excellent resistance to chemicals, solvents, moisture, abrasion and cut through. UL Listed and RoHS 2011/65/EU Compliant.
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Suitable for use as a coil cover and as layer insulation
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Adhesive Type
Thermosetting Rubber
Country Of Origin
Mexico
Sold As
Case
California Residents
Proposition 65 Warning
Dimensions and Specifications
Overall Length (Imperial)
72 yd
Overall Length (Metric)
65.83 m
Overall Width (Imperial)
15.5 in
Overall Width (Metric)
393.7 mm
Total Tape Thickness Without Liner (Imperial)
2.5 mil
Total Tape Thickness Without Liner (Metric)
0.064 mm
Overall Length Imperial
72.0
Width
8.1 in
20.57 cm
Height
8.1 in
20.57 cm
Length
19.7 in
50.04 cm
Volume
1292.52 cubic inch
21180.56 cm3
Weight
6.4 lb
2.9 kg
Other Details
Elongation At Break
100.0 %
Material and Composition
Backing (Carrier) Material
Polyester
Backing Carrier Material
Polyester
Shelf Life
1825
Color and Appearance
Product Color
Yellow
Certifications and Standards
Specifications Met
RoHS 2011/65/EU
Resources
Datasheet
