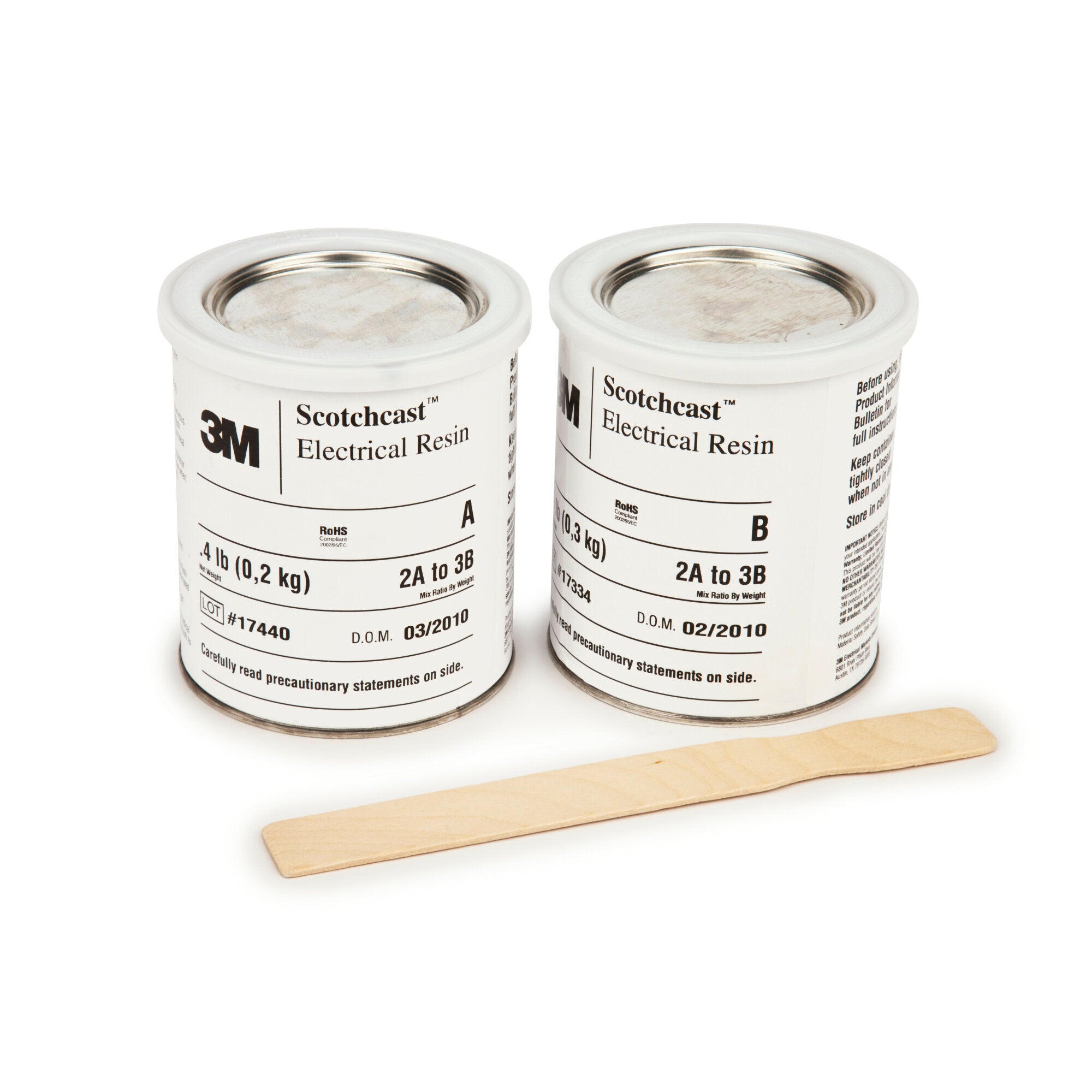

3M Scotchcast Electrical Resin 3 (10 lb)

3M Scotchcast Electrical Resin 3 (10 lb)

by 3M
$315.98 - $315.98
$315.98
$315.98 - $315.98
$315.98
Free shipping
Extended Handling May Be Required
3M Scotchcast Resin 3 is a 2 part, oven curing, unfilled, rigid, epoxy based, liquid resin. The resin is characterized by an outstanding physical and electrical stability. It is highly resistant to moisture and is... Read more

Overview

3M

3M Scotchcast Electrical Resin 3 (10 lb)

3M Scotchcast Resin 3 is a 2 part, oven curing, unfilled, rigid, epoxy based, liquid resin. The resin is characterized by an outstanding physical and electrical stability. It is highly resistant to moisture and is suitable for impregnating, potting and encapsulating applications such as coils, transformers, modules and other electrical as well as electronic components.3M™ Scotchcast™ Electrical Resin 3 has low viscosity and fine wetting properties that assure complete impregnation of fine wires in coils. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
  • 80 Shore D hardness
  • Has 21-minute gel time at 250 °F (121 °C)
  • Suitable for impregnating, potting and encapsulating applications such as coils, transformers and modules
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Elongates 2% longer than its original size for easy insulation or wrapping
  • Low-viscosity and fine-wetting properties allow complete impregnation of fine wires in coils

Product Details

General Information
Brand
Scotchcast™
Product Type
Electrical Resin
Country Of Origin
United States
Sold As
Case
California Residents
Proposition 65 Warning
Dimensions and Specifications
Cure Temperature
>75 Degree Celsius
Temperature Rating
Class B (<=130 deg C)
Tensile Strength (Imperial)
4400 Pound-Force Per Square Inch
Width
2.26 Decimetre
Height
2.5 Decimetre
Length
4.5 Decimetre
Volume
25.32 dm3
Weight
210.4 oz
5964.74 g
Other Details
Base Polymer
Epoxy
Cure Method
Oven
Dielectric Strength (V/mil)
300 V/mil
Elongation
2 %
Flexibility
Rigid
Form
Liquid
Gel Time
22 min @ 250 °F (121 °C)
Hardness
80 Shore D
Mix Ratio
Wt 2:3 Vol (%) 37:63
Mixed Viscosity
Low (<10,000 cpi)
Resin Cure
Oven Cure Unfilled Resins
Resin Matrix
Unfilled
Thermal Conductivity
Low (<0.25 W/m-K)
Tensile Strength Imperial
4400 Pound-Force Per Square Inch
Material and Composition
Material
Epoxy
Color and Appearance
Product Color
Clear Amber
Certifications and Standards
Flammability Rating
Not Self Extinguishing
Resources
Datasheet
