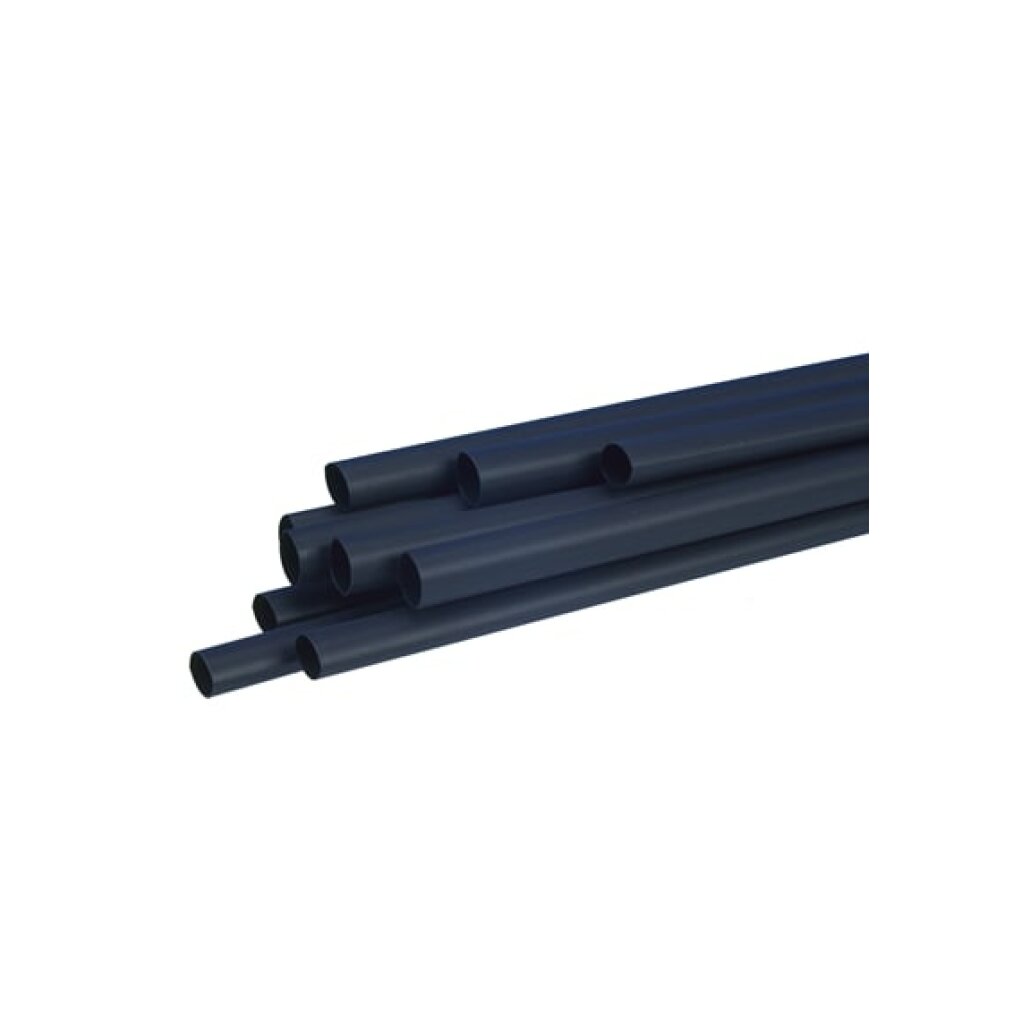

3M SFTW-203 1/4" Heat Shrink Tubing Polyolefin, Black, 6.0/2.0 mm, 61 mRoll

by 3M
No reviews
Original price $354.99 - Original price $354.99
Original price
$354.99
$354.99 - $354.99
Current price $354.99
Free shipping
3M Heat Shrink Tubing SFTW-203 is made of very flexible, heat shrinkable polyolefin which is mechanically tough, chemically resistant, and can be easily surface printed.The extra flexibility and low shrink temperature of 3M™ Tubing Heat... Read more
Please allow 2 days for production.

Overview

3M

3M SFTW-203 1/4" Heat Shrink Tubing Polyolefin, Black, 6.0/2.0 mm, 61 mRoll

3M Heat Shrink Tubing SFTW-203 is made of very flexible, heat shrinkable polyolefin which is mechanically tough, chemically resistant, and can be easily surface printed.The extra flexibility and low shrink temperature of 3M™ Tubing Heat Shrink Tubing SFTW-203 make it ideal for shrink fit jacketing and insulation of flexible wire bundles and temperature sensitive components. The 3:1 shrink ratio makes SFTW 203 tubing the insulation of choice for end terminations where the connector body is larger than the cable and for repair applications where the tubing must be slid over a connector. SFTW 203 tubing can also be used to insulated an oversized component in line to the wiring.
  • Made of flexible polyolefin
  • Shrink ratio 3:1
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, SAE-AMS-DTL-23053/5, Class 1, CSA Certified and RoHS Compliant

Product Details

General Information
Brand
3M™
Tubing Type
Single-Wall Polyolefin Flexible
Country Of Origin
Netherlands
Lead Time
2 days
California Residents
Dimensions and Specifications
Expanded Inner Diameter
0.25 in
Expanded Inner Diameter (Metric)
6.35 mm
Inner Diameter After Shrink (Imperial)
0.08 in
Inner Diameter After Shrink (Metric)
2.12 mm
Inner Diameter Before Shrink (Imperial)
0.25 in
Inner Diameter Before Shrink (Metric)
6.35 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to +135 °C
Overall Length (Imperial)
200 ft
Overall Length (Metric)
61 m
Recovered Inner Diameter
1 in
Tensile Strength (Imperial)
2600 Pound-Force Per Square Inch
Operating Temperature Celsius
-55 °C to +135 °C
Overall Length Imperial
200.0
Other Details
Adhesive Lined
No
Applicable SAE-AMS-DTL-23053 Specifications
23053/5 class 1
Elongation
400 %
Halogen Free
No
Mil Spec
AMS-DTL-23053/5, Class 1
Non-Corrosive
Yes
Shrink Ratio
3:1
Units Per Case
3.0
With Inner Glue
No
Tensile Strength Imperial
2600 Pound-Force Per Square Inch
Material and Composition
Material
Flexible Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Flammability Rating
Self-Extinguishing
UL Approval
Yes
