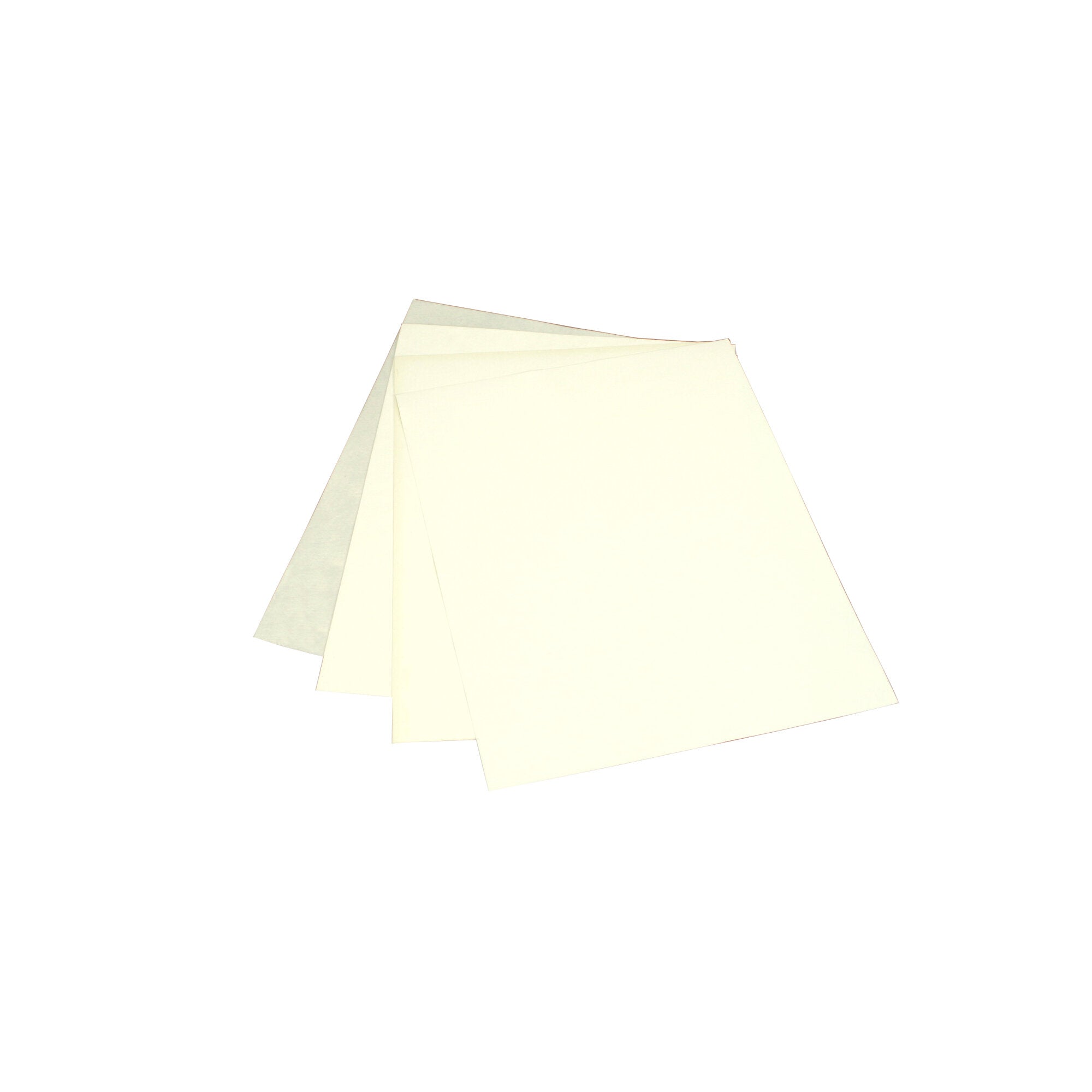

3M TufQUIN 110 Inorganic Hybrid Insulating Papers 3 mil

Features

3M TufQUIN Inorganic Hybrid Insulating Paper provides excellent thermal stability and long term voltage endurance. This highly flexible paper is ideal for high performance electrical applications. It provides low moisture absorption and exhibits low moisture content, even under high humidity conditions. 3M TufQUIN Inorganic Hybrid Insulating Paper exhibits high thermal conductivity and coil bonding characteristics when impregnated. This flexible paper offers enhanced toughness and resists tears, making it suitable for use in more rigorous winding applications. This highly conformable paper maintains a high percentage dielectric strength and is ideal for use in dry type transformers, coils, reactors, wire and cable wrap, pressure sensitive tapes, spiral and convolute tubing.It is suitable for Class 200(N) electrical insulation systems and 3M UL Recognized Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant‎‎.

• Mechanical strength suitable for rigorous winding applications
• Offers excellent thermal conductivity, long-term voltage endurance and low moisture absorption
• Ideal for dry-type transformers, traction motors, generators, wire and cable wrap, battery separators, spiral and convolute tubing applications
• Compatible with commonly used impregnating resins and varnishes
• Suitable for high-temperature electrical insulation applications rated up to Class 200(N)
• Found in 3M UL Recognized Insulation Systems
