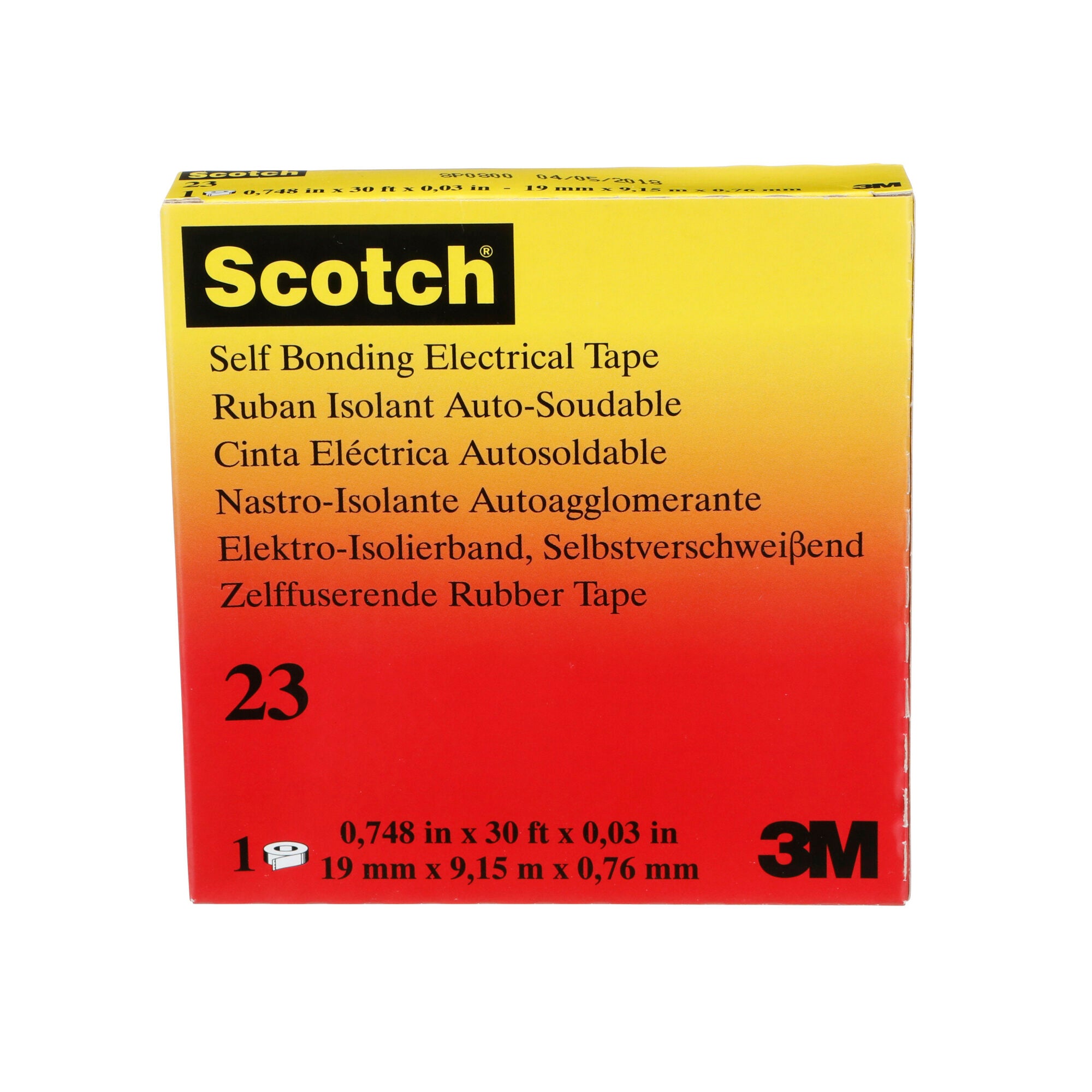

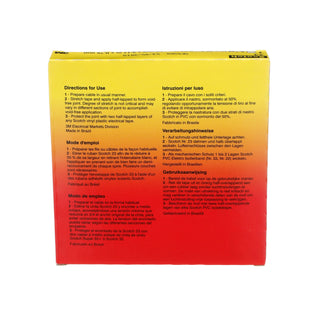

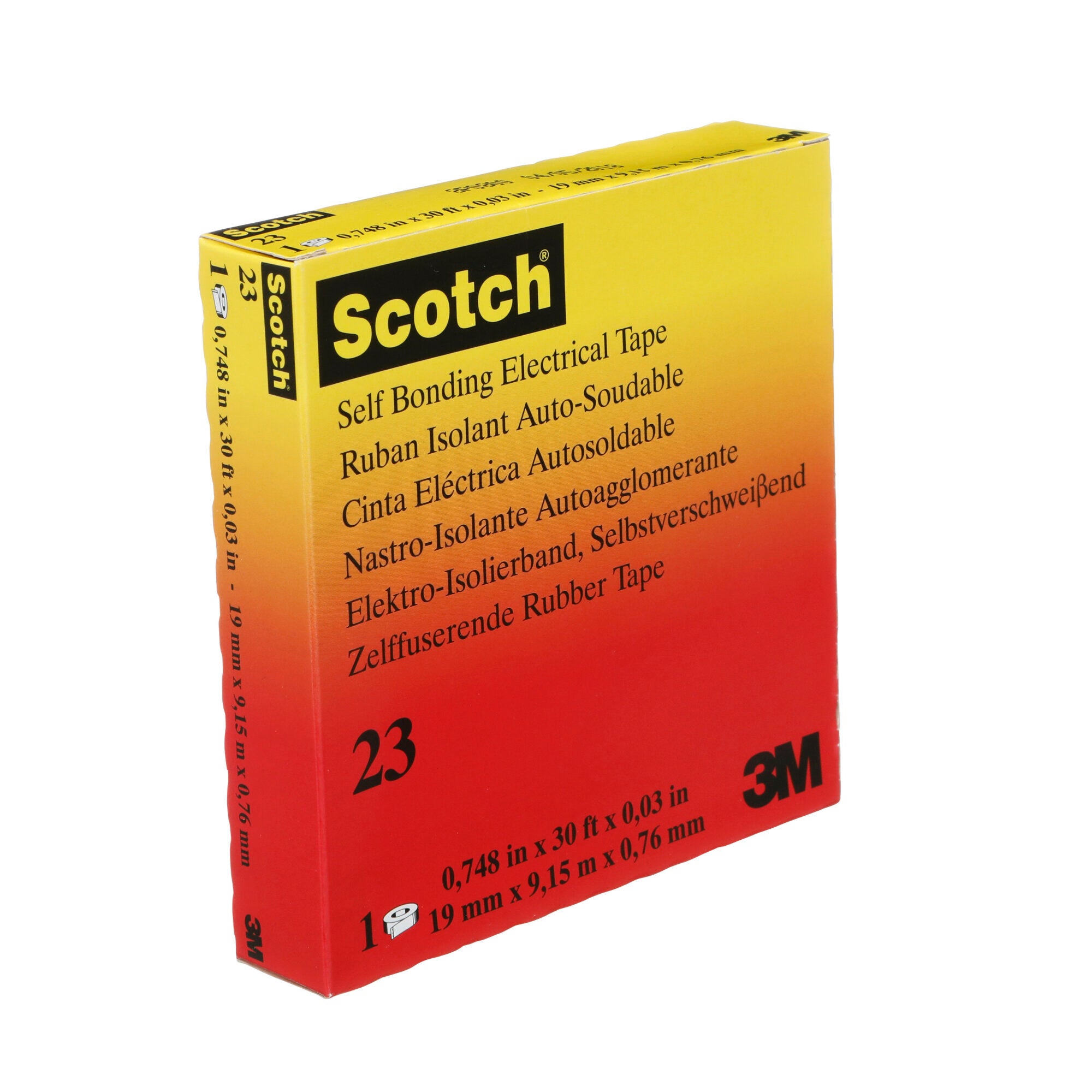

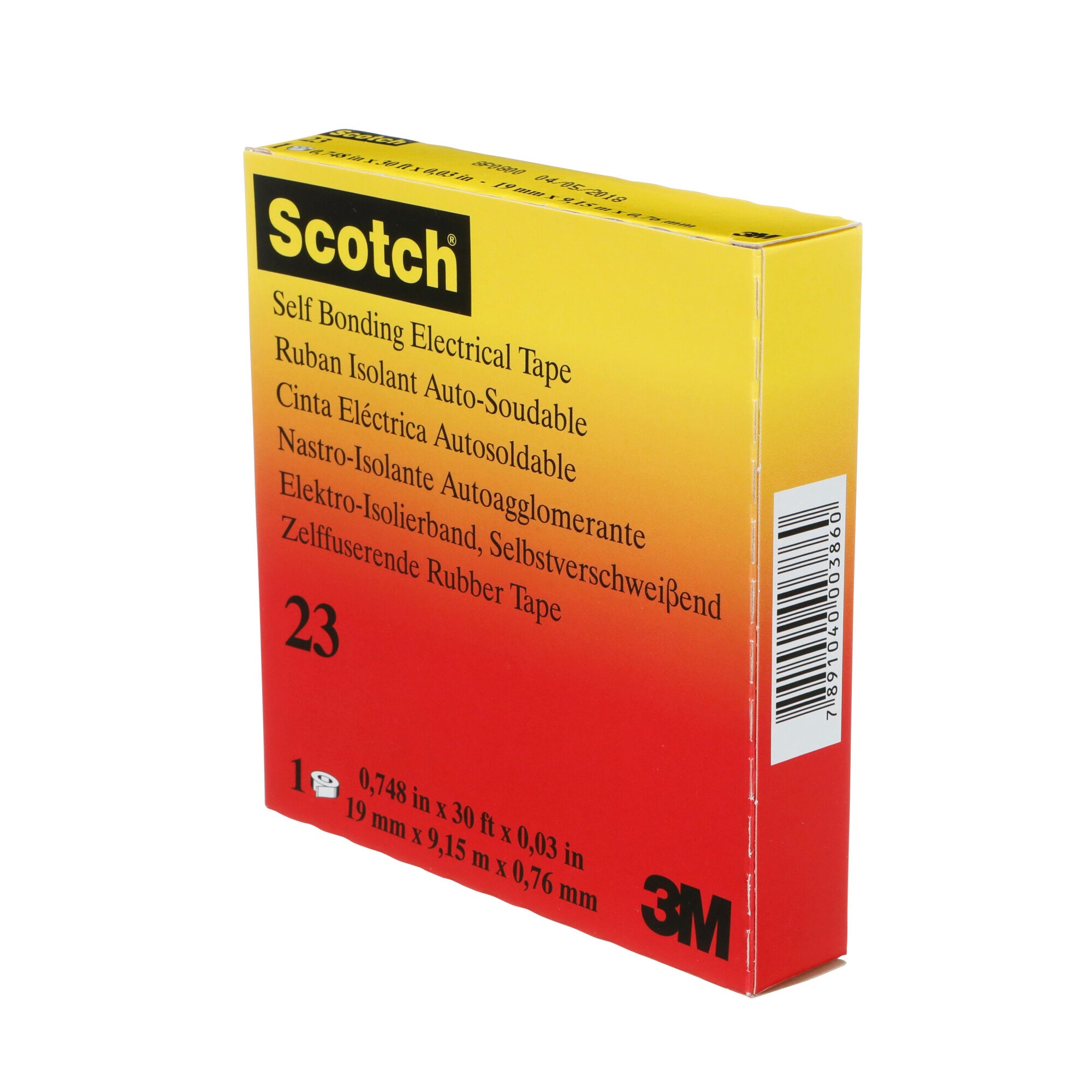

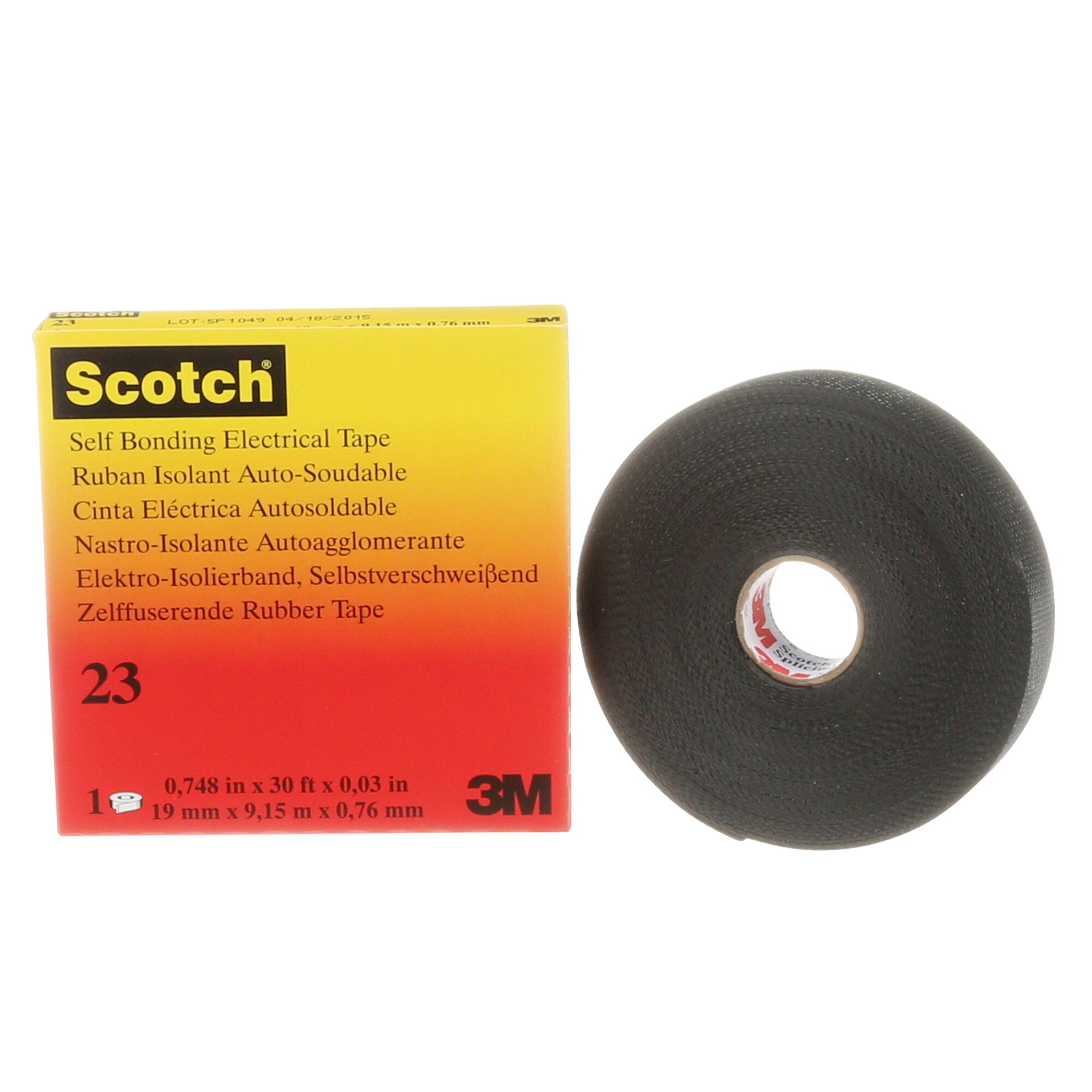

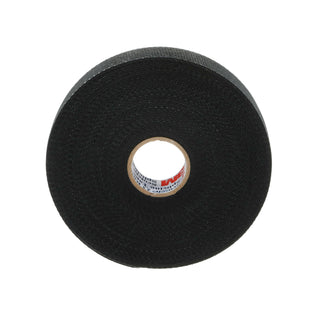

Scotch® Rubber Splicing Tape 23, 3/4 in x 30 ft, Black, 1 roll/carton

Scotch® Rubber Splicing Tape 23, 3/4 in x 30 ft, Black, 1 roll/carton

by 3M
No reviews
$35.99 - $35.99
$35.99
$35.99 - $35.99
$35.99
Free shipping
Extended Handling May Be Required
Scotch Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures... Read more
Please allow 2 days for production.

Overview

3M

Scotch® Rubber Splicing Tape 23, 3/4 in x 30 ft, Black, 1 roll/carton

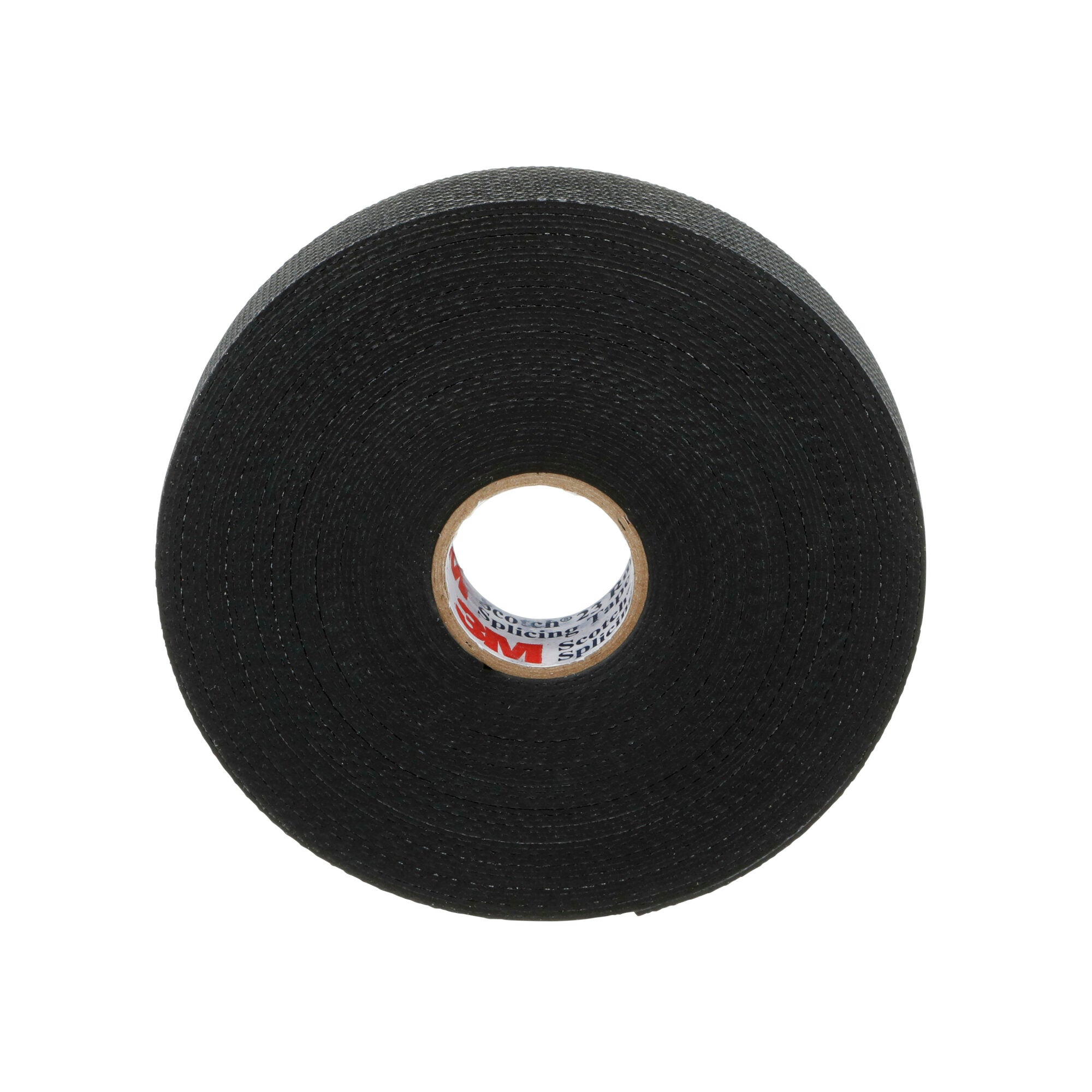

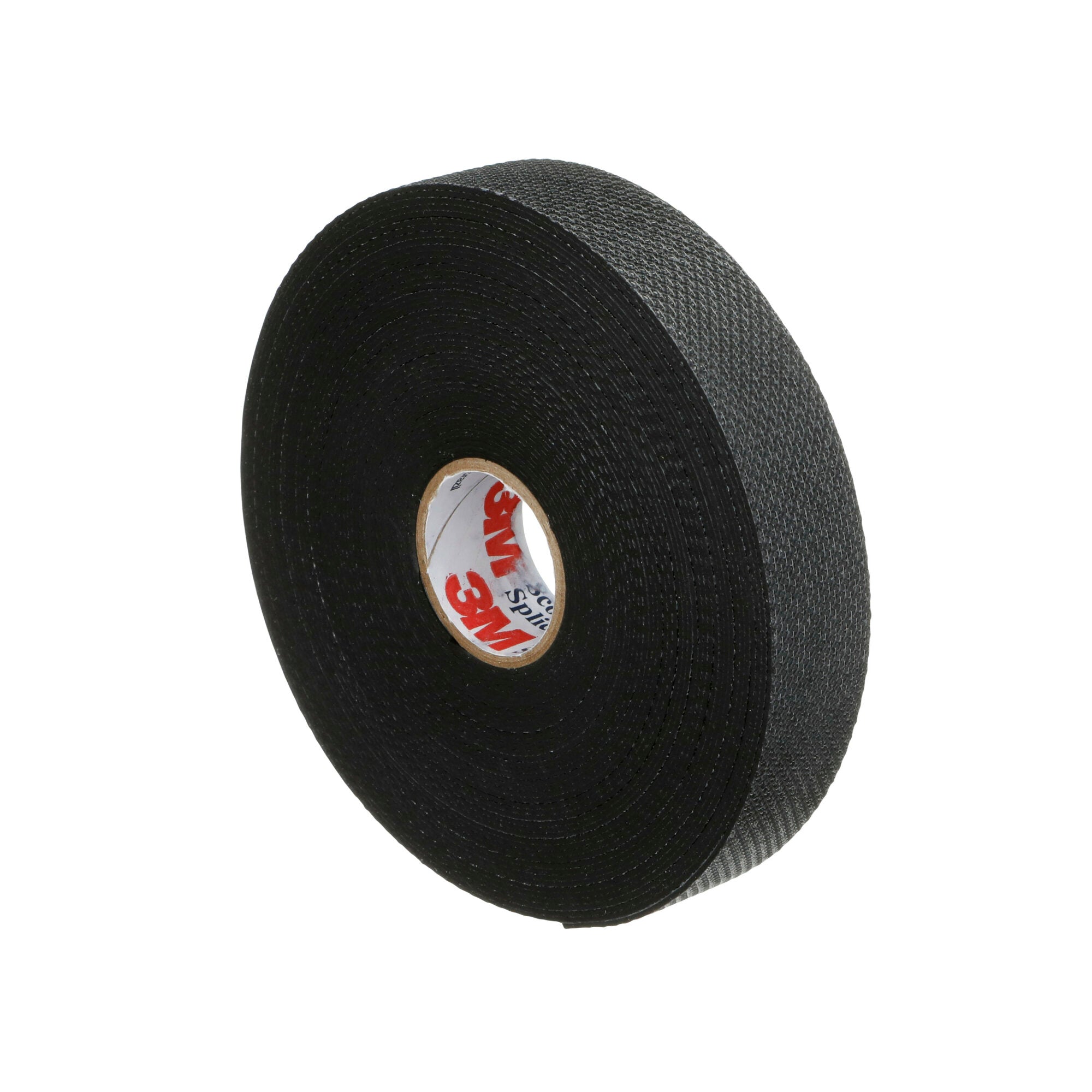

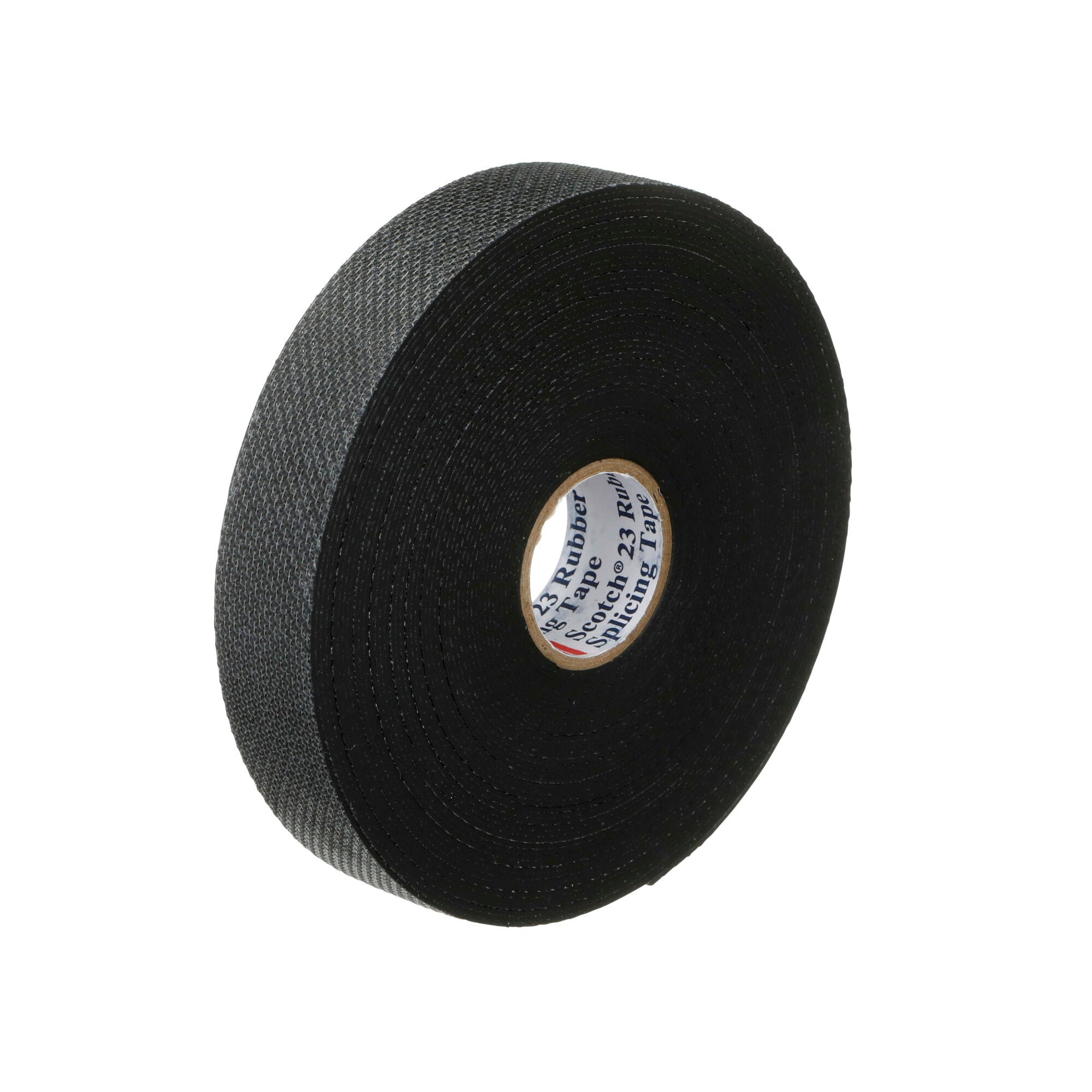

Scotch Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 F (90 C).
  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive

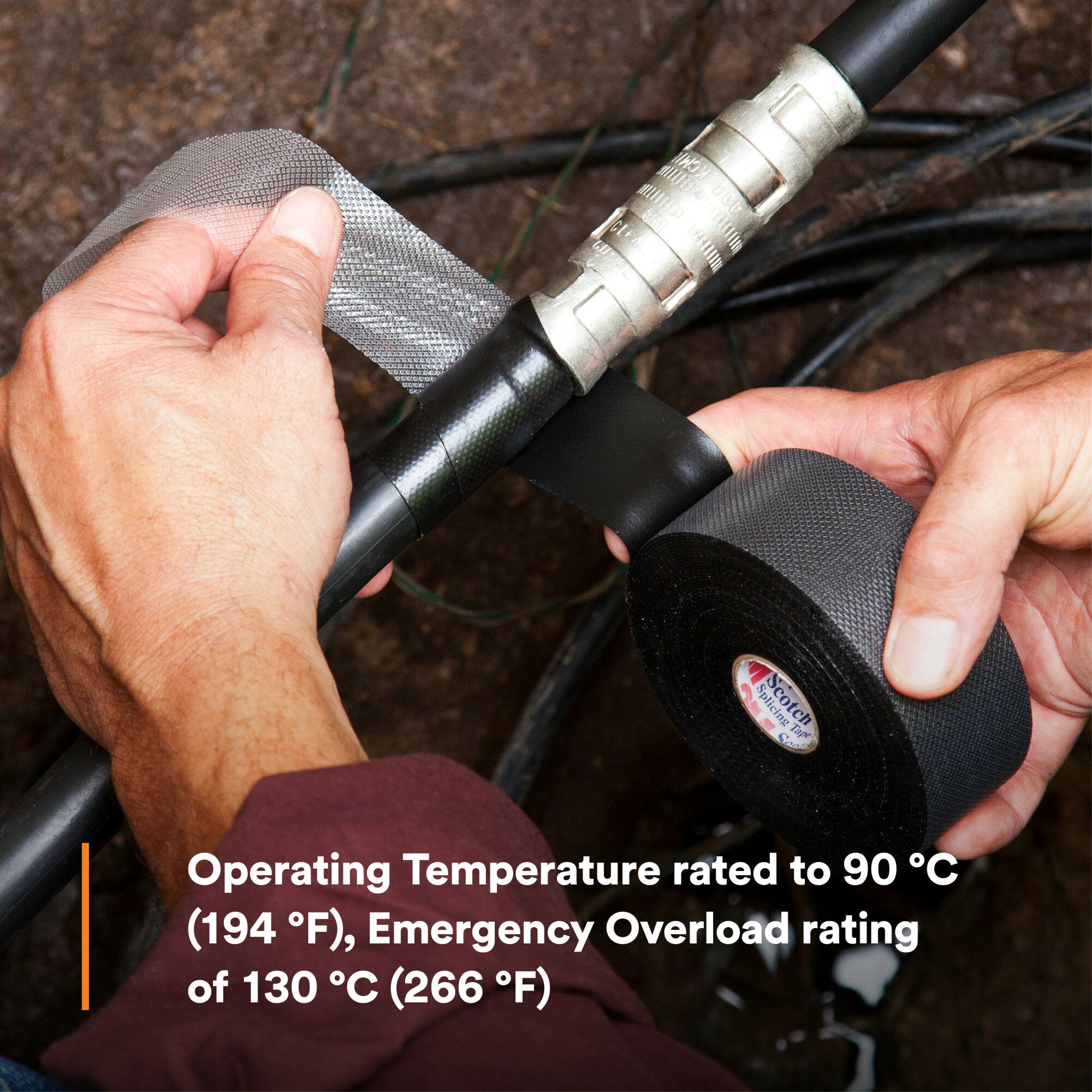

  • Temperature rated for continuous adhesion to 194°F (90°C)

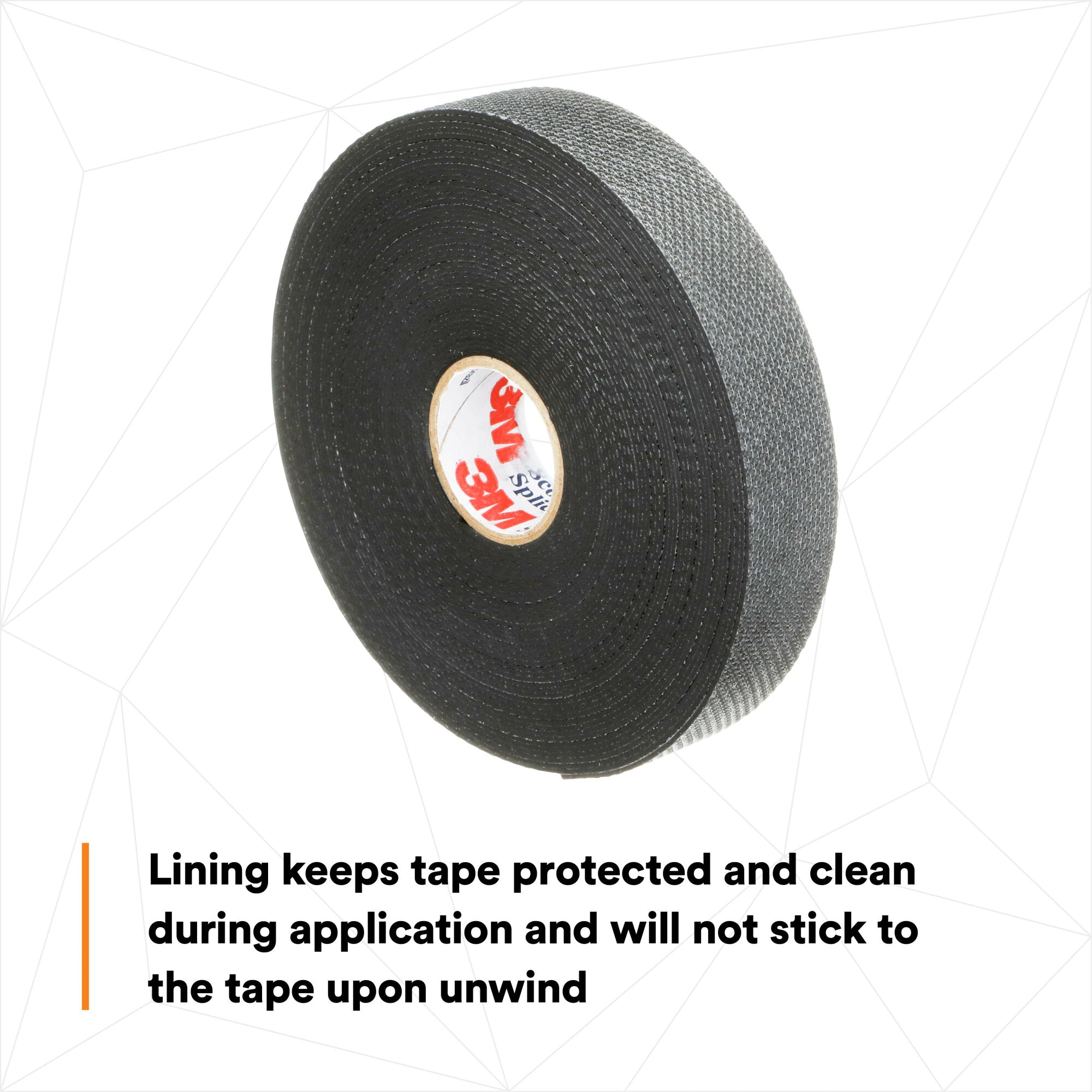

  • Special polyester liner keeps tape protected and clean during application
  • ASTM Approved & RoHS 2002/65/EC Compliant

Product Details

General Information
Brand
Scotch®
Adhesive Type
Non-adhesive
Country Of Origin
Brazil
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Backing (Carrier) Thickness (Metric)
0.76 mm
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
0 Degree Celsius

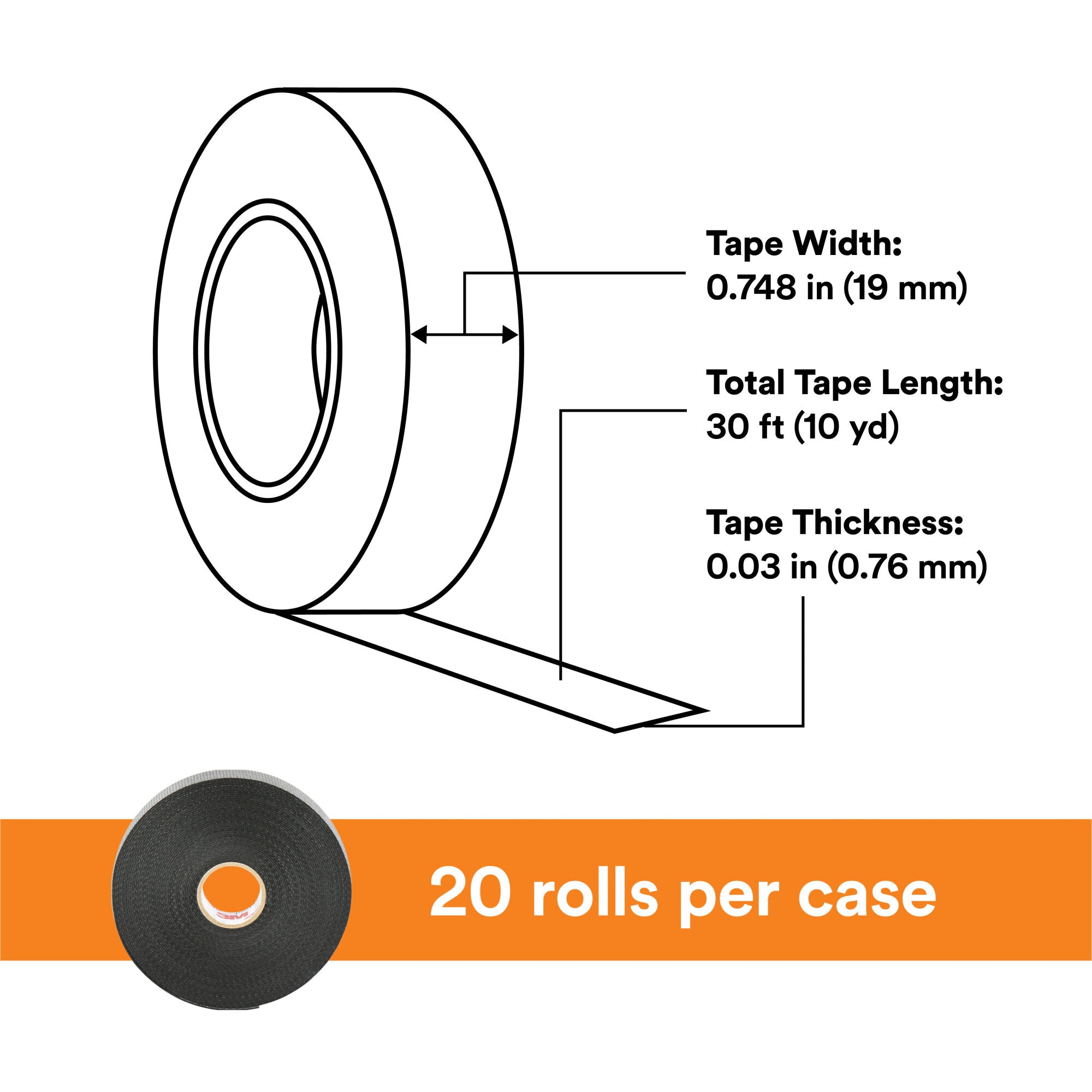

Overall Length (Imperial)
30 ft
Overall Length (Metric)
9.1 m
Overall Width (Imperial)
0.75 in
Overall Width (Metric)
19 mm
Tensile Strength (Imperial)
8.0 lb/in
Tensile Strength (Metric)
55 kPa
Total Tape Thickness Without Liner (Imperial)
30 mil
Total Tape Thickness Without Liner (Metric)
0.76 mm

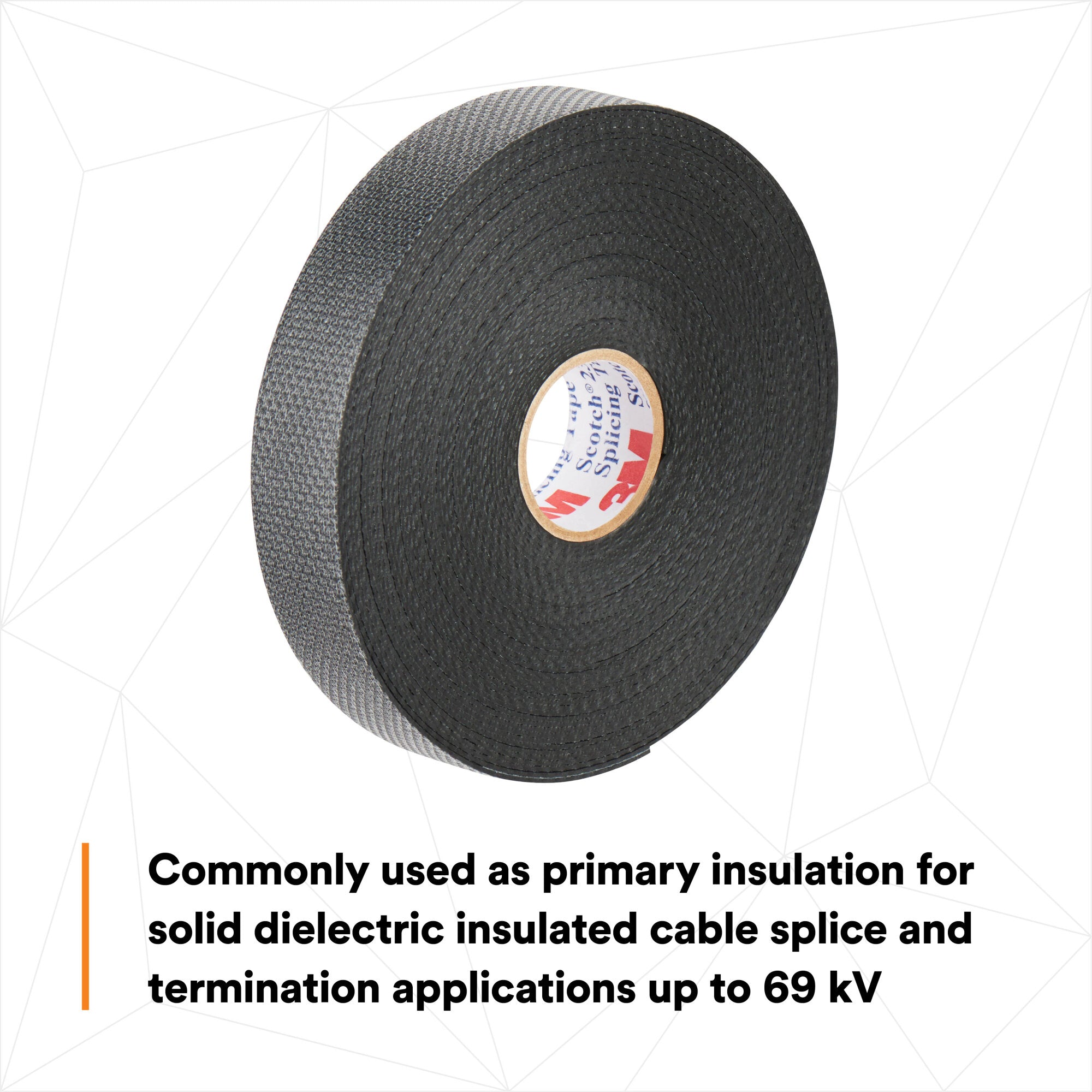

Voltage Rating
69 kV
Overall Length Imperial
30.0
Total Tape Thickness Without Liner Metric
0.76
Other Details
Dielectric Strength
800 V/mil
Elongation At Break
1000.0 %
Insulation Resistance
> 10^6 megohms
Tape Grade
Professional
Tensile Strength Imperial
8.0
Usage Information
Application
Electrical Maintenance
Material and Composition
Backing (Carrier) Material
Ethylene Propylene Rubber
Shelf Life
5 Year
Backing Carrier Material
Ethylene Propylene Rubber
Color and Appearance
Product Color
Black
Certifications and Standards
Specifications Met
ASTM D-4388 Type 1, 2 & 3
Product Features
Features
Vulcanizing
