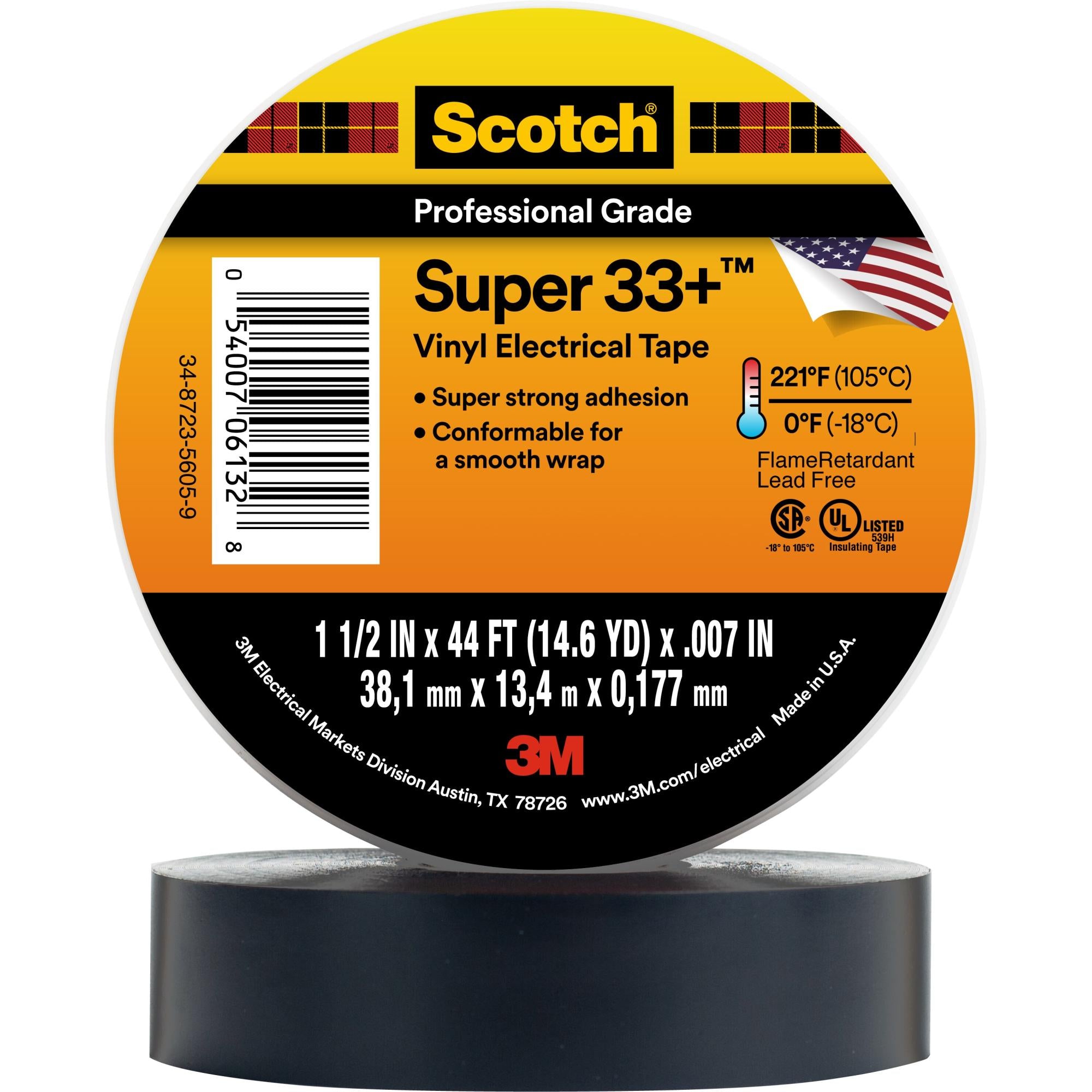

Scotch® Vinyl Electrical Tape 33, 1-1/2 in x 44 ft, Black, 10 rolls/carton

by 3M
Original price $135.99 - Original price $135.99
Original price
$135.99
$135.99 - $135.99
Current price $135.99
Free shipping
Scotch Tape 33 is a 7 mil thick, mid tier, vinyl electrical tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of... Read more
Please allow 2 days for production.

Overview

3M

Scotch® Vinyl Electrical Tape 33, 1-1/2 in x 44 ft, Black, 10 rolls/carton

Scotch Tape 33 is a 7 mil thick, mid tier, vinyl electrical tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of 32 to 221 F (0 to 105 C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds.Scotch® Tape 33 is designed for above/below grade, indoor/outdoor, low and high voltage applications and for harnessing cables. This tape offers electrical and mechanical protection with the combination of a pressure sensitive, rubber resin adhesive and elastic, PVC backing. It provides a protective jacket for high voltage cable splices. This electrical tape is highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
  • Resists UV rays, abrasion, moisture, alkalis, solvents and acids
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of 32 to 221 °F (0 to 105 °C)

Product Details

General Information
Brand
Scotch™
Adhesive Type
Rubber
Country Of Origin
United States
Sold As
Carton
Lead Time
2 days
California Residents
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
220 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
0 Degree Celsius
Overall Length (Imperial)
44 ft
Overall Width (Imperial)
1.5 in
Overall Width (Metric)
38 mm
Tensile Strength (Metric)
30 N/10mm
Total Tape Thickness Without Liner (Imperial)
7 mil
Total Tape Thickness Without Liner (Metric)
0.178 mm
Voltage Rating
600 V
Overall Length Imperial
44.0
Width
6.3 in
16 cm
Height
8.11 in
20.6 cm
Length
3.27 in
8.3 cm
Volume
166.94 cubic inch
2735.68 cm3
Weight
3.23 lb
1.47 kg
Other Details
Dielectric Strength
1150 V/mil
Insulation Resistance
> 10^6 megohms
Tape Grade
Professional
Usage Information
Application
Insulation
Material and Composition
Backing (Carrier) Material
Vinyl
Shelf Life
5 Year
Backing Carrier Material
Vinyl
Color and Appearance
Product Color
Black
Resources
Datasheet
