Features
The extra hard Standard Abrasives Quick Change Aluminum Oxide 900 Series Unitized Wheel is the most dense and aggressive wheel in the Standard Abrasives Unitized Wheels line. This non-woven abrasive wheel is engineered with the highest level of toughness and edge durability for effective removal of challenging burrs and efficient polishing of harder metals.
Extra Hard Density Wheel Removes Challenging Burrs with Precision and Effectively Polishes Harder Metals
Our Standard Abrasives™ Quick Change Aluminum Oxide 900 Series Unitized Wheel is offered in two grades of aluminum oxide (A/O) mineral: coarse or medium. Its extra hard density makes it the hardest, most aggressive wheel in our Standard Abrasives™ Unitized Wheels line. The combination of high density and coarse mineral enables this wheel to withstand high-pressure applications and cut with force, making it suitable for heavy-duty deburring, cleaning, blending and finishing.

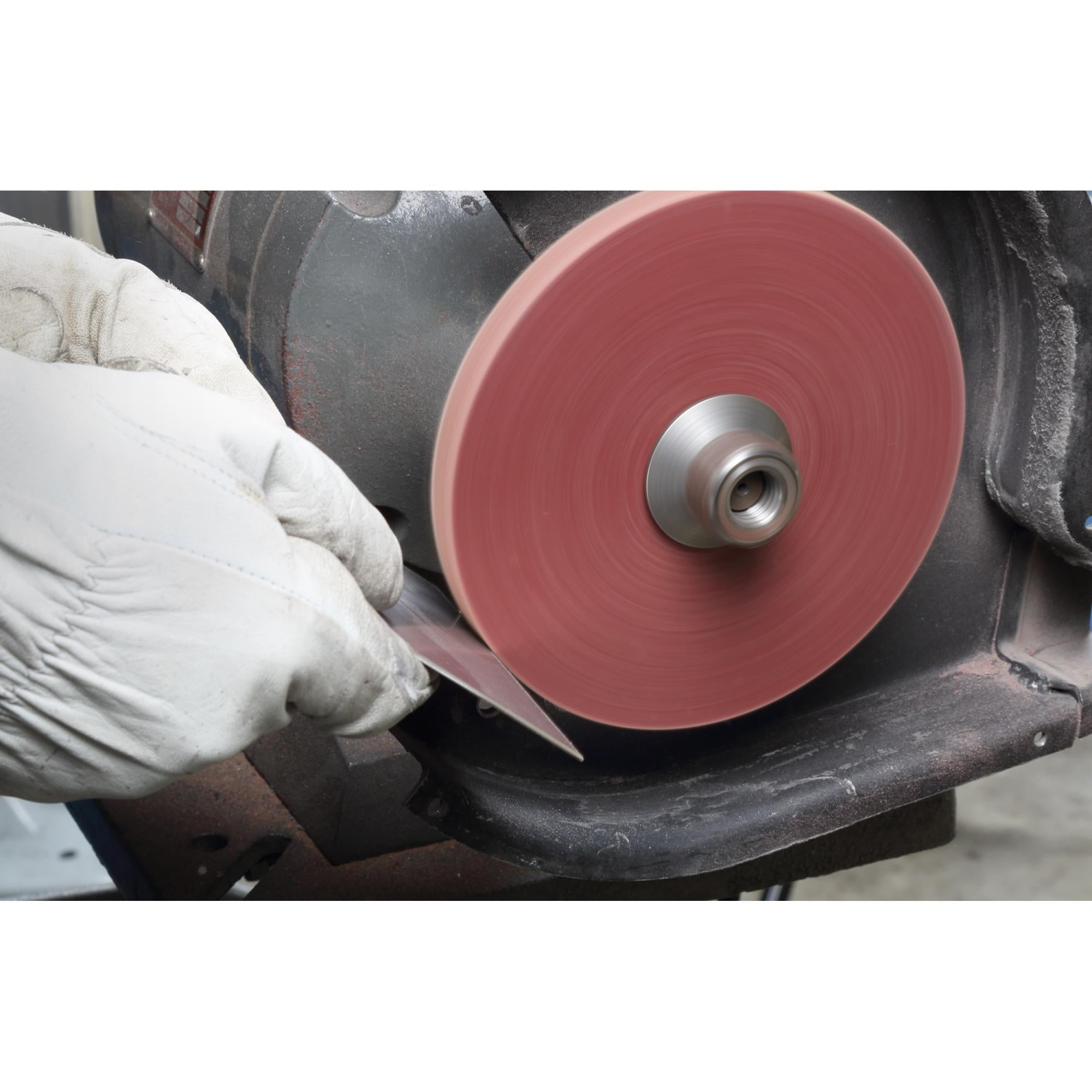

Use our Standard Abrasives™ 900 Series Quick Change A/O Unitized Wheel on smaller areas of the workpiece to remove heavy flash and parting lines, deburr sharp edges, remove coarse coated abrasives grind lines and remove heavy machine tool marks. When it comes to blending, trust this wheel to blend pits in cast parts, refine surfaces on high nickel alloys and blend machined surfaces where wheel rigidity is necessary.
Quick Change Wheels are Easy to Use
Standard Abrasives™ Quick Change Unitized Wheels are available in smaller sizes with a TS or TR attachment. Quick change wheels allow tool-free swap outs, maintain secure attachment at high speeds, and save operators time when switching discs between grades or applications. Easy fastening and swapping of wheels enhances tool efficiency and worker productivity.
Choose the wheel compatible with your TR or TS holder pad. TR wheels have a nylon threaded male hub that easily threads onto TR or 3M™ Roloc™ type holder pads with a turn of the wrist, and the TS system has a metal hub that fastens to its holder pad with a simple twist.
All Standard Abrasives™ TS and TR holder pads have a 1/4-20 female thread. A 1/4" TA4 mandrel attaches the holder pad to the tool (sold separately, part number 540013).
Non-Woven Unitized Construction Offers a Step Up in Density and Durability for Stubborn Surfaces
Standard Abrasives™ Unitized Wheels are a great match for tough deburring, cleaning, blending and finishing applications. They come in a broad range of densities and grades to suit different metals, the degree of aggressiveness required, shape of the part, and desired finish. Although used for some of the same tasks as Standard Abrasives™ Buff and Blend products, they are designed with a far stronger and denser construction to support more aggressive applications and accomplish material removal more rapidly. Even though unitized wheels are much stiffer products, the non-woven nylon fibers of the wheel maintain the advantage of responding to surface irregularities while preserving the geometry of the piece, and produce a consistent finish.
Unitized wheels are created by starting with layers of open web material that combines non-woven fiber strands and abrasive mineral with a tough resin bond. These layers of web are then cured and compressed together. By fusing layers of open web, the abrasive gains more toughness and durability, so it can withstand repeated wear.
Ultimately, the wheel's durability is what makes it such a good match for edges. Regardless of the diameter or thickness of the wheel, it maintains its structural integrity to remain a stiff and long-lasting abrasive even under high pressure. Additionally, as the layers wear, the wheel can be dressed to maintain its shape.
Load-Resistance Boosts Life and Performance
Standard Abrasives™ Unitized Wheels are load-resistant to keep you cutting with fresh mineral. The gaps in the open web allow unwanted swarf to escape. Consequently, less debris clogs the abrasive, so the mineral can stay fresh, keep cutting sharp and deliver a consistent cut over the life of the product. As the fibers break down and fresh mineral is exposed, it reduces the likelihood of dull or blunt mineral smearing the surface, contributing to cleaner surfaces and less re-work. Furthermore, manual fatigue that may result from applying heavy pressure to a dull abrasive is reduced.
The Many Benefits of Standard Abrasives™ Non-Woven Products
Standard Abrasives™ Unitized Wheels offer many benefits for heavy-duty jobs. For all the aforementioned reasons, Standard Abrasives™ Unitized Wheels invigorate deburring, cleaning, blending and finishing applications by helping operators reduce finishing steps, minimize costs and achieve greater throughput.
- Combining extra hard density wheel with medium and coarse mineral results in aggressive edge deburring and finishing
- Harder material density and increased edge durability over 800 Series Unitized Wheels increases life for heavy-duty tasks and hard metals
- Suitable for heavy-duty deburring, cleaning, blending and finishing
- Aluminum oxide mineral is a good match for ferrous and non-ferrous metals, including aluminum
- Easy fastening and swapping of quick change disc enhances tool efficiency and worker productivity
