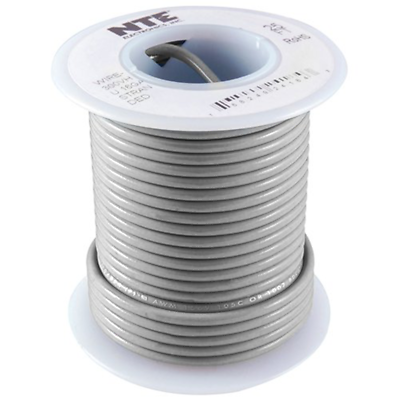

NTE WH24-08-25 Hook Up Wire 300V Stranded Type 24AWG Gray 25ft

Regular price $8.77
Unit price
per
No Reviews

NTE WH24-08-25 Hook Up Wire 300V Stranded Type 24AWG Gray 25ft

Regular price $8.77
Unit price
per
No Reviews
Fast Shipping
Secure payment
(0 in cart)
100% Secure payments

Your details are protected and safe with us.

You may also like

About this item

NTE WH24-08-25 Hook Up Wire 300V Stranded Type 24AWG Gray 25ft

NTE Electronics

Downloads

No files available.

APPLICATIONS:

    Internal wiring of electrical and electronic equipment
    Internal wiring of panels, meters, computers, business machines, appliances, & control panels
    Point-to-point wiring where 300V is required
    6 Amp Max.

FEATURES:

    Available in 26, 24, 22, 20, 18, & 16 AWG
    Tin plated copper conductor
    16 & 18 AWG is 16 strand, 20 AWG is 10 strand, all other gauges are 7 strand
    Insulation thickness = 1/64"
    UL Style 1007
    CSA TR-64-1569
    Passes UL VW-1.S vertical flame test
    OSHA acceptable

SPECIFICATIONS:

    Voltage Rating:  300 Volts
    Insulation:  P.V.C.
    Max. Temperature:  90°C
    Colors:  Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
    Spools:  25 and 100 feet
