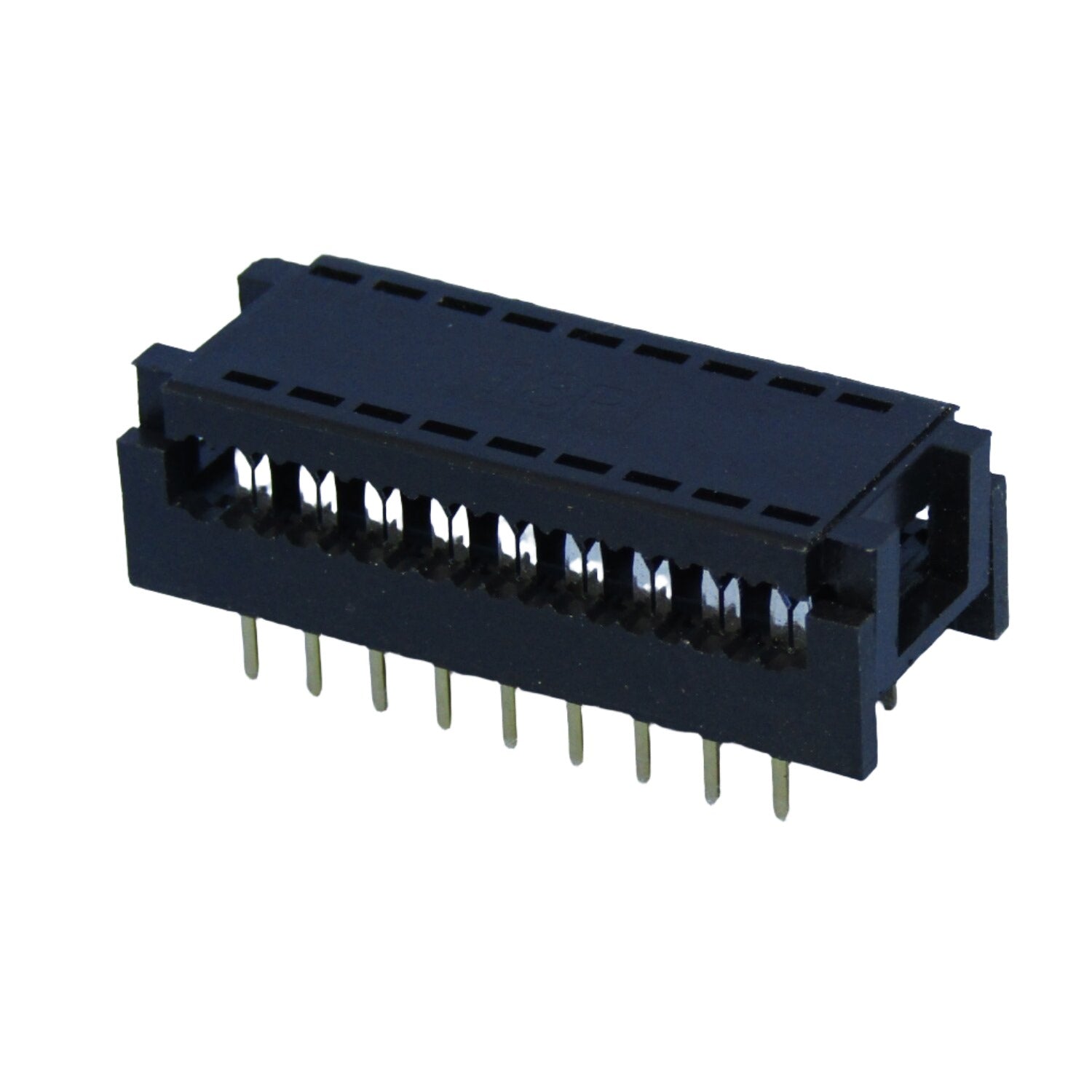

Philmore 70-4718 Insulation Displacement Dip Connector

Philmore 70-4718 Insulation Displacement Dip Connector

by Philmore
$10.34 - $10.34
$10.34
$10.34 - $10.34
$10.34
Free shipping
Extended Handling May Be Required

The Insulation Displacement Dip Connector is designed for efficiency and durability. It offers a swift, tool-free wire connection with a reliable insulation displacement contact system.

Overview

Philmore

Philmore 70-4718 Insulation Displacement Dip Connector

The Insulation Displacement Dip Connector is designed for efficiency and durability. It offers a swift, tool-free wire connection with a reliable insulation displacement contact system.
  • 18 position, dimension A=1.052, B=.800, C=.417, D=.300
  • Current rating: 1 amp dielectric withstanding
  • Voltage: 500V AC for 1 minute
  • Operating temperature: -55?-+105?C
  • Contact: phosphor bronze

Product Details

General Information
Manufacturer
Philmore
Part Number
70-4718
Product Type
Insulation Displacement Dip Connector
California Residents
Proposition 65 Warning
Specifications
Weight
0.00 kg
0.01 lb
Miscellaneous
Features
18 position, dimension A=1.052, B=.800, C=.417, D=.300
Current rating: 1 amp dielectric withstanding
Voltage: 500V AC for 1 minute
Operating temperature: -55?-+105?C
Contact: phosphor bronze
