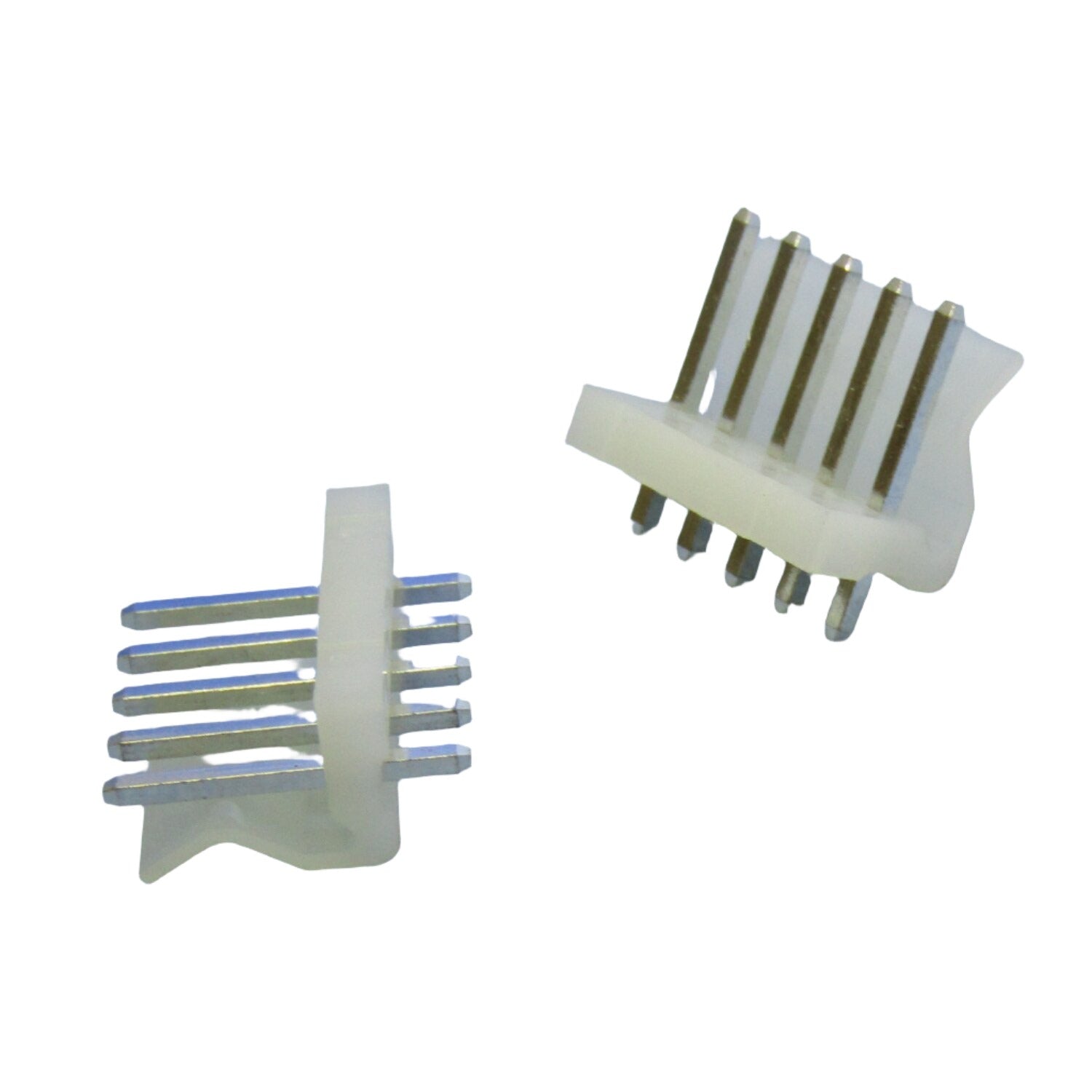

Philmore 70-6805 Locking Polarized Header

Philmore 70-6805 Locking Polarized Header

by Philmore
$10.34 - $10.34
$10.34
$10.34 - $10.34
$10.34
Free shipping
Extended Handling May Be Required

The Locking Polarized Header ensures secure and error-free connections in electronic assemblies. With a unique polarized design and locking mechanism, it prevents misalignment and ensures reliable mating.

Overview

Philmore

Philmore 70-6805 Locking Polarized Header

The Locking Polarized Header ensures secure and error-free connections in electronic assemblies. With a unique polarized design and locking mechanism, it prevents misalignment and ensures reliable mating.
  • 5 position, .156" center, dimension: .787" width, 20.0mm=A
  • voltage rating: 250V AC/DC, current rating: 5A AC/DC
  • withstand voltage: 1000V AC/min., temperature range: -25?C-+85?C
  • applicable PC board: .063" (1.6mm)
  • material: post: brass/tin plate, base: nylon 66, UL94V-7

Product Details

General Information
Manufacturer
Philmore
Part Number
70-6805
Product Type
Locking Polarized Header
California Residents
Proposition 65 Warning
Specifications
Material
Brass
Weight
0.00 kg
0.01 lb
Miscellaneous
Features
5 position, .156" center, dimension: .787" width, 20.0mm=A
voltage rating: 250V AC/DC, current rating: 5A AC/DC
withstand voltage: 1000V AC/min., temperature range: -25?C-+85?C
applicable PC board: .063" (1.6mm)
material: post: brass/tin plate, base: nylon 66, UL94V-7
mates with 70-6855
