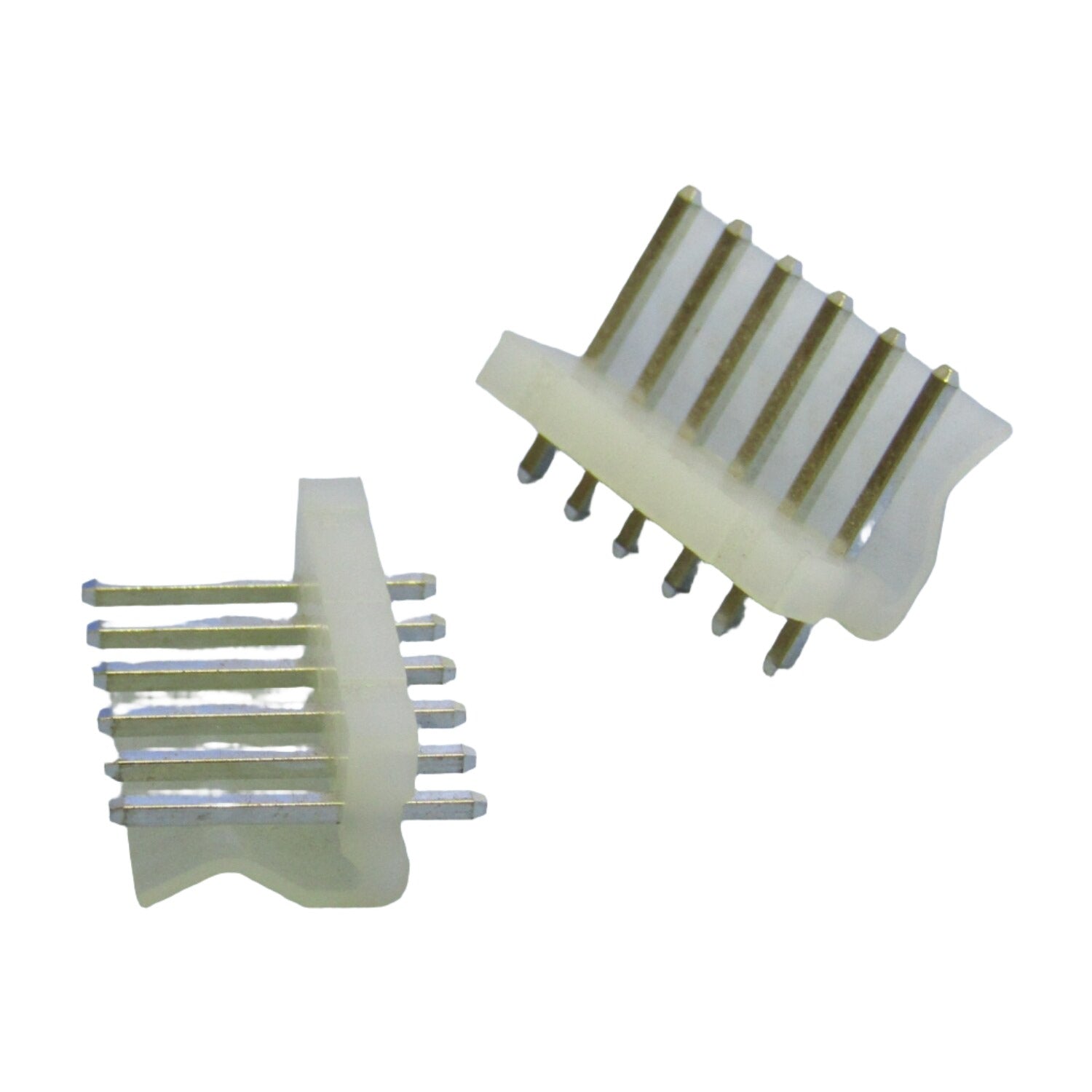

Philmore 70-6806 Locking Polarized Header

Philmore 70-6806 Locking Polarized Header

by Philmore
$10.34 - $10.34
$10.34
$10.34 - $10.34
$10.34
Free shipping
Extended Handling May Be Required

The Locking Polarized Header is a high-precision connector designed for fail-safe connections. It features a unique polarized interface and a secure locking mechanism to prevent misalignment, ensuring consistent and reliable connections.

Overview

Philmore

Philmore 70-6806 Locking Polarized Header

The Locking Polarized Header is a high-precision connector designed for fail-safe connections. It features a unique polarized interface and a secure locking mechanism to prevent misalignment, ensuring consistent and reliable connections.
  • 6 position, .156" center, dimension: .936" width, 23.76mm=A
  • Voltage rating: 250V AC/DC, current rating: 5A AC/DC
  • Withstand voltage: 1000V AC/min., temperature range: -25?C-+85?C
  • Applicable PC board: .063" (1.6mm)
  • Material: post: brass/tin plate, base: nylon 66, UL94V-9

Product Details

General Information
Manufacturer
Philmore
Part Number
70-6806
Product Type
Locking Polarized Header
California Residents
Proposition 65 Warning
Specifications
Material
Brass
Weight
0.00 kg
0.01 lb
Miscellaneous
Features
6 position, .156" center, dimension: .936" width, 23.76mm=A
Voltage rating: 250V AC/DC, current rating: 5A AC/DC
Withstand voltage: 1000V AC/min., temperature range: -25?C-+85?C
Applicable PC board: .063" (1.6mm)
Material: post: brass/tin plate, base: nylon 66, UL94V-9
