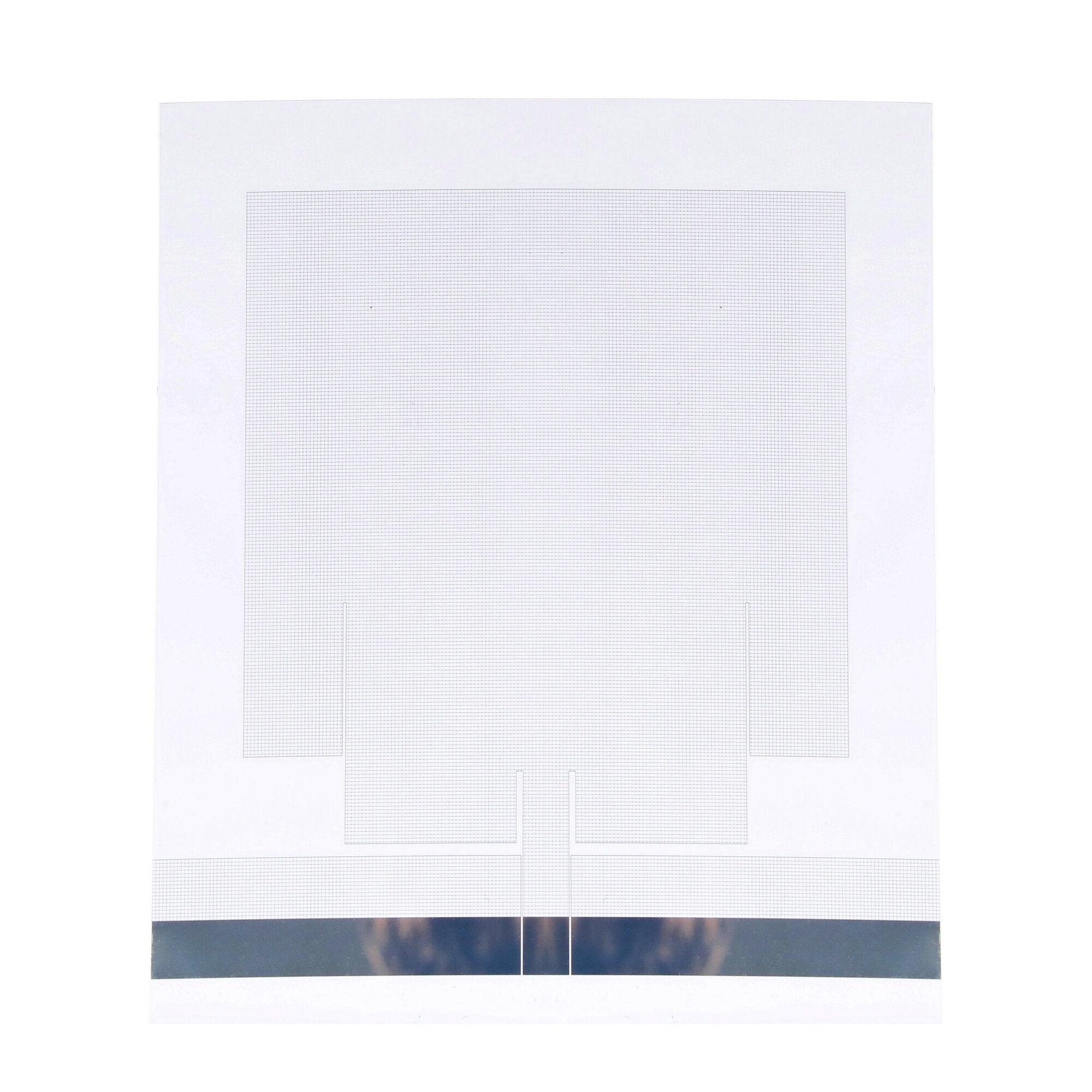

3M Transparent Conductor Film Assembly VT2022L 130mm x 200mm

Key points

• High transparency (>80% open area)
• Proprietary copper grid conductive layer
• Implemented in low-profile antennas achieving VSWR, PIM and gain requirements that are typical for non-transparent antennas
• High power capability (up to 50W)
• High efficiency (<0.05 ohms per square sheet resistance)
• Grid performance similar to solid copper
• High adhesion which allows for small bend radius
• Darkening treatment for all copper surfaces
