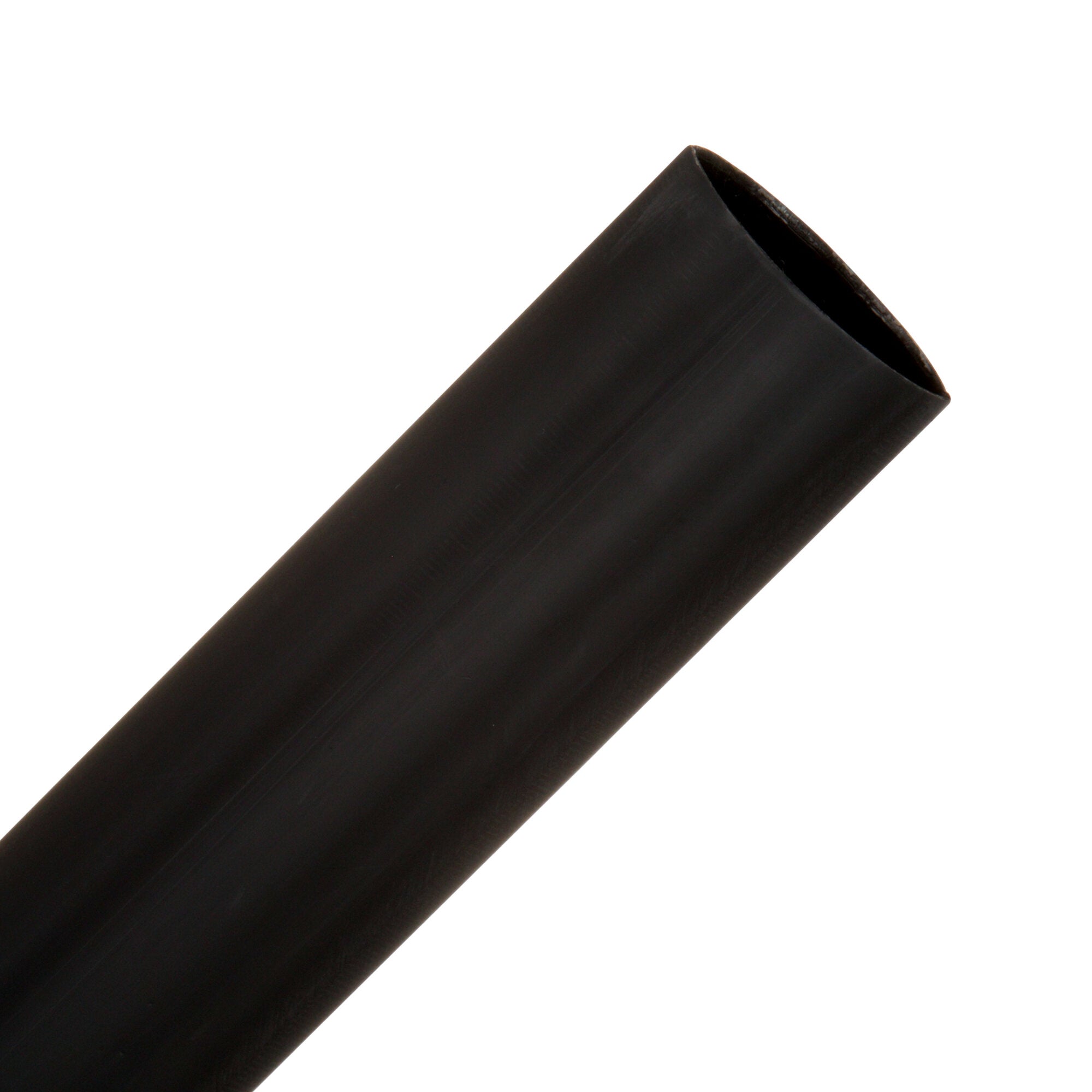

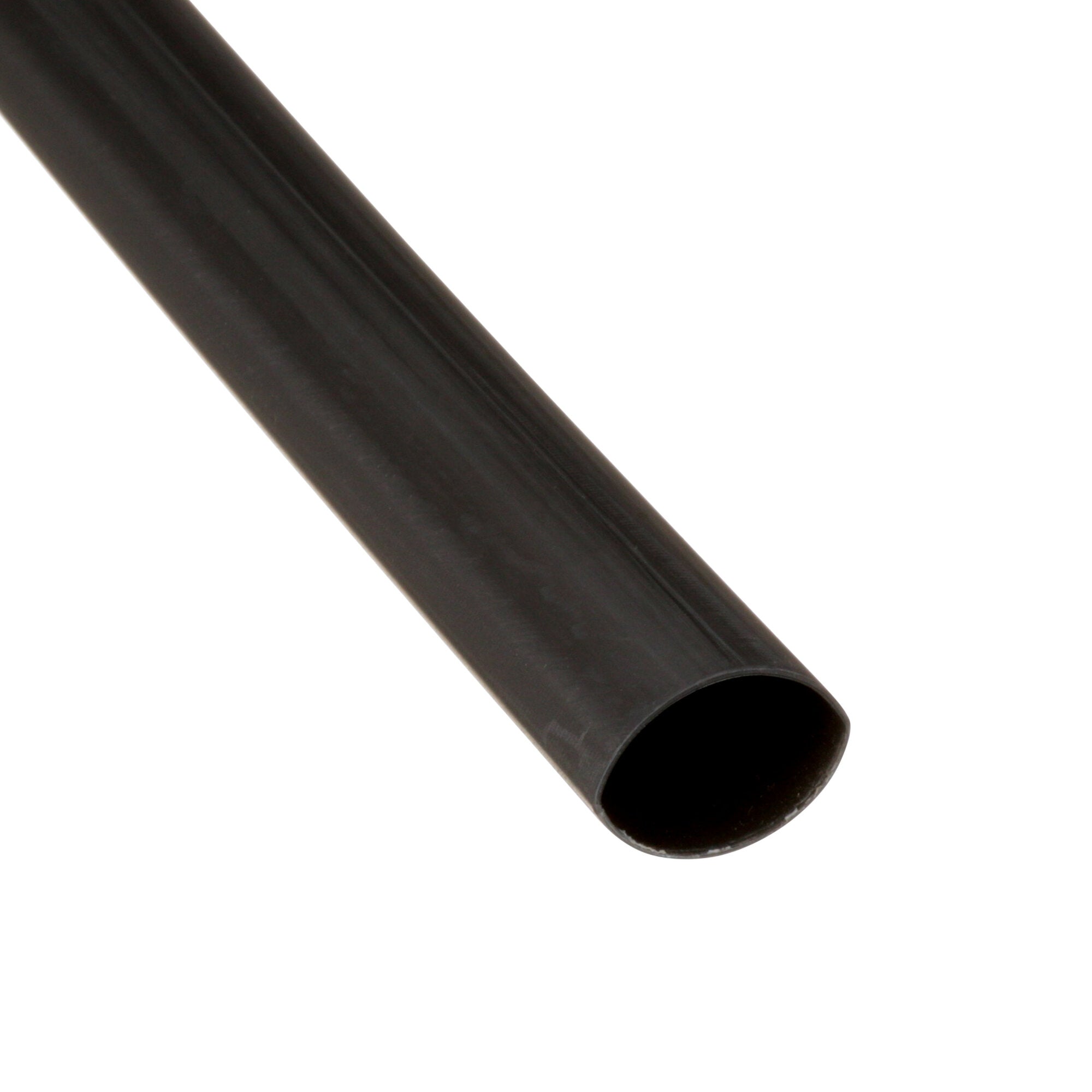

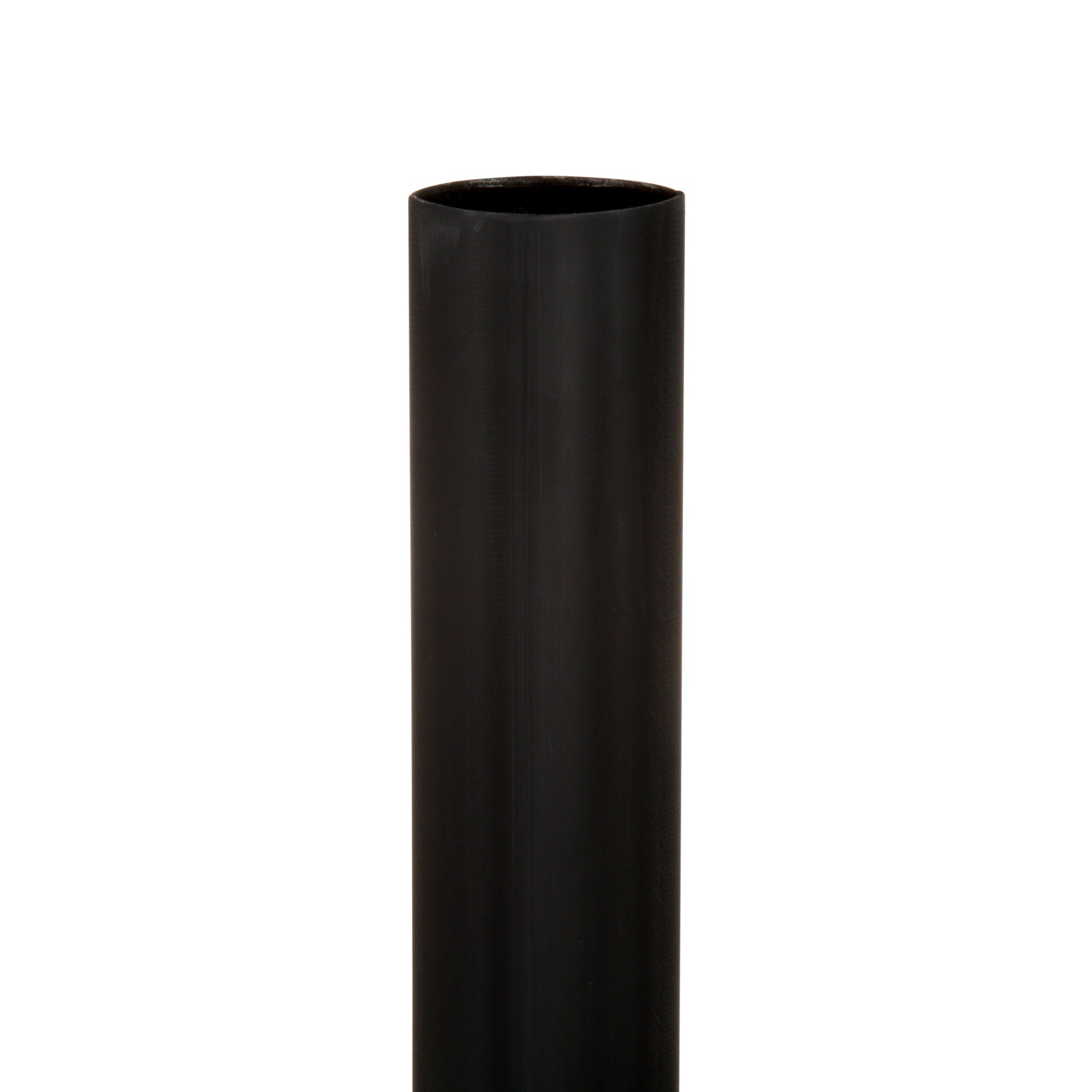

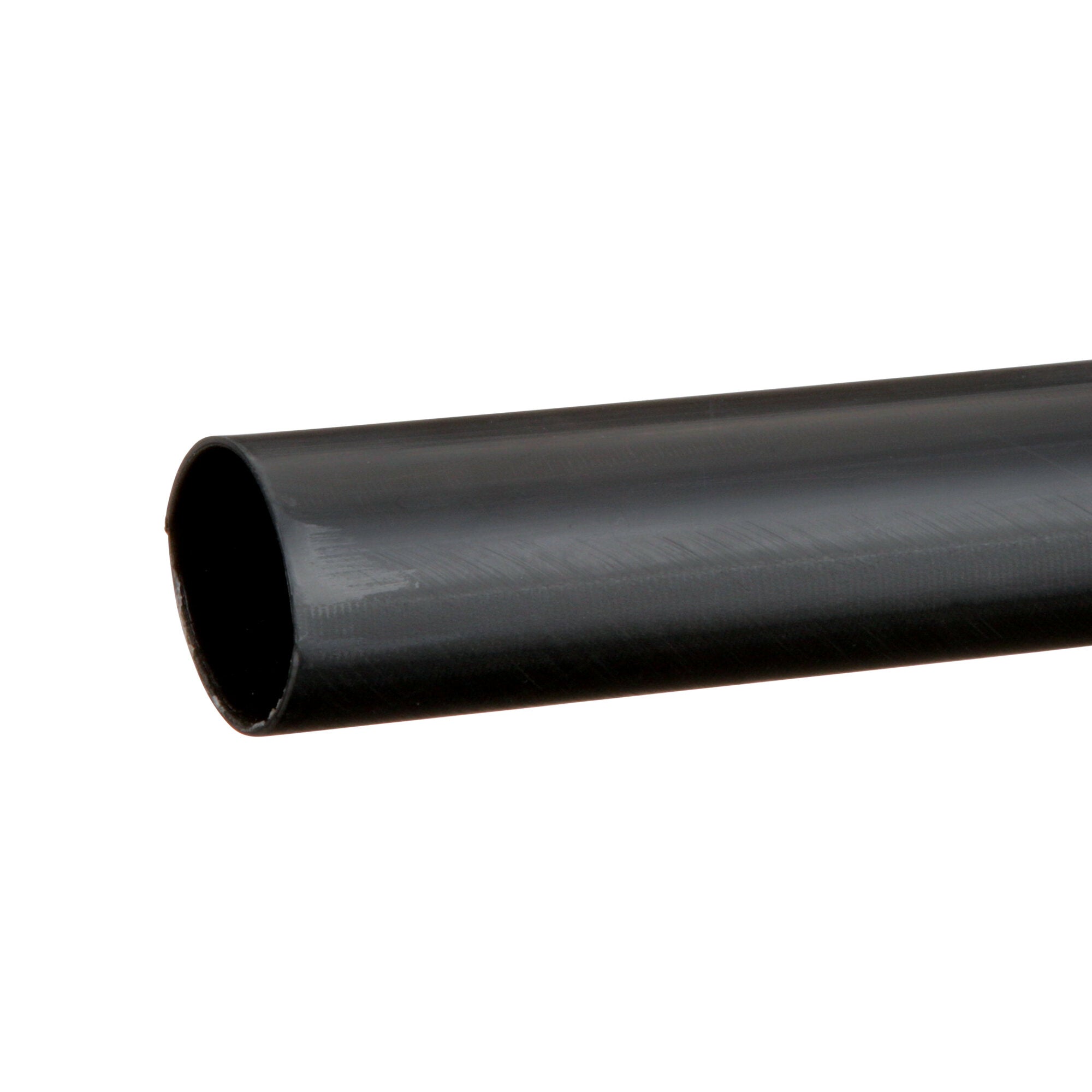

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG

by 3M
No reviews
Original price $645.99 - Original price $645.99
Original price
$645.99
$645.99 - $645.99
Current price $645.99
Free shipping
When you need electrical insulation, use a 3M ITCSN Heat Shrink Cable Sleeve. It offers excellent protection from moisture provided by the cross-linked polyolefin construction. This cable sleeve also provides excellent protection from chemicals, abrasions... Read more
Please allow 2 days for production.

Overview

3M

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG

When you need electrical insulation, use a 3M ITCSN Heat Shrink Cable Sleeve. It offers excellent protection from moisture provided by the cross-linked polyolefin construction. This cable sleeve also provides excellent protection from chemicals, abrasions and corrosion, and it has a 3:1 shrink ratio and is appropriate for all your 1 kV-rated applications.3M™ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Product Type
Sleeve
Splice Type
Heat Shrink
Tubing Type
Heavy Wall
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Cable Size Range
2-4/0 AWG
Conductor Sizes (Imperial)
2/0 AWG
Conductor Sizes (Metric)
120 mm²
Expanded Inner Diameter
1.1 in
Expanded Inner Diameter (Metric)
27.9 mm
Inner Diameter After Shrink (Imperial)
0.2 in
Inner Diameter After Shrink (Metric)
0.508 cm²
Inner Diameter Before Shrink (Imperial)
0.8 in
Inner Diameter Before Shrink (Metric)
2.032 cm²
Maximum Conductor Size (Imperial)
4/0 AWG
Maximum Conductor Size (Metric)
120 mm²
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Conductor Size (Imperial)
2 AWG
Minimum Conductor Size (Metric)
35 mm²
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to +110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1219 mm
Recovered Inner Diameter
0.37 in
Recovered Inner Diameter (Metric)
9.4 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Maximum Conductor Size Imperial
4/0 AWG
Maximum Conductor Size Metric
120 mm²
Minimum Conductor Size Imperial
2 AWG
Minimum Conductor Size Metric
35 mm²
Minimum Shrink Temperature Fahrenheit
250 °F
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
48.0
Other Details
Adhesive Lined
Yes
Applicable SAE-AMS-DTL-23053 Specifications
23053/15 class 2
Dielectric Strength (V/mil)
500 V/mil
Direct Bury
Yes
Elongation
4.75 %
Flame Retardant
No
Mil Spec
SAE-AMS-DTL-23053/15, Class 1
Minimum Expanded Tubing I. D.
0.8 in
Non-Corrosive
Yes
Shrink Ratio
4:1
Solution For
Access Network: FTTH/FTTB/CATV
Splice Configuration
Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
UL File Number
E-102356
Units Per Case
20.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Usage Information
Application Specifications
UL Listed 486 D for 600V, File Number E102356; CSA Certified File LR86335
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Adhesive-lined Polyolefin
Product Form
Sleeve-roll
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
ABS
Flammability Rating
Non-Flame Retardant
Specifications Met
UL 486D*
Packaging and Shipping
Case Quantity
20
