Scotchlok 562C Electrical IDC, 1,000 per bin

Scotchlok 562C Electrical IDC, 1,000 per bin

by 3M
$399.99 - $399.99
$399.99
$399.99 - $399.99
$399.99
Free shipping
Extended Handling May Be Required
3M Scotchlok Insulation Displacement Connector 562 is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant.3M™ Scotchlok™ Insulation Displacement Connector 562 is 600V rated for building... Read more

Overview

3M

Scotchlok 562C Electrical IDC, 1,000 per bin

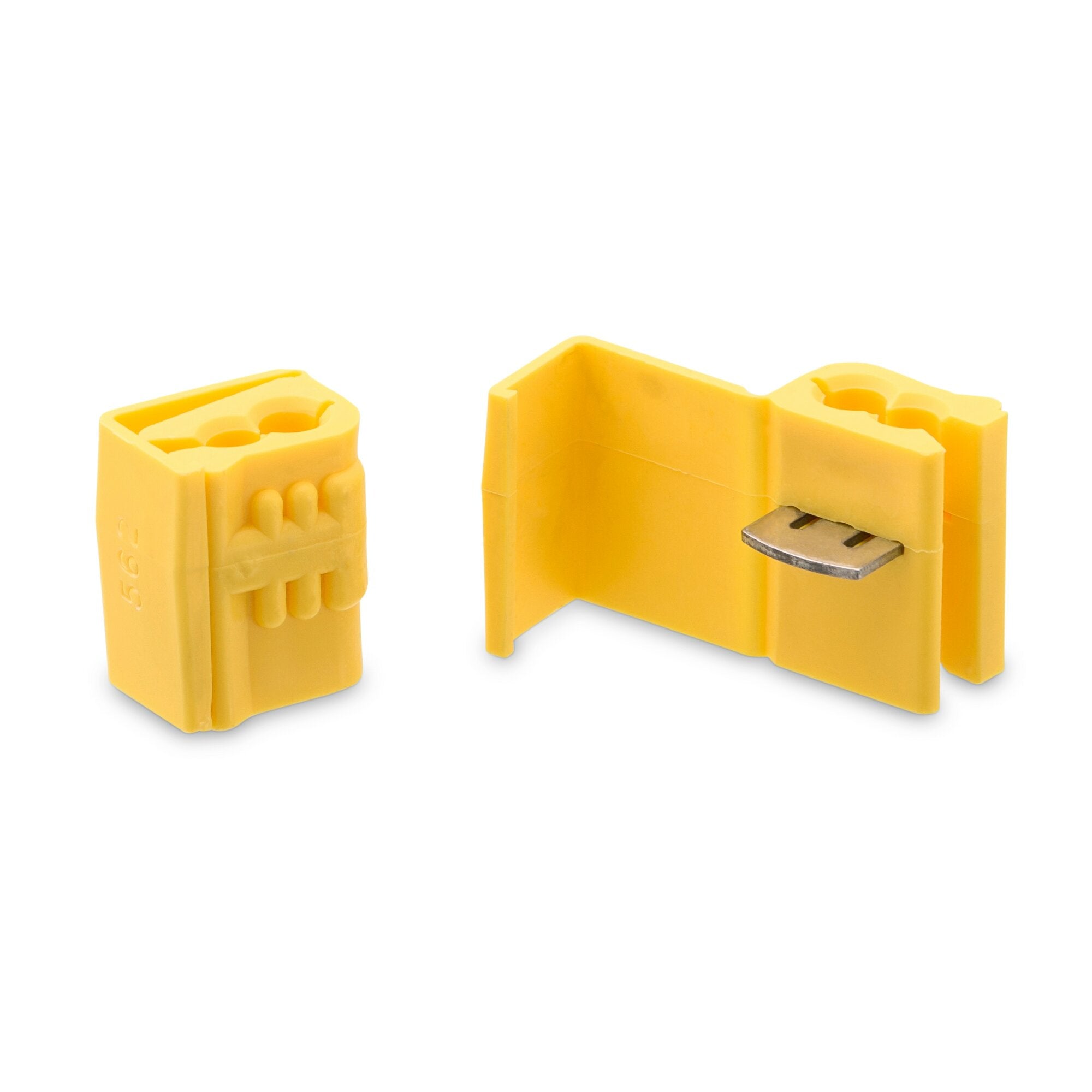

3M Scotchlok Insulation Displacement Connector 562 is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant.3M™ Scotchlok™ Insulation Displacement Connector 562 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
  • Yellow, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Rated for 32V applications
  • Accommodates 18 to 14 AWG solid/stranded
  • RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Connection Type
Double Run or Tap
Connector Style
Insulation Displacement
Product Type
Connector
Country Of Origin
United States
Sold As
Case
California Residents
Proposition 65 Warning
Dimensions and Specifications
Conductor Sizes (Imperial)
18 AWG
Conductor Sizes (Metric)
1 mm²
Insulation Outer Diameter (Imperial)
0.19 in
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Maximum Recommended Voltage Rating
32 V
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Run Maximum Insulation Outer Diameter (Imperial)
0.145 in
Run Maximum Insulation Outer Diameter (Metric)
3.7 mm
Tap Maximum Insulation Outer Diameter (Imperial)
0.145 in
Tap Maximum Insulation Outer Diameter (Metric)
3.7 mm
Voltage Application
Low Voltage
Conductor Sizes Imperial
22 AWG
18 AWG
Maximum Conductor Size Imperial
18 AWG
Maximum Conductor Size Metric
1
Minimum Conductor Size Imperial
22 AWG
Minimum Conductor Size Metric
.34 mm²
Width
10.39 in
26.4 cm
Height
7.76 in
19.7 cm
Length
11.89 in
30.2 cm
Volume
958.46 cubic inch
15706.42 cm3
Weight
116.8 oz
3311.22 g
Other Details
Flame Retardant
No
Grease Filling Against Corrosion
No
Moisture Resistant
No
Recommended Crimping Tool
E-9BM or 9 in. Linemans Pliers
Units Per Case
5000.0
Family
IDC for Electrical Applications
Material and Composition
Insulation Material
Polypropylene
Material
Plastic
Color and Appearance
Insulation Color
Red
Product Color
Red
