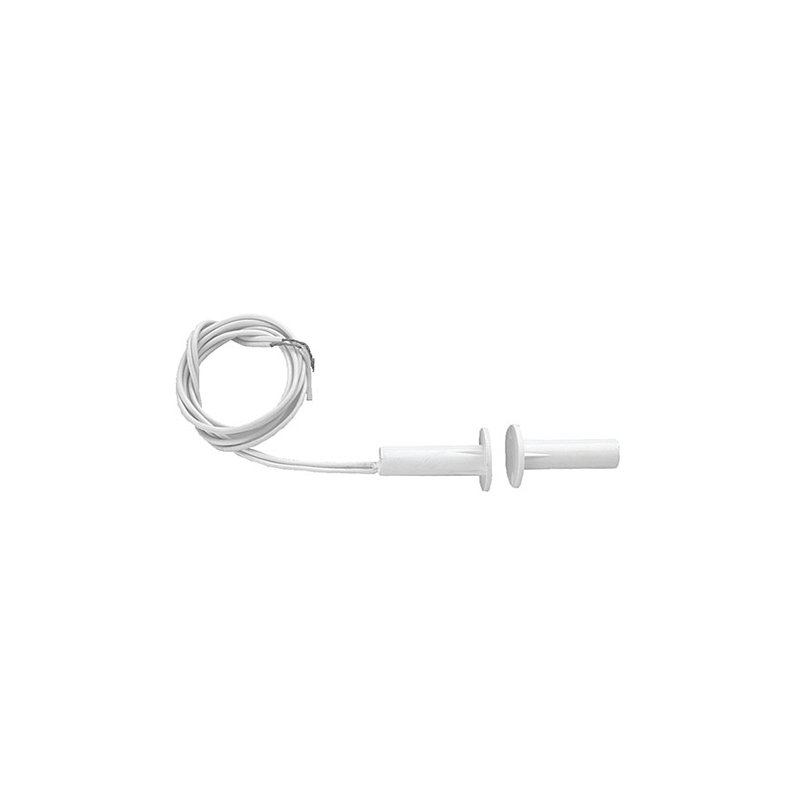

NTE 54-629 Recessed Magnetic Alarm Reed Switch

Features

3/8" Diameter Operate Gap 3/4" minimum Contact Rating: 10W/VA Contact Resistance: 150 milliohms. Contact Material: Ruthenium Oxide over Palladium Switching Voltage: 200 VDC max. Switching Current: 500mA max. Insulation Resistance: 10 gigohms Shock Resistance: 30G for 11mS Vibration Resistance: 20G (10 to 1000Hz) Life Expectancy: 20,000,000 cycles (resistive load, 12VDC, 250mA) Operating Gap: 0.748" (19mm) min. Terminal Type: Wire Leads Mounting Hole: 0.375" (9mm)
