About this item

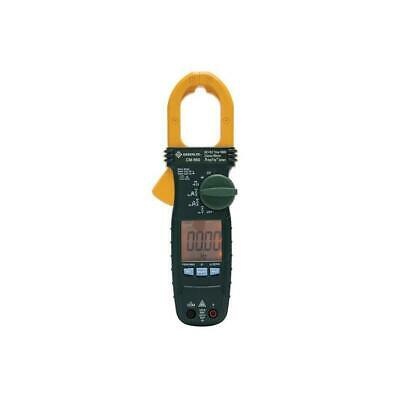

Greenlee CM-960-C Calibrated Clamp Meter, AC/DC, 600 Amp
- 52066402
- Greenlee
- Multimeters
Downloads
No files available.
Key points
- CM-960 Clamp meter with Certificate of Calibration
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
Description
CM-960 Clamp meter with Certificate of Calibration
Measures AC+DC current
AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Peak-RMS measures motor inrush current
Backlight & relative mode for added versatility
AmpTip™ increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Lifetime warranty with Greenlee
Amperage Measurement 60, 600 Amps AC+DC
Display LCD, 6000 Count
Frequency Rating Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to400 Hz
Includes (2) 1.5V AAA batteries, test leads, carrying case
Jaw Opening 1.18'' (30 mm)
Measurement Category CAT III 600V, CAT IV 300V
Replacement Part TSG-3 test leads, TC-10 carrying case
Resistance Measurement 600, 6k, 60k Ohms
Standard CAT III, C/US UL Listed, CE
True Power AC+DC True RMS
Voltage Measurement 600 Volts AC+DC
