About this item

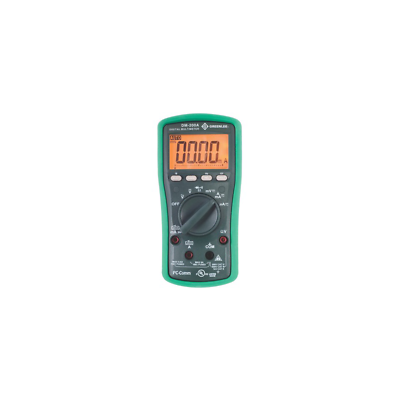

Greenlee DM-200A Digital Multimeter
- 52047801
- Greenlee
- Multimeters
Downloads
No files available.
Key points
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6,000 count display
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Description
Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes - non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
Amperage Measurement 600, 6000μA; 60, 600mA; 6, 8A
Battery (2) 1.5 V AAA
Capacitance 60, 600 nF; 6, 60, 600, 3000μF
Display Backlit LCD With 6,000 Count
Frequency Measurement 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
Includes (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
Measurement Category CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Replacement Part TSG-3 Sure-Grip Test Leads
Resistance Measurement 600 Ω; 6, 60, 600 kΩ; 6, 60 MΩ
Standard CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
Sub Brand ESM
Temperature Rating K Type, -58 To 1832°F (-50 To 1000°C)
Type Digital
Voltage Measurement 60, 600 mV; 6, 60, 600, 1000V
