Athena Power RM-1U100D Black 1U Rackmount Server Case - Server Chassis

$109.99
Free shipping
Product Overview: Athena Power RM-1U100D has been designed as a Space-Saving (Depth=10") rack/wall mountable mini-ITX server chassis. With this rackmount's 1x 5.25 open bay, the chassis is able to support up to 4x 2.5” HDDs,... Read more

Overview

Brand img

Athena Power RM-1U100D Black 1U Rackmount Server Case - Server Chassis

Athena Power RM-1U100D has been designed as a Space-Saving (Depth=10") rack/wall mountable mini-ITX server chassis. With this rackmount's 1x 5.25 open bay, the chassis is able to support up to 4x 2.5” HDDs, in addition its reduced depth size allows users who wish to daisy chain their systems to a systems rack to do so.  For maintenance and cooling, the RM-1U100D is built with a removable filter that is washable to remove and protect from dust & dirt that may hinder and hurt systems.  By including 2x front and 2x rear 40mm ball bearing fans, cooling isn’t a problem especially for power users who incorporate high end hardware into this rackmount.

Space Saving feature
With reduced depth size this 1U rackmount is perfect for saving space.  The size of this rackmount is a viable case for a mini-ITX motherboard.

Filter Cleaner
This rackmount includes an easier way to clean up gathered up dust and dirt that may hinder your server system.  The filter is strategically placed in front of the dual fans just behind the front bezel of the rackmount, this filter will reduce the clean-up time and mess that may gather in the rackmount, and is washable.

Includes 2x 40mm front and 2x rear fans

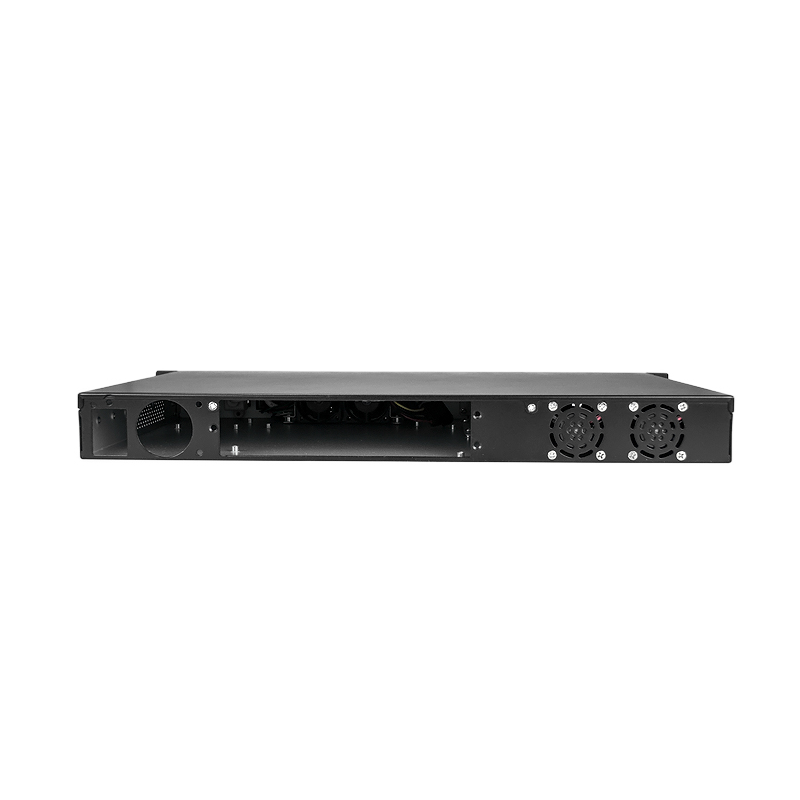

The 1U100D also comes with 2x 40mm front and rear exhaust fans that will keep your server cool by distributing cool air flow onto your motherboard and the rackmount’s hard drive as well.

Daisy chain capabilities
Server chassis usually can only maintain one 1U rackmount at a time but with the 1U100D’s daisy chain capabilities and because of its reduced size, one server tower slide can hold up to 2 mini ITX rackmounts at the same time.  Saving space and doubling the server power.


Product Details

General Information
Manufacturer
Athena Power
Part Number
RM-1U100D
Product Type
Server Rackmount
Bays
Number of External 5.25 Bays
1
Number of Total Expansion Bays
1
Interfaces Ports
Total Number of USB Ports
2 (Front)
Physical Characteristics
Color
Black
Material
Aluminum Front Bezel and 1.2mm Steel
Form Factor
1U
Weight (Approximate)
10 lbs
Technical Information
Motherboard Supported
Mini-ITX (6.7 in. x 6.7 in.)
Number of Fans Supported
4
Installed Fan Size
40mm
Power Description
Power Supply Installed
FlexATX Power Supply
