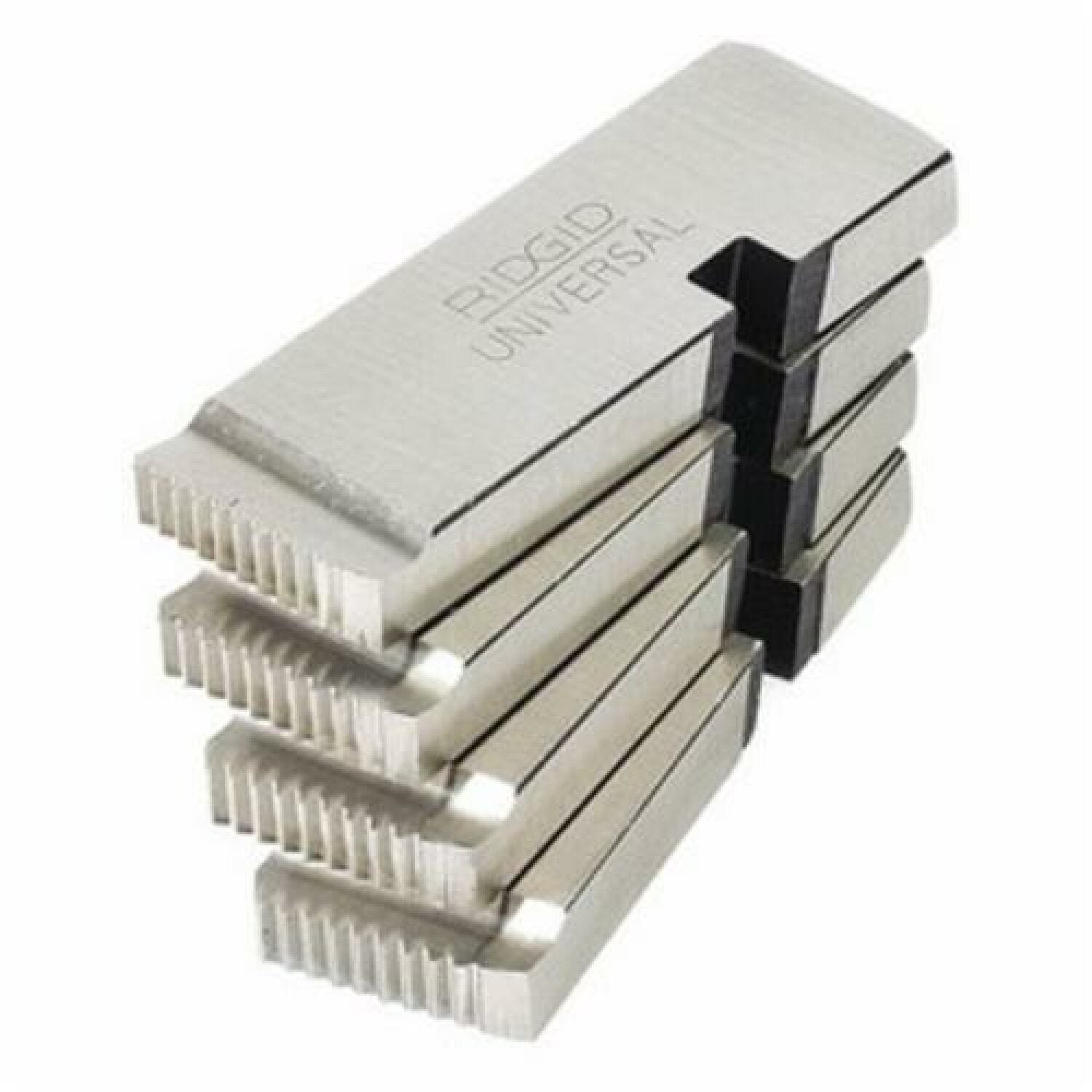

Details
Features
1/8 inch nominal pipe Size
27 Threads per inch
High-Speed
Right Hand Thread
Used in Universal Die heads
Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842
NPSM
Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily
With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
Dies are crafted from tool steel
Dies can be changed without removing the die head from the machine
Dies can be used in several different Die Heads from Wheeler Rex
