Details
Features

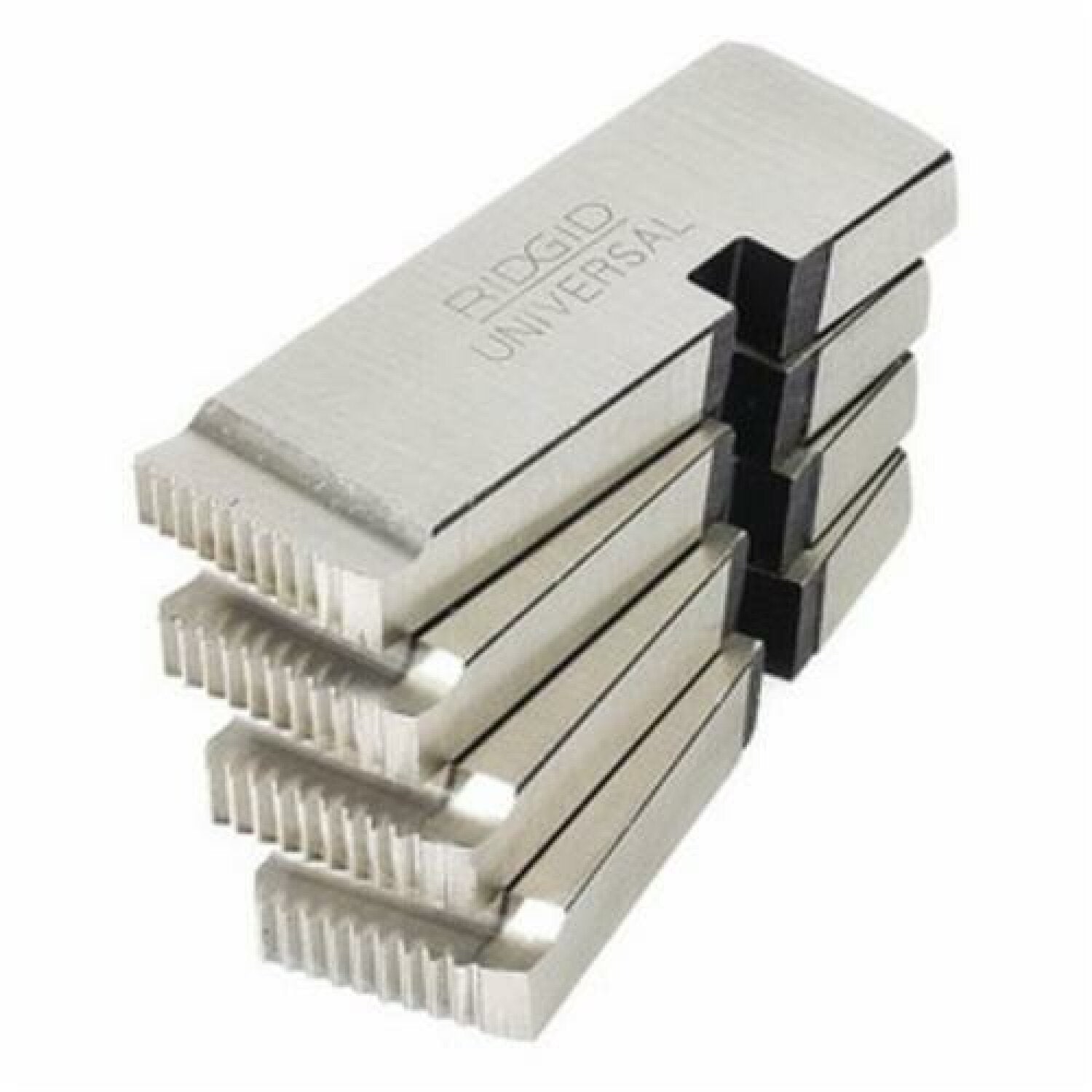

NPT
With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
1/4 - 3/8 inch nominal pipe Size
18 Threads per inch
High-Speed
Right Hand Thread
Used in 514 (LH), 515 (RH), 555 (RH), and 1/2 to 3/4 Dual Die Heads
Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily
Dies can be changed without removing the die head from the machine
Dies are crafted from tool steel
Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
