Velleman FF1N 5 x 20mm 1A Fast Acting Fuse

$5.75
Free shipping
Features "fast-acting" low breaking capacity Specifications current: 1A packaging: 10pcs/box test specifications: opening time: 1.5 In: t>1H 2.1 In: max. 30min. 2.75 In: 50mS< t <2S 4 In: 10mS< t <300mS 10 In: max. 20mS... Read more

Overview

Brand img

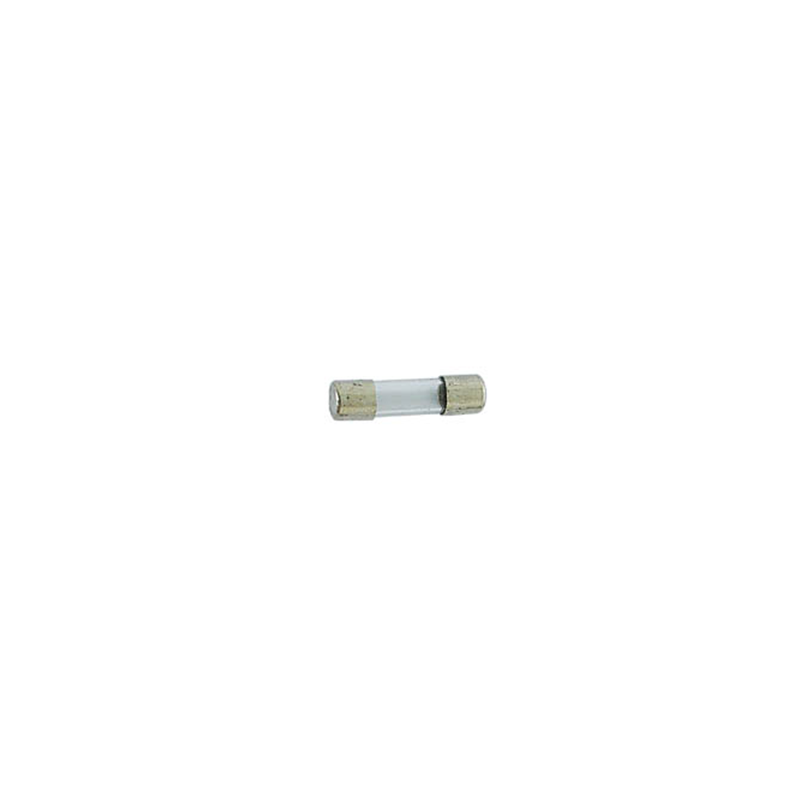

Velleman FF1N 5 x 20mm 1A Fast Acting Fuse

Features

  • "fast-acting"
  • low breaking capacity

Specifications

  • current: 1A
  • packaging: 10pcs/box
  • test specifications:
    • opening time:
      • 1.5 In: t>1H
      • 2.1 In: max. 30min.
      • 2.75 In: 50mS< t <2S
      • 4 In: 10mS< t <300mS
      • 10 In: max. 20mS
  • packaging: 10 pcs/pack
  • construction: glass cartridge, silvered caps
  • specifications: IEC127, BS4265 and CEE4
  • voltage rating: 250 VAC
  • breaking capacity: 35 A
  • endurance: cycling test as specified by IEC127 and BS4265
  • ambient temperature: 5°F to 95°F according to IEC/BS, up to 158°F

Product Details

General Information
Manufacturer
Velleman
Part Number
FF1N
Product Type
Fuse
