Velleman PROBE60S 60 MHz Insulated Oscilloscope Probe

No reviews
Original price $24.99 - Original price $24.99
Original price
$24.99
$24.99 - $24.99
Current price $24.99
Free shipping
Features complete probe set safety: conform with IEC-1010 cat II attenuation: 1:1 or 1:10 Specifications position x1: attenuation: 1:1 bandwidth: DC to 15 MHz rise time: 23.3 ns input resistance: 1 Mohm (input resistance scope) input capacitance: 46 pF... Read more

Overview

Velleman

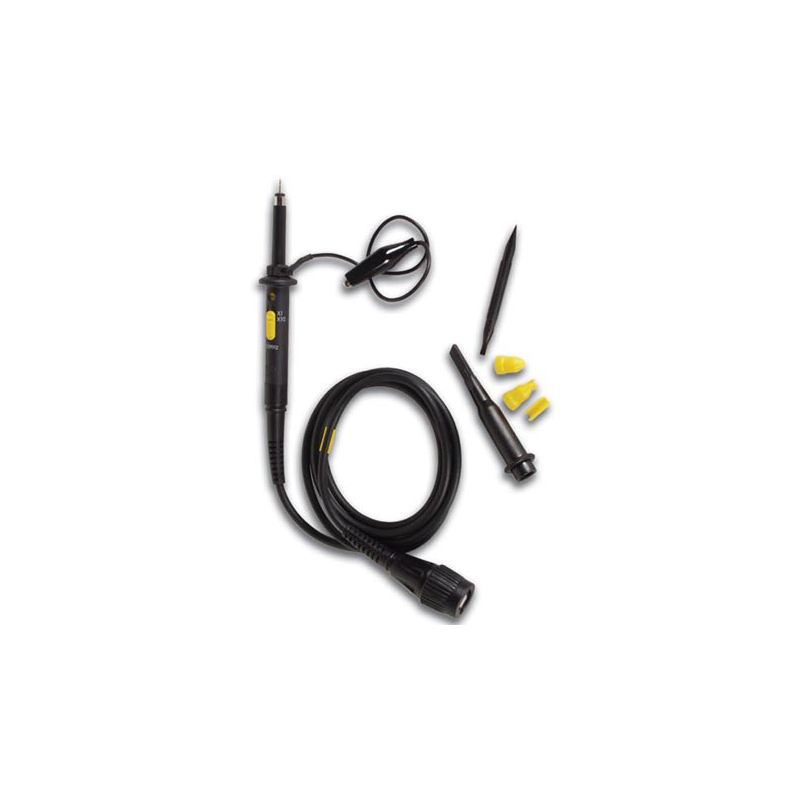

Velleman PROBE60S 60 MHz Insulated Oscilloscope Probe

Features

  • complete probe set
  • safety: conform with IEC-1010 cat II
  • attenuation: 1:1 or 1:10

Specifications

  • position x1:
    • attenuation: 1:1
    • bandwidth: DC to 15 MHz
    • rise time: 23.3 ns
    • input resistance: 1 Mohm (input resistance scope)
    • input capacitance: 46 pF + cap. scope
    • working voltage: 600 VDC incl. peak AC derating with frequency
    • position REF: -
  • position x10:
    • attenuation: 1:10
    • bandwidth: DC to 60 MHz
    • rise time: 5.8 ns
    • input resistance: 10 Mohm (if scope input = 1 Mohm)
    • input capacitance: ± 15 pF
    • working voltage: 600 VDC incl. peak AC derating with frequency
    • compensation range: 10 to 50 pF
  • cable length: 4 ft
  • remarks: with insulated BNC connector

Product Details

General Information
Manufacturer
Velleman
Part Number
PROBE60S
Product Type
Probe Set
