Dimensions and Specifications

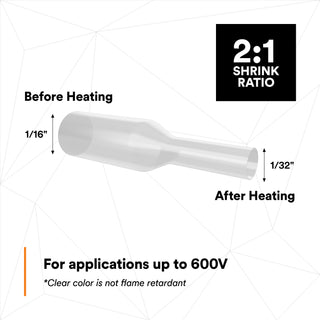

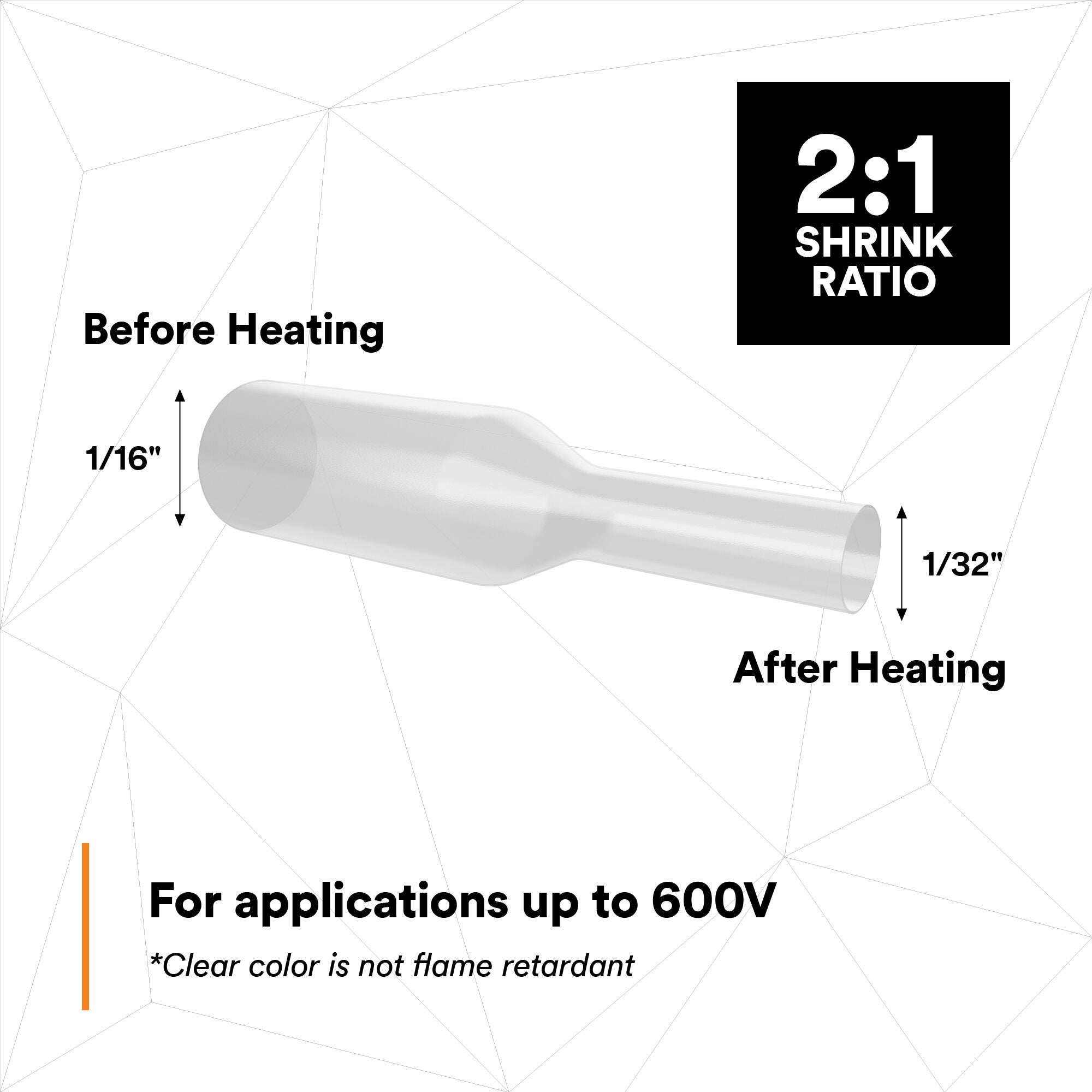

Expanded Inner Diameter
0.063 in
Expanded Inner Diameter (Metric)
1.6 mm
Inner Diameter After Shrink (Imperial)
0.031 in
Inner Diameter After Shrink (Metric)
0.787 mm
Inner Diameter Before Shrink (Imperial)
0.063 in
Inner Diameter Before Shrink (Metric)
1.6 mm
Maximum Operating Temperature (Celsius)
135 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
275 Degree Fahrenheit
Minimum Shrink Temperature (Celsius)
100 Degree Celsius
Operating Temperature (Celsius)
-55 to 135 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 275 °F
Operating Temperature Range (Celsius)
-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 275 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1.219 m
Recovered Inner Diameter
0.031 in
Recovered Inner Diameter (Metric)
0.8 mm
Size (Metric)
1.59 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
UL Bug Temperature (Celsius)
125 Degrees Celsius
UL Bug Temperature (Fahrenheit)
257 Degrees Fahrenheit

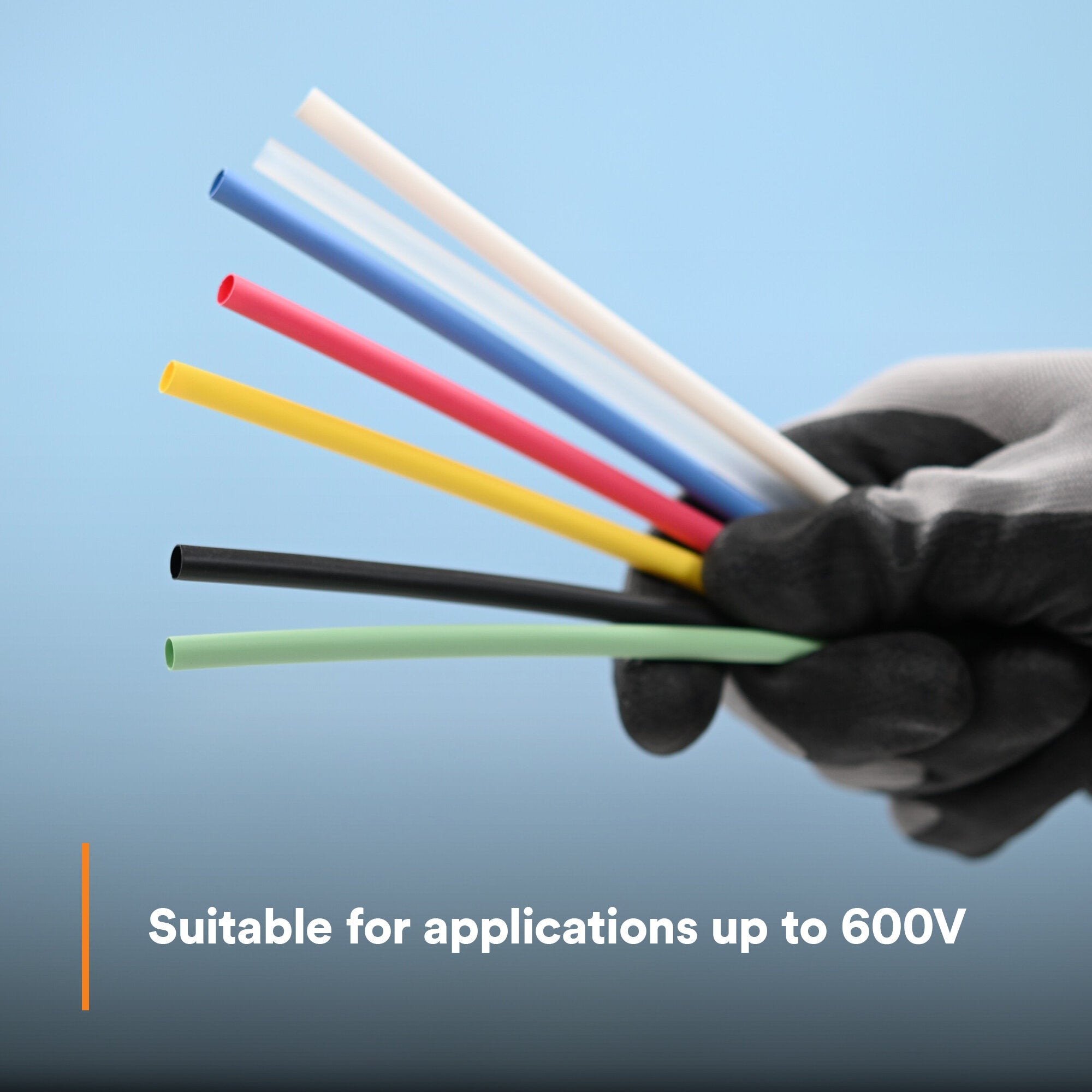

UL Bug Voltage
600 Volt
