Dimensions and Specifications
Conductor Sizes (Imperial)
1/0 AWG
Insulation Outside Diameter Range
0.25 - 0.80 Inch
Insulation Outside Diameter Range (Metric)
6.0 - 20.0 mm
Maximum Conductor Size (Imperial)
1/0 AWG
Maximum Conductor Size (Metric)
50 mm²
Maximum Insulation Outer Diameter (Imperial)
0.8 in
Maximum Insulation Outer Diameter (Metric)
20.0 mm
Maximum Operating Voltage
5 Kilovolt
Minimum Conductor Size (Imperial)
6 AWG
Minimum Conductor Size (Metric)
16 mm²
Minimum Insulation Outer Diameter (Imperial)
0.25 in
Minimum Insulation Outer Diameter (Metric)
6.4 mm
Voltage
5 kV

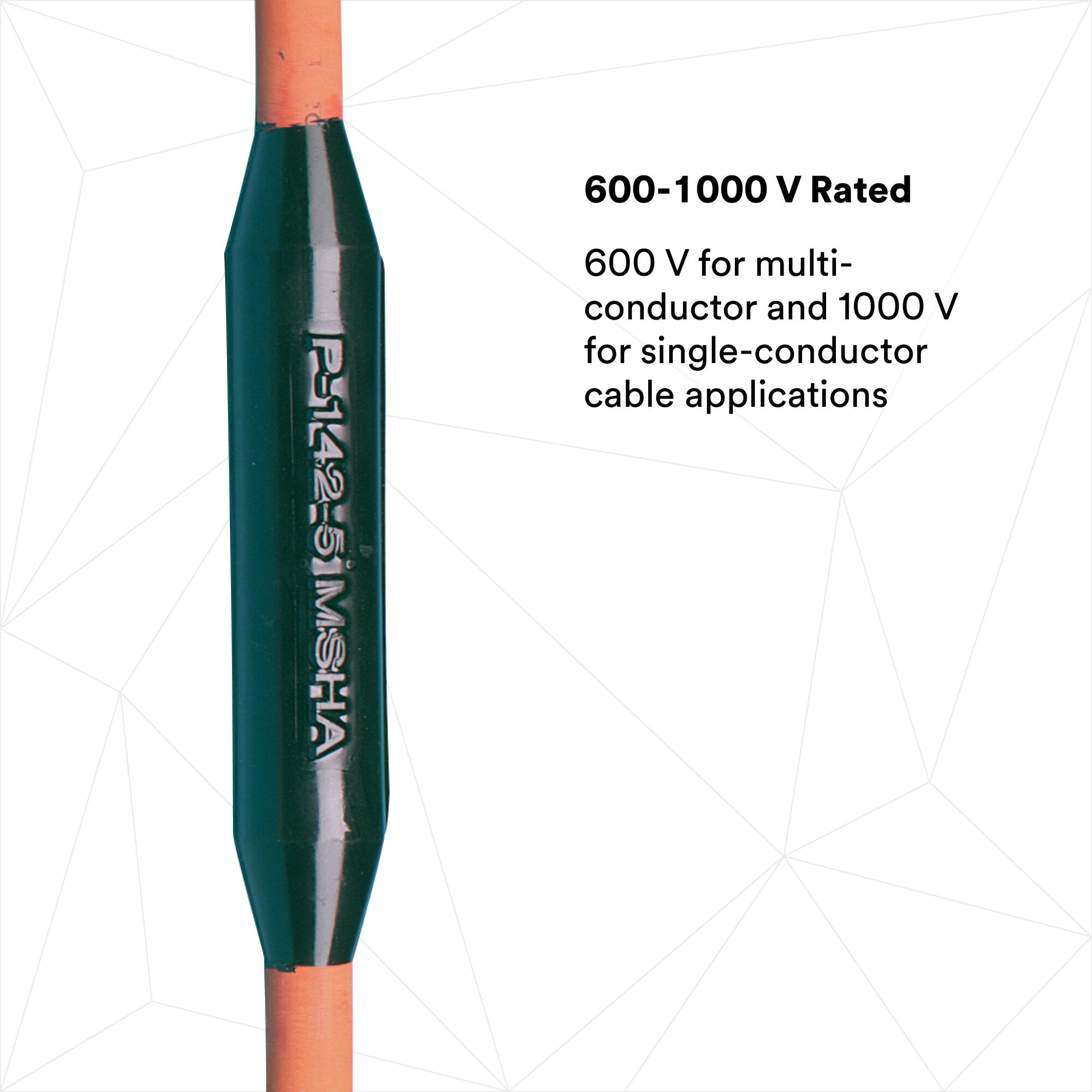

Voltage Rating
0.6/1 kV
Maximum Conductor Size Imperial
1/0 AWG
Maximum Conductor Size Metric
50 mm²
Maximum Insulation Outer Diameter Metric
20.0
Minimum Conductor Size Imperial
6 AWG
Minimum Conductor Size Metric
16 mm²
