Athena Power RM-1U1122HE12 Rackmount Server/Storage Chassis

No reviews
Original price $389.99 - Original price $389.99
Original price
$389.99
$389.99 - $389.99
Current price $389.99
Free shipping
Athena Power RM-1U1122HE12 is a 1U rackmount server/storage chassis features a 12-Port 12Gb/s mini-SAS HD backplane which supports up to 12 SAS/SATA Internface 2.5" SSD/HDD(up to 15mm Height Enterprise Drive) hot-swappable. This server/storage rackmount chassis... Read more

Overview

Athena Power

Athena Power RM-1U1122HE12 Rackmount Server/Storage Chassis

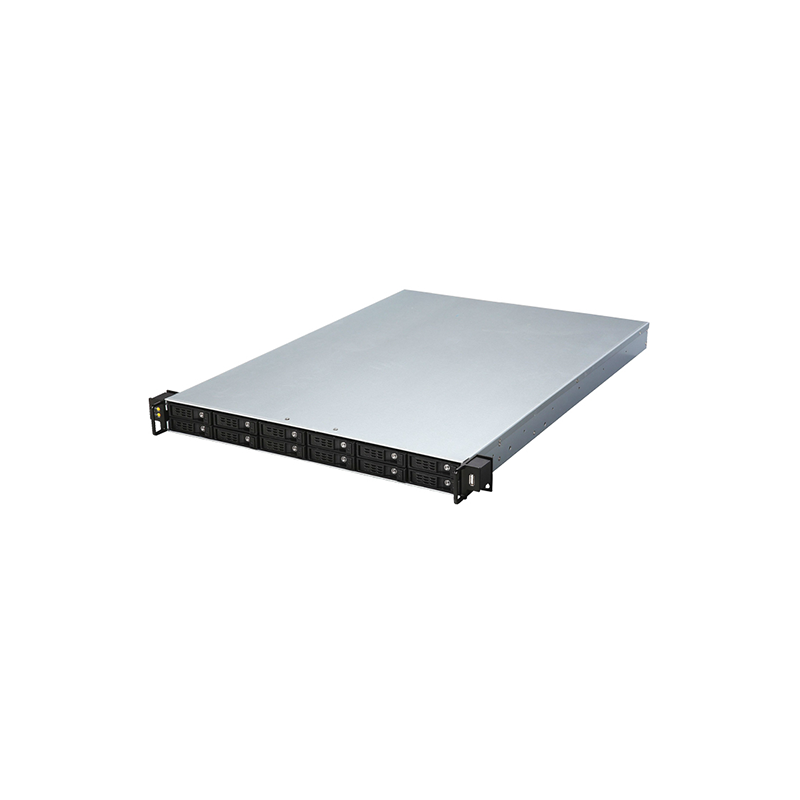

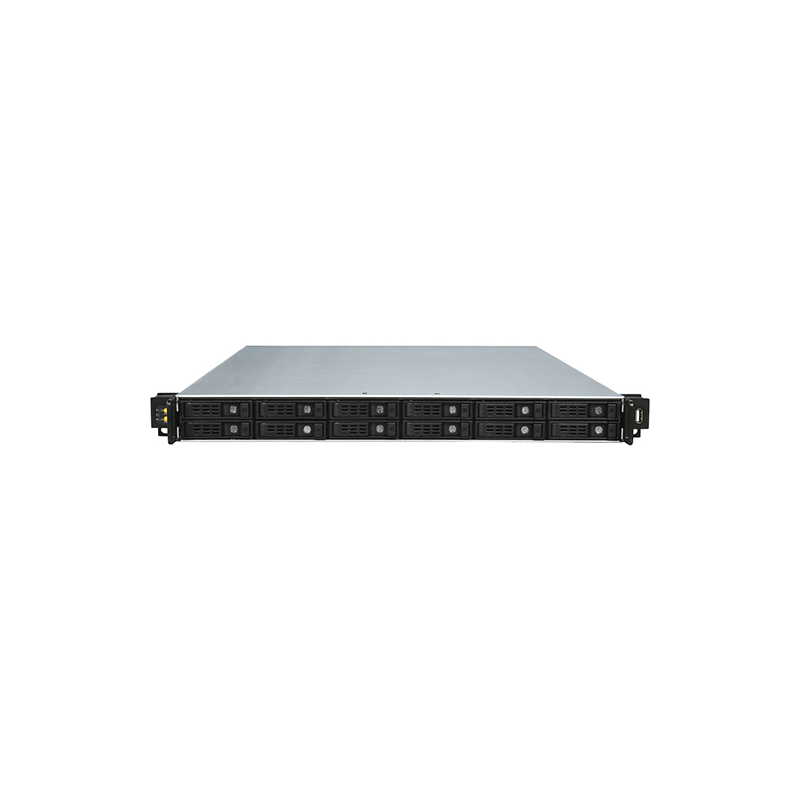

Athena Power RM-1U1122HE12 is a 1U rackmount server/storage chassis features a 12-Port 12Gb/s mini-SAS HD backplane which supports up to 12 SAS/SATA Internface 2.5" SSD/HDD(up to 15mm Height Enterprise Drive) hot-swappable. This server/storage rackmount chassis is compatible with a motherboard size up to E-ATX (12"x13").



Product Key Features:

  • Motherboard Compatibility: Mini-ITX (6.7"x6.7"), MicroATX (9.6"x9.6"), ATX (12"x9.6") or E-ATX (12"x13") Form Factor;
  • Feature a 12-Port 12Gb/s Backplane* and Support up to 12 SSD/HDD Hot-Swappable;

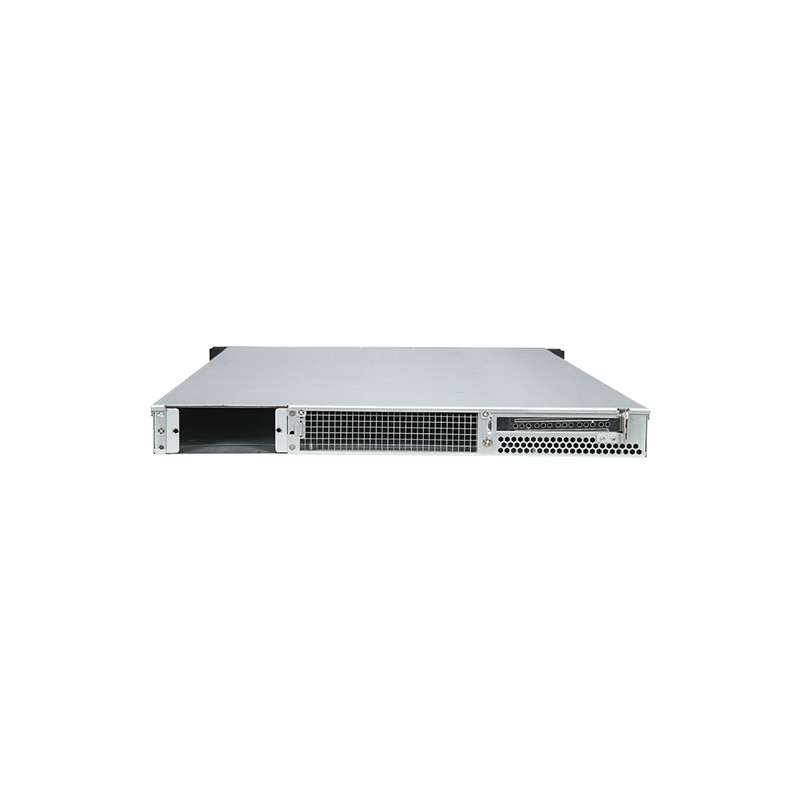

  • PSU Compatibility: 1U Redundant, 1U Single or FlexATX Form Factor;
  • Front Control Panel: 1 x USB2.0; Power On/HDD Activity/LAN1/LAN2/Warning LED Indicators;

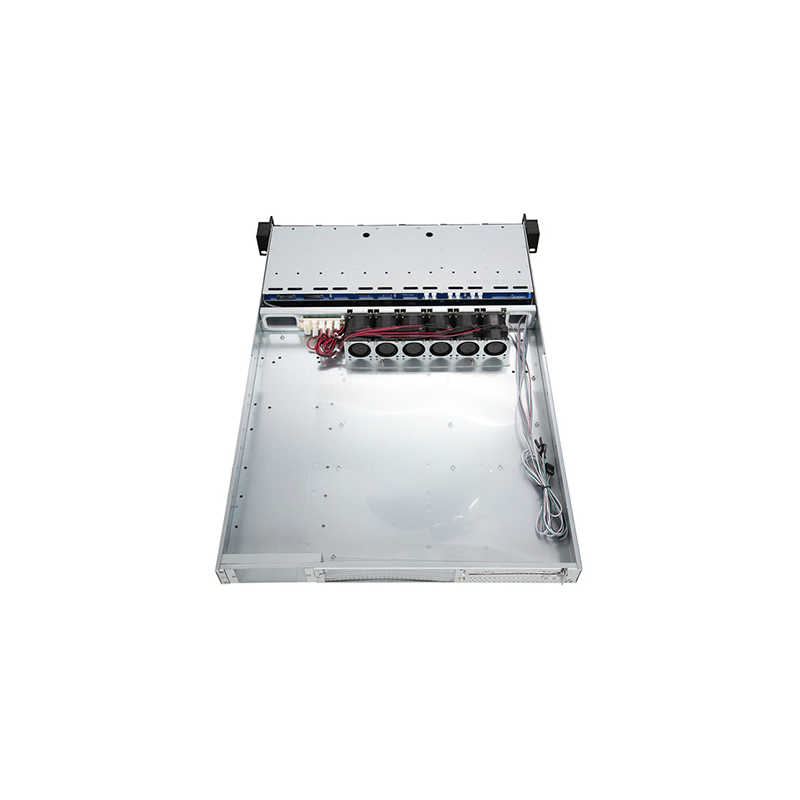

  • 6 x 40mm High CFM Central Fans;



* 12Gb/s Backplane Key Features:

  • Support up to 12 SAS (III, II, I) or SATA (III, II, I) Interface 2.5" SSD/HDD Hot-Swappable;
  • 3 x Mini-SAS HD SFF-8643 (4-Port);
  • 12 x Hot-Swappable 2.5" HDD Caddy**;
  • Backplane was designed installed in horizontal position in order to have max airflow;



** 2.5" HDD Caddy Key Features:

  • Compatible a 2.5" SSD/HDD (up to 15mm Height Enterprise Drive);
  • Designed with Anti-vibration and EMI Grounding (up to 5kV) Spring Fingers;
  • Front Bezel Ventilation Holes to Maximize Airflow;
  • Metal Triangle Security Lock;
  • LED Indicator Optical Lightpipe;

Product Details

General Information
Manufacturer
Athena Power
Part Number
RM-1U1122HE12
Product Type
Server Rackmount
California Residents
Bays
Number of Total Expansion Bays
12
Interfaces Ports
Total Number of USB Ports
0
Physical Characteristics
Color
Black/Silver
Technical Information
Motherboard Supported
MicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
E-ATX (12 in. x 13 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Power Description
Power Supply Installed
FlexATX, 1U Single, 1U Redundant
