Athena Power RM-2UWIN525 2U rack-mount server chassis

No reviews
Original price $162.99 - Original price $162.99
Original price
$162.99
$162.99 - $162.99
Current price $162.99
Athena Power RM-2UWIN525 is a 2U rack-mount server chassis which is integrated with a 2-Port USB3.0 and space-saving designed, also with following main features: Space-Saving Design: 21" Depth (Chassis dimensions: D 20-5/8" x W 17-1/8" x... Read more

Overview

Athena Power

Athena Power RM-2UWIN525 2U rack-mount server chassis

Athena Power RM-2UWIN525 is a 2U rack-mount server chassis which is integrated with a 2-Port USB3.0 and space-saving designed, also with following main features:

  • Space-Saving Design: 21" Depth (Chassis dimensions: D 20-5/8" x W 17-1/8" x H 3-1/2").

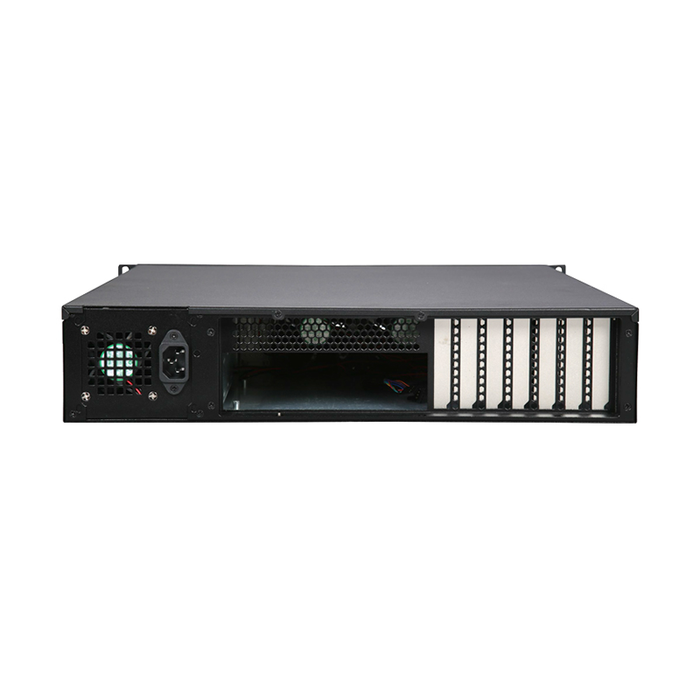

  • Motherboard Form Factor Compatibility: This rack mount chassis can be installed a motherboard form factor from Mini-ITX (6.7" x 6.7"), MicroATX (9.6"x9.6") up to ATX (12"x9.6"). In addition, in order to meet the modern server system configurations, this chassis is also featured 7 low-profile PCI expansion slots.
  • Drive Bay Configuration:
    • External 5.25" Drive Bay: 2.
    • Internal 3.5" Drive Bay: 3 at middle-front; 3 at rear.
  • Power Supply Unit Form Factor Compatibility: This chassis can install a standard ATX(PS2) single power supply unit in front of chassis. Athena Power ATX(PS2) power supply unit series is one of the top-of-the-line IPC PSU in the market.  Athena Power PSU is safety certified and high efficiency certified.

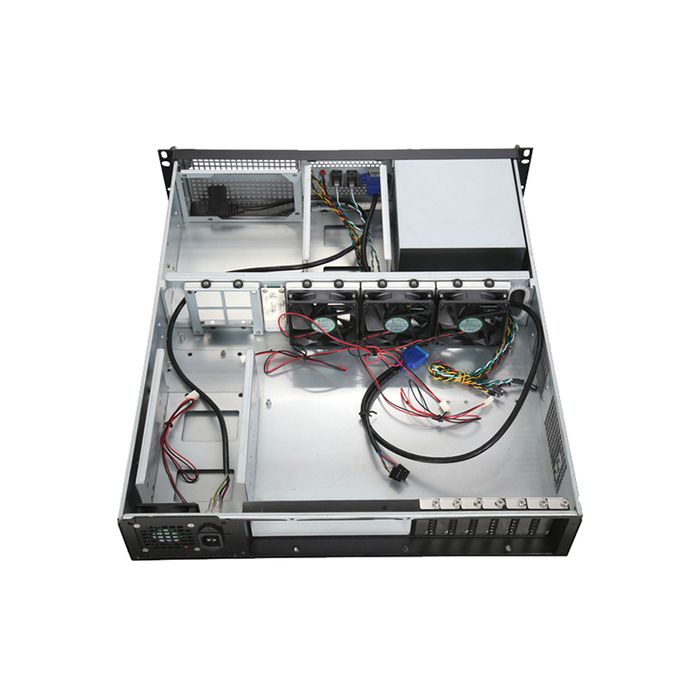

  • Thermal Solutions: This chassis features 3 central 80mm and 1 rear 60mm ball bearing fans with quick-install fan brackets individually; also a fan power distribution board to power chassis cooling fans. Furthermore, in order to have better thermal solutions, this chassis has plenty of ventilation holes.

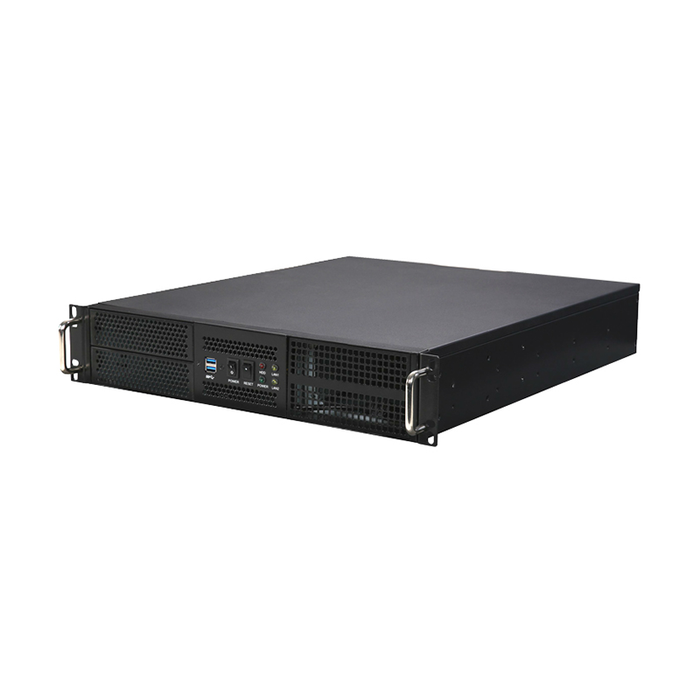

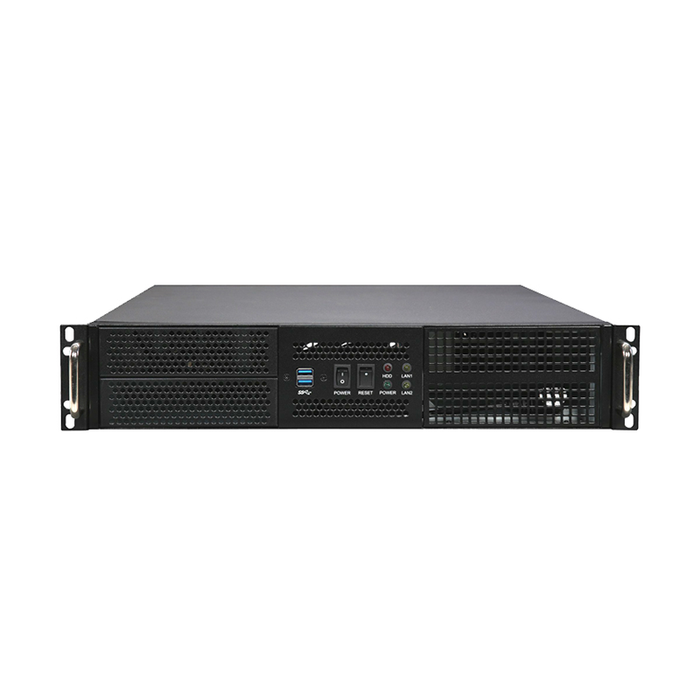

  • Front Panel Features:
    • A 2-Port USB3.0(/2.0).
    • LED Indicators: HDD activity, POWER ON, LAN#1 and LAN#2.
    • Switches: An ATX POWER on/off & RESET momentary rocker switches.

Product Details

General Information
Manufacturer
Athena Power
Part Number
RM-2UWIN525
Product Type
Server Rackmount
California Residents
Bays
Number of External 5.25 Bays
2
Number of Internal 3.5 Bays
4
Number of Total Expansion Bays
6
Interfaces Ports
Total Number of USB Ports
1 (Front)
Physical Characteristics
Color
Black
Material
T=1.2mm SECC
Form Factor
2U
Weight (Approximate)
19 lbs
Technical Information
Motherboard Supported
MicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Number of Fans Supported
4
Installed Fan Size
60mm and 80mm
Number of Total Expansion Slots
7
Power Description
Power Supply Installed
PS2/ATX Single @ front, PS3 Single @ front
