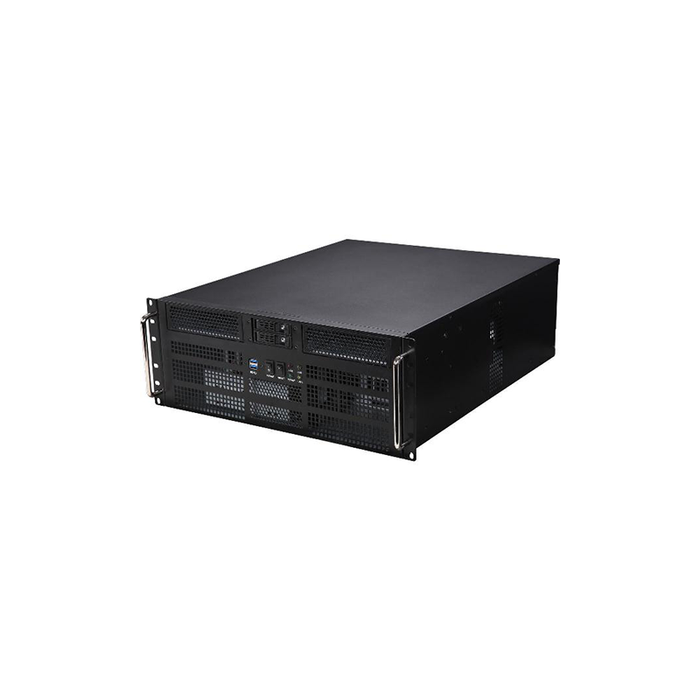

Athena Power RM-4U8G525 GPU Server Rackmount Chassis

No reviews
Original price $470.99 - Original price $470.99
Original price
$470.99
$470.99 - $470.99
Current price $470.99
Athena Power RM-4U8G525 GPU Server Rackmount Chassis is specially designed for GPU server applications; features 8 full-height PCI expansion slots and the add-in card length could be up to 13". This chassis is a 4U from factor IPC enclosure and... Read more

Overview

Athena Power

Athena Power RM-4U8G525 GPU Server Rackmount Chassis

Athena Power RM-4U8G525 GPU Server Rackmount Chassis is specially designed for GPU server applications; features 8 full-height PCI expansion slots and the add-in card length could be up to 13". This chassis is a 4U from factor IPC enclosure and compitable with the standard 19-inch rack. Furthermore, it features an IPC grade Hot-Swap 2*2.5"HDD SAS/SATA Dual-Channel backplane module.

  • This product is designed for:
    • GPU Server, Gaming Server, or Bitcoin Mining applications.
  • This product supports:
    • 4x Dual-slot 13" VGA/GPU cards;
    • Motherbaord form factor up to E-ATX (12"x13");
    • A PS2/ATX Single power supply, or a Mini-Redundant power supply.
  • This product features:
    • Enterprise/IPC Grade 2*2.5"SAS/SATA Hot-Swap Backplane Module;
    • 3x 120mm DC cooling fans;
    • 2-Port USB3.0A;
    • 2x External 5.25" Drive-bay.

Product Details

General Information
Manufacturer
Athena Power
Part Number
RM-4U8G525
Product Type
Server Rackmount
California Residents
Bays
Number of External 5.25 Bays
2
Number of Internal 3.5 Bays
2
Number of Total Expansion Bays
6
Interfaces Ports
Total Number of USB Ports
1
Physical Characteristics
Color
Black
Material
SECC (T=1.2mm)
Form Factor
4U
Technical Information
Motherboard Supported
MicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
E-ATX (12 in. x 13 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Number of Fans Supported
3
Installed Fan Size
120mm
Power Description
Power Supply Installed
Athena Power Mini-Redundant (500W~800W),Athena Power 2U Micro Redundant (550W~800W),Athena Power Standard PS2/ATX Single IPC (600W~950W),Athena Power 3U Single IPC (600W~800W)
