About this item

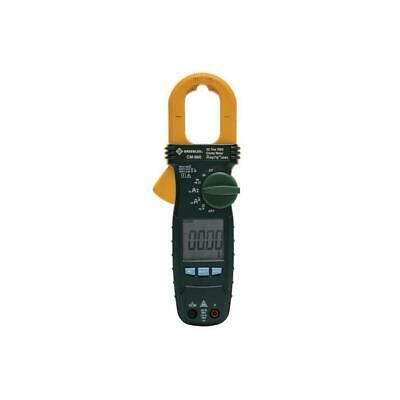

Greenlee CM-860-C, 600 AMP AC True RMS Clamp Meter Calibrated
- 52066404
- Greenlee
- Multimeters
Downloads
No files available.
Key points
- CM-860 Clamp meter with Certificate of Calibration
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
Description
CM-860 Clamp meter with Certificate of Calibration
Measures AC current
AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Backlight & relative mode for added versatility
AmpTip™ increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Lifetime warranty with Greenlee
Amperage Measurement 60, 600 Amps AC
Display LCD, 6000 Count
Frequency Rating Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to400 Hz
Includes (2) 1.5V AAA batteries, test leads, carrying case
Jaw Opening 1.18'' (30 mm)
Measurement Category CAT III 600V, CAT IV 300V
Replacement Part TSG-3 test leads, TC-10 carrying case
Resistance Measurement 600, 6k, 60k Ohms
Standard CAT III, C/US UL Listed, CE
True Power AC True RMS
Voltage Measurement 600 Volts AC/DC
