About this item

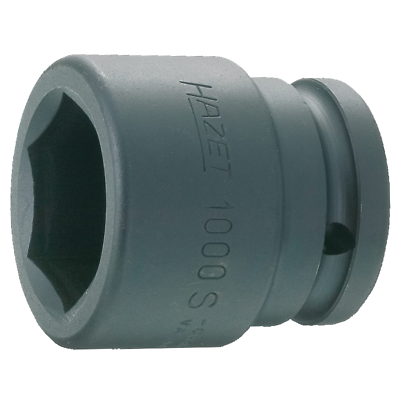

Hazet 1000S-24 6-point Impact Socket, 3/4" drive, 24mm
- 1000S-24
- Hazet
- 3/4" Drive Sockets
Features
Downloads
No files available.
Key points
- For extremely high load
- Short design
- With borehole for locking pin or safety spring and grove for O-ring
- Surface: phosphatized, oiled
- For impact operation
Description
For extremely high load
Short design
With borehole for locking pin or safety spring and groove for O-ring
Phosphatised, oiled
DIN 3129, ISO 2725-2
Wrench size: 24
Total length: 50 mm
Drive: Square, hollow 20 mm (3/4 inch)
Output: Outside hexagon profile
Diameter d1 (output side): 39.5 mm
Diameter d2 (drive side): 44 mm
