About this item
Downloads
No files available.
Key points
- 5 flat and 2 high drawers
- Complete with 147-piece tool assortment in Safety-Insert-System soft foam insert
- Large ball-bearing wheels (125 mm), easy maneuverability, even with high dynamic load
- 2 swivel castors with double stop function: fixed castors prevent inadvertent rolling of the trolley, fixed swivel bearing prevents the castors from swiveling, e.g. on inclined surfaces
- Protective ring prevents dirt and threads from getting in
Description
Product information

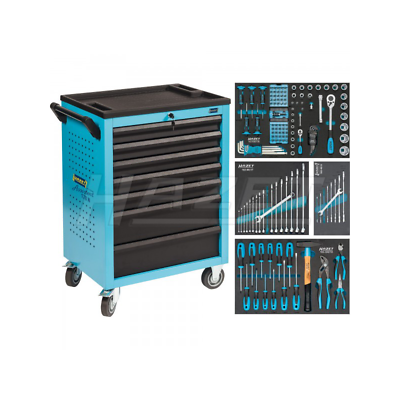

Tool trolley
5 flat and 2 big drawers
Complete with 147-piece tool assortment
Large ball-bearing-mounted wheels (125 mm), easy manoeuvrability, even with high dynamic load
2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley,
fixed swivel bearing prevents the castors from swivelling,
e.g. on inclined surfaces
Protective ring prevents dirt and threads from getting in
Grey non-marking elastic tyres enable smooth movement
Two-stage locking concept:
- Central locking, lockable with cylinder lock and 2 folding keys
- Individual drawer locking prevents unwanted drawer opening
- 100% sliding-out with ball-bearing drawer slides
Loading capacity (static): 480 kg
Worktop: plastic, resistant to solvent, with integrated storage wells
Loading capacity per drawer: 20 kg
Colour: HAZET-BLUE
Total length: 781 mm
Height: 1037 mm
Width: 498 mm
Drawers shallow: 5 x 80 x 527 x 348 mm
Drawers tall: 2 x 165 x 527 x 348 mm
Drawer size for order system: 3/3
Height of worktop: 1035
Number of fixed castors: 2 (∅ 125 mm)
Number of swivel castors: 2 (∅ 125 mm)
Number of tools: 147
