Key points
- Profiles / cross-sectional areas:
- red: 0.5–1.0 mm2 / AWG 20–16
- blue: 1.5–2.5 mm2 / AWG 16–14
- yellow: 4.0–6.0 mm2 / AWG 12–10
Description
Product information

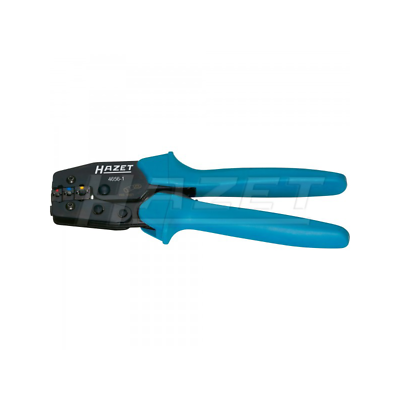

Application:
DIN cable lugs, pin-type cable sockets, flat pin terminals, flat pin bushings, circular connectors, snap-in receptacles, butt connectors and parallel connectors
Crimping of conductor crimp and insulation crimp in one working step
Intensive insulation crimp with special profile geometry
Integrated lock with releasing mechanism provides complete crimp
All stressed parts are specially tempered
Easy handling
Profile coding
Profiles / cross-sectional areas:
red: 0.5–1.0 mm2 / AWG 20–16
blue: 1.5–2.5 mm2 / AWG 16–14
yellow: 4.0–6.0 mm2 / AWG 12–10
Ergonomic soft grip handles with anti-slip covers
Surface: burnished, oiled
Made in Germany
Total length: 220 mm
Net weight: 0.64 kg
