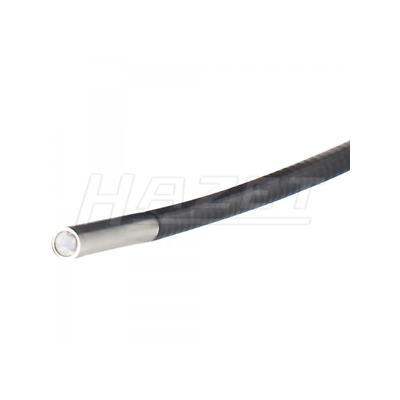

Hazet 4812N-5.5 Flexible probe, 5.5 mm
- 4812N-5.5
- Hazet
- Miscellaneous Tools
Downloads
No files available.
Key points
- Viewing direction of the camera: straight view (Front-View)
- Luminous source: 4 dimmable LEDs
- Camera resolution: 325 (H) x 250 (v) = 76800 pixels
- Aperture angle of the camera: horizontal 46°, vertical: 34°, diagonal: 56°
- Depth of field: 10 to 60 mm
Description
Product information
5.5 mm ∅
Viewing direction of the camera: straight view (Front-View)
Luminous source: 4 dimmable LEDs
For probes with new, improved connection (4812 N) to be used in conjunction with the operating panels of the sets 4812-10/4 S ∙ 4812-1/7 ∙ 4812-1/6 ∙ 4812-1/8
For connection with older operating panels, please use the adapter 4812-30
Camera resolution: 325 (H) x 250 (v) = 76800 pixels
Aperture angle of the camera: horizontal 46°, vertical: 34°, diagonal: 56°
Depth of field: 10 to 60 mm
Probe length: 1000 mm
Weight: 220 g
Total length: 1000 mm
Diameter: 5.5 mm
Net weight: 0.13 kg
Temperature range: 0°C – 55°C
