Ideal 30-503 Crimpmaster Tool w/ CATV-F Die Set

Description

Crimpmaster™ tool plus die set for RG-59/6/6 Quad F-Type crimp connectors

3 cavity hex die: 0.350” (8.89mm), 0.320” (8.13mm), 0.255” (6.48mm)

Use with IDEAL Crimp-on F connectors

Includes the 30-506 Crimpmaster™ frame

Die set also available individually (see part number 30-582)

F-type CATV RG-59, RG-6 Connectors

Hex, 0.350” (8.89mm), 0.320” (8.13mm), 0.255” (6.48mm)

Die set only for RG-59/6/6 Quad F-Type crimp connectors

3 cavity hex die: , 0.350” (8.89mm), 0.320” (8.13mm), 0.255” (6.48mm)

Use with IDEAL Crimp-on F connectors

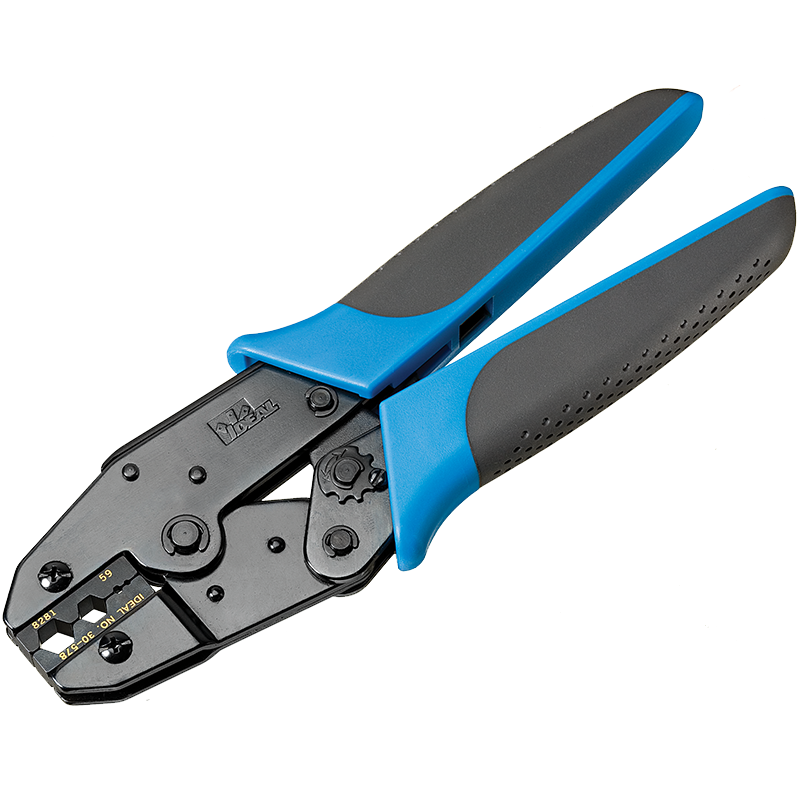

The Crimpmaster™ ratcheting crimp tool is a versatile hand held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs. 15+ die sets are available for the Crimpmaster.

The tool is designed for heavy daily professional use. The thick walled frame is manufactured from fine blanked high carbon steel with a black oxide coating. Large contoured, rounded edge handles provide comfort and leverage during the crimping process.

The Crimpmaster has a ratchet mechanism which prevents the user from under crimping a connector. The tool will not open, or release the connector being crimped until a full crimping cycle has been completed. The tool does have a ratchet release lever located between the handles to open the tool if a full cycle cannot be completed.

The tool can be fine adjusted to die set variations with the 6 position cam wheel. Precision ground die sets can be changed with a flat or philips screwdriver. The Crimpmaster is a professional grade, general purpose crimping tool that requires no factory calibration.

Heavy duty professional hand held ratcheting crimp tool

Compatible with over 15 different die sets for RF connectors, wire terminals and modular plugs

Provides a consistent crimp every time • Comfort grip contoured handles

Dies change quickly with a screwdriver

Adjustable cam for fine adjustments to the crimping cycle
