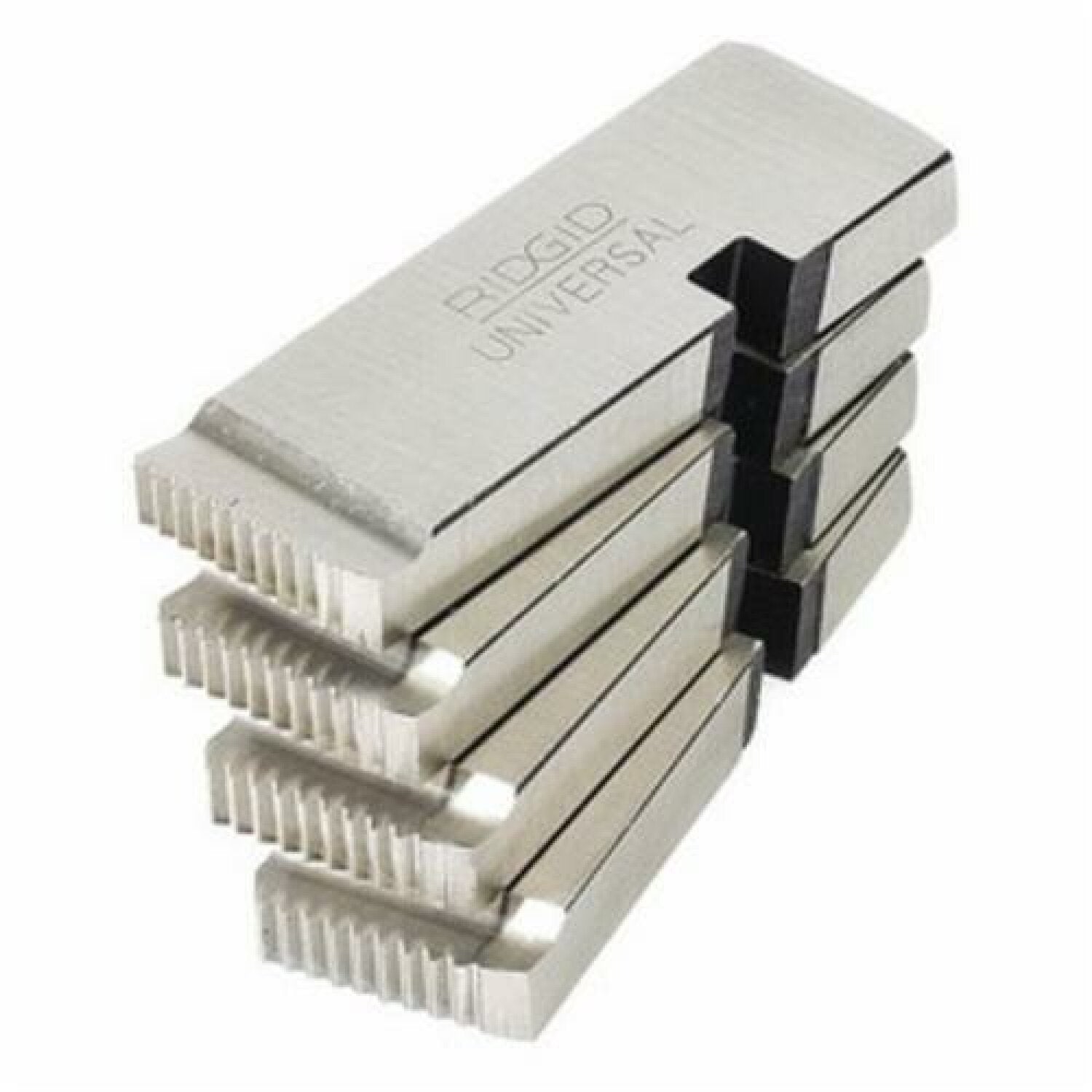

Ridgid 47820 NPT High Speed LH cut 1-2 inch 11 1/2 Thread/inch Universal Dies

Ridgid

United States

095691478207

47820

Universal Dies

Requires Left Hand Model Die Head
1 - 2 inch nominal pipe Size
11 1/2
High-Speed
Left Hand Thread
Used in Universal Die heads
Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842
NPT
Dies can be changed without removing the die head from the machine
Dies are crafted from tool steel
Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily
