Description

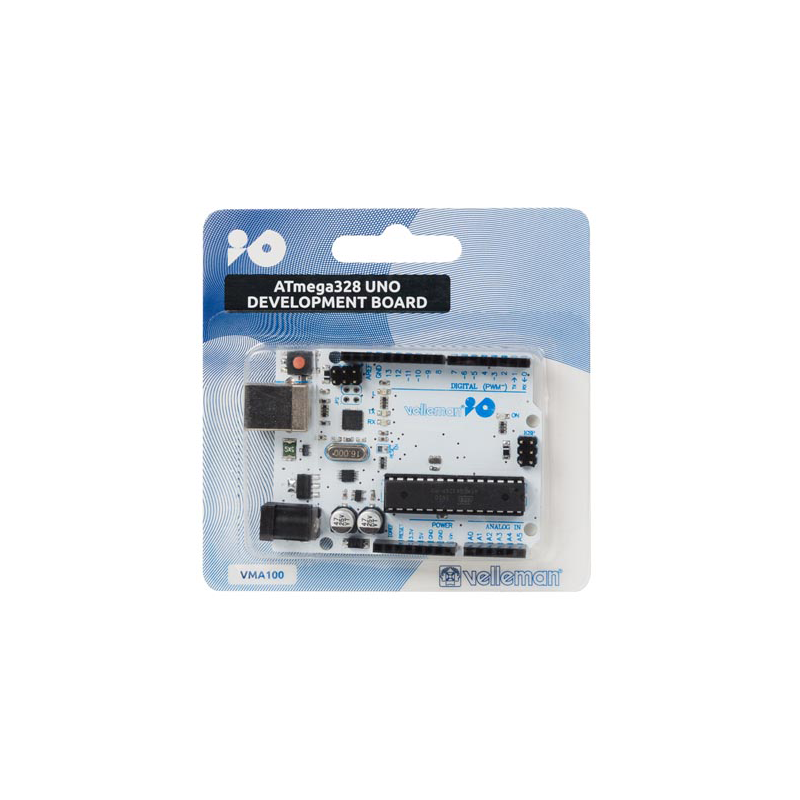

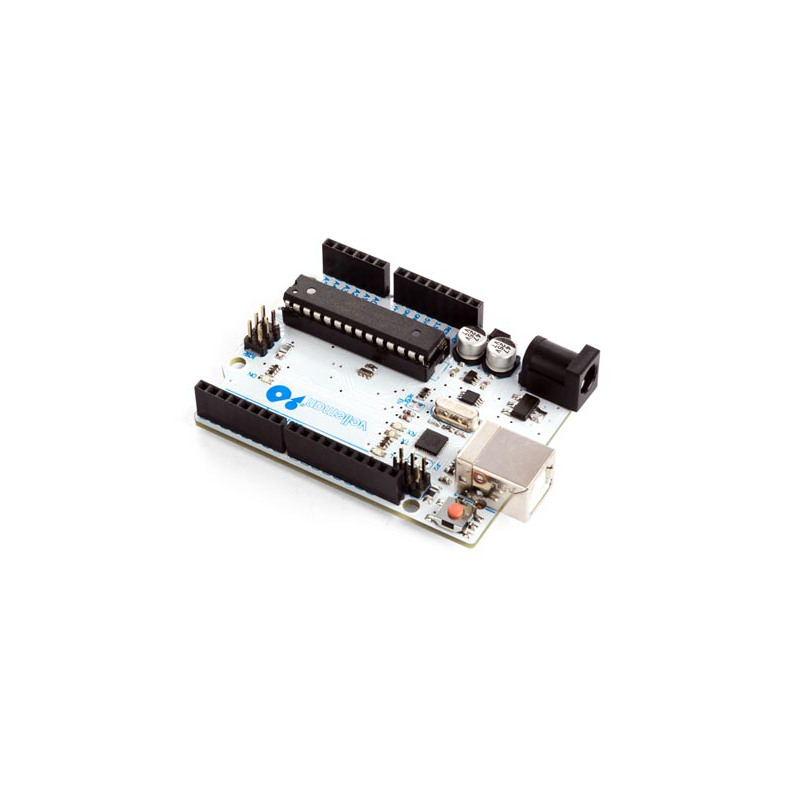

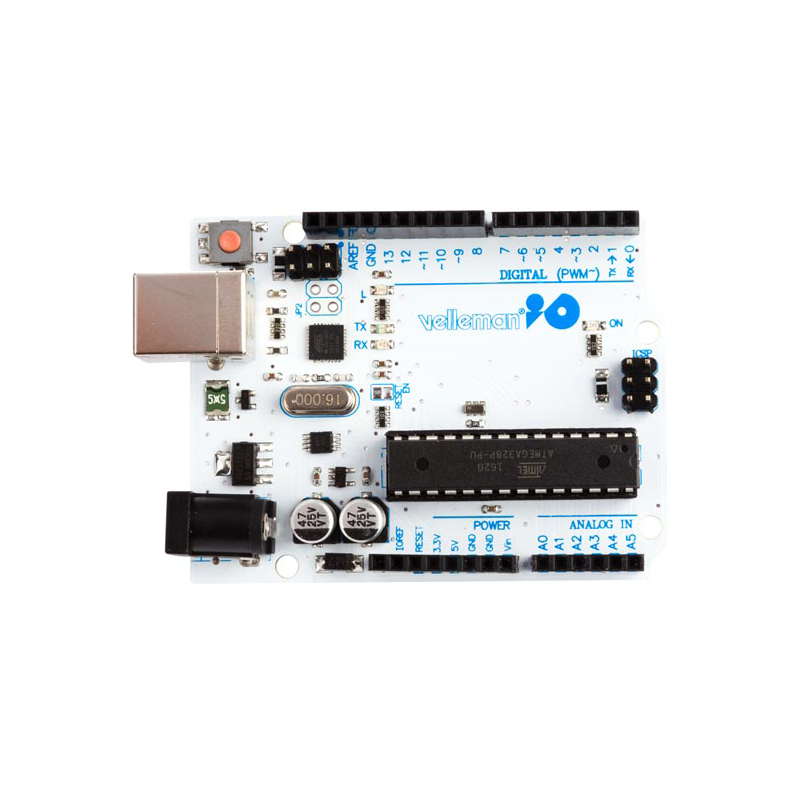

The VMA100 (Arduino® Uno compatible) is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analogue inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Specifications
- microcontroller: ATmega328
- operating voltage: 5 VDC
- input voltage (recommended): 7-12 VDC
- input voltage (limits): 6-20 VDC
- digital I/O pins: 14 (of which 6 provide PWM output)
- analogue input pins: 6
- DC current per I/O pin: 40 mA
- DC current for 3.3 V pin: 50 mA
- flash memory: 32 kB (ATmega328) of which 0.5 kB used by bootloader
- SRAM: 2 kB (ATmega328)
- EEPROM: 1 kB (ATmega328)
- clock speed: 16 MHz
