About this item

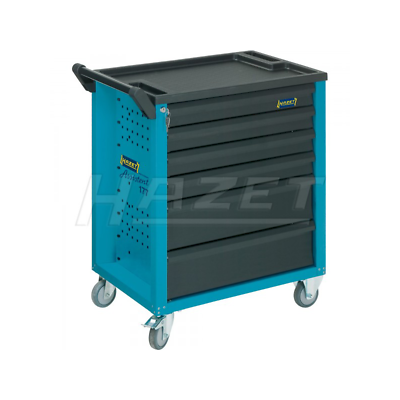

Hazet 177-6 Trolley
Downloads
No files available.
Key points
- Two-stage locking concept:
- - Central locking, lockable with cylinder lock and 2 keys
- -Individual drawer locking prevents unwanted drawer opening
- - 100% sliding-out with ball-bearing drawer slides
Description
Product information
Tool trolley
4 flat and 2 high drawers
Large ball-bearing wheels (100 mm),
easy manoeuvrability, even with high dynamic load
2 swivel castors (∅ 100 mm), 1 x lockable
With thread guard – protects the bearings against dirt and threads
Grey non-marking elastic tyres enable smooth movement
Two-stage locking concept:
- Central locking, lockable with cylinder lock and 2 keys
-Individual drawer locking prevents unwanted drawer opening
- 100% sliding-out with ball-bearing drawer slides
Loading capacity (static): 300 kg
Worktop: plastic, resistant to solvent, with integrated storage wells
Loading capacity per drawer: 20 kg
Colour: HAZET-BLUE
Made in Germany
Total length: 780 mm
Height: 915 mm
Width: 498 mm
Net weight: 62.8 kg
Drawers shallow: 4 x 80 x 527 x 348 mm
Drawers tall: 2 x 165 x 527 x 348 mm
Drawer size for order system: 3/3
Number of separation sheets: 6
Height of worktop: 881
Number of fixed castors: 2 (∅ 100 mm)
Number of swivel castors: 2 (∅ 100 mm)
Rectangular perforation of the side panels provides various fastening options for accessories such as paper bin, cable drum etc.
Side fastening panels, e.g. for HAZET tool hooks, article group 112
The drawers are equipped with one separation sheet each as standard
Suitable for HAZET “Safety-Insert-System” and plastic drawer inserts
Recessed side panels protect accessories from damage, being fastened within the trolley's outer dimensions
Handle firmly attached to the trolley
