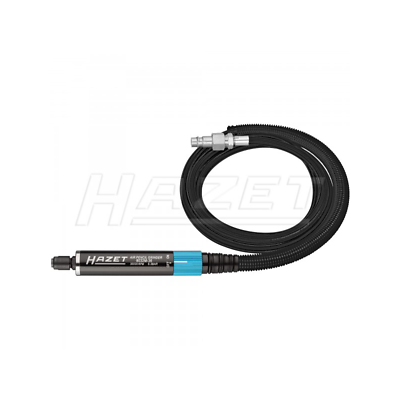

Hazet 9032M-36 Mini Die Grinder
- 9032M-36
- Hazet
- Pneumatic Tools
Downloads
No files available.
Key points
- Quiet operation: integrated exhaust hose removes exhaust air from the workpiece and dampens the sound
- Slim design
- 6 mm collet chuck with 3 mm adapter to accommodate both grinding pad dimensions
- Tool length: 150 mm
- Tool diameter: 22.2 mm
Description
Product information
Application:
Precise work with 3 mm und 6 mm grinding pads even in areas with restricted access
Quiet operation: integrated exhaust hose removes exhaust air from the workpiece and dampens the sound
Slim design
6 mm collet chuck with 3 mm adapter to accommodate both grinding pad dimensions
Tool length: 150 mm
Tool diameter: 22.2 mm
Hose length: 1500 mm
Air connection inlet: Inside thread (IG) 12.91 mm (1/4″)
Coupler plug: nominal size 7.2 (included)
Hose diameter (recommended): 5 mm
Working pressure (bar): 6.3
Sound power level: 85.8 db(A) Lp W
Vibration acceleration: 1.80 m/s2
Power in watts: 224 Watt (0.305 PS)
Total length: 150 mm
Net weight: 0.38 kg
Sound pressure level: 78.7 dB(A) Lp A
Revolutions per minute: 30000
Air requirement: 43.7 l/min (0.7 l/sec)
