About this item

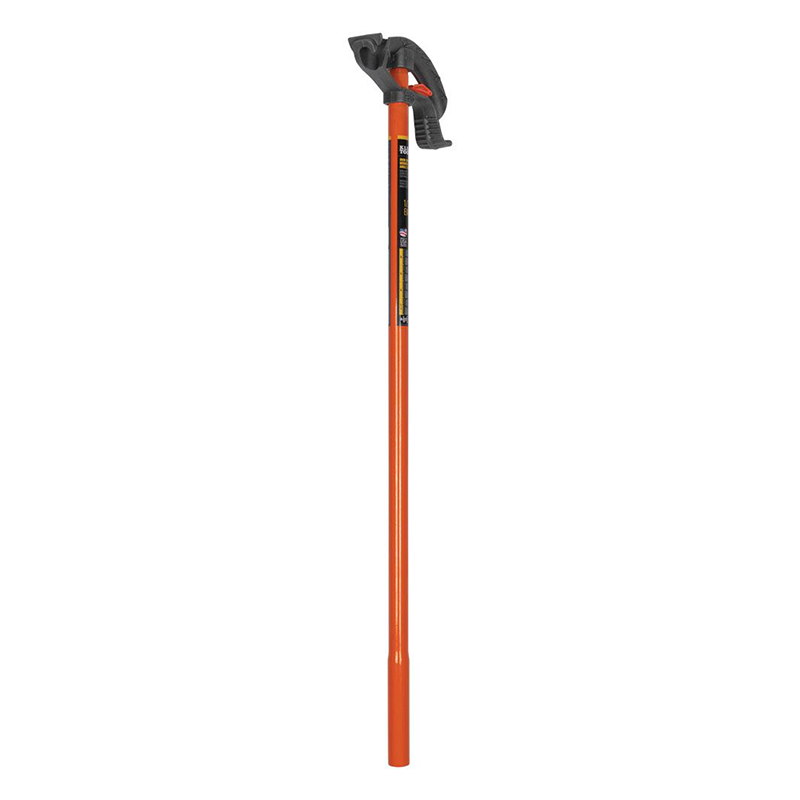

Klein Tools 51603 Iron Conduit Bender 1/2-Inch EMT with Angle Setter
Key points
- 1/2-Inch assembled Iron Bender includes Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
- Heavy duty cast ductile iron has the durability needed on the job site
- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
- Wide foot pedal provides excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends
Description
One per Order
Klein Tools? conduit benders with Patent Pending Angle Setter technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
1/2-Inch assembled Iron Bender includes Klein?s unique Angle Setter technology for time-saving, repeated accurate bends; Patent pending Angle Setter for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
Heavy duty cast ductile iron has the durability needed on the job site
Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
Wide foot pedal provides excellent stability, leverage, and comfort
Interior hook surface prevents conduit from rolling or twisting during bends
Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
Features Klein?s 1/2-Inch Angle Setter (Cat. No. 51611) that creates a hard stop for quick, accurate, and consistent bends
Specifications:
Type: Iron Conduit Bender
L x W x H: 1.7" (4.4 cm) x 8.1" (20.6 cm) x 43.1" (109.5 cm)
Material: Iron
Handle Length: 38" (96.5 cm)
Centerline Bend Radius: 4''- Stub-up Height 5'', Centerline Radius 4-5/8''
Thinwall/EMT: 0.5" (1.3 cm)
Conduit Size: 1/2"
Conduit Type: EMT
Marking: 10°, 22°, 30°, 45°, 60°
With a head made of cast iron and a bar made of tempered steel these conduit benders can withstand the rigors of conduit bending, choose from different sizes
Set the angle easily with the slidable angle setter
Spare heads and handles can be purchased as well
