Klein Tools 69149P Multimeter, Non-Contact Volt Tester, Receptacle Tester Kit
Downloads
No files available.
Key points
- The MM300 multimeter measures AC/DC voltage, DC current and resistance and has a safety rating of CAT III 600V, Class 2, Double insulation
- Non-Contact Voltage Tester Cat. No. NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
- NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000V AC power operating range
- Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
- Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
Description
One per Order

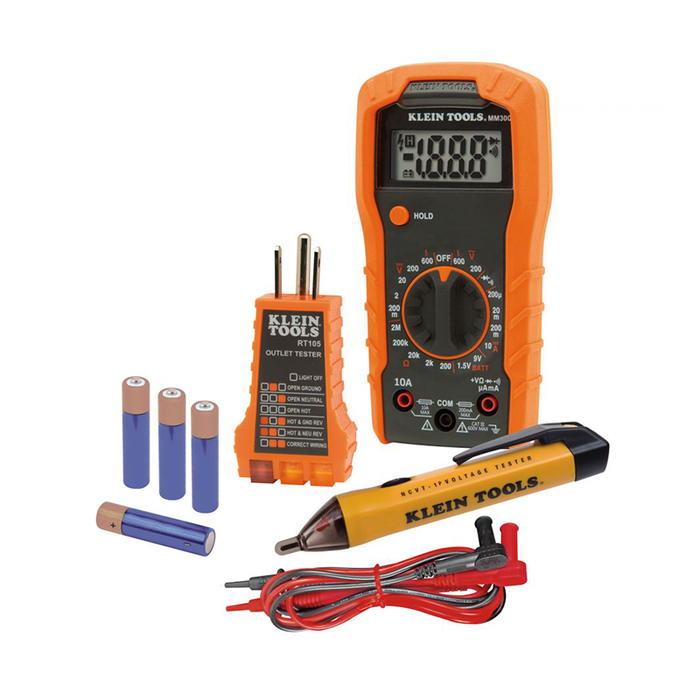

Klein Tools Multimeter Test Kit contains Cat. No. MM300 (Manual-Ranging Digital Multimeter), Cat. No. NCVT1P (Non-Contact Voltage Tester) and Cat. No. RT105 (Receptacle Tester). The MM300 measures DC current, AC/DC voltage and resistance. The NCVT-1P automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT105 detects the most common wiring problems in standard receptacles.
The MM300 multimeter measures AC/DC voltage, DC current and resistance and has a safety rating of CAT III 600V, Class 2, Double insulation
Non-Contact Voltage Tester Cat. No. NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000V AC power operating range
Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
MM300 multimeter tests continuity with visual and audible continuity indicators
Test leads included for Cat. No. MM300; batteries included for Cat. Nos. NCVT1P and MM300
Specifications:
Type: Electrical Test Kit
Application: Testing and Measuring Voltage
Special Features: MM300: Low Battery Indicator; NCVT-1P: Pocket Clip
L x W x H: 6'' (15.2 cm) x 3.16'' (8 cm) x 1.78'' (4.5 cm)
Material: Polymer Body and Electronic Components
Batteries: MM300: 2 x AAA; NCVT-1P: 2 x AAA
Included: Manual-Ranging Multimeter, 600V (Cat.No. MM300), Non-Contact Voltage Tester Pen, 50 to 1000V AC (Cat. No. NCVT-1P), Receptacle Tester with Test Leads and Batteries (Cat. No. RT105)
Tester is designed for 600V, up to 10A (DC) and measuring resistance up to 2 Megaohms – tester includes leads and accessories
Test for voltage without contact – non-contact tester gives a clear indication of voltage with red or green light
Diagnose wiring conditions with the plug in tester
