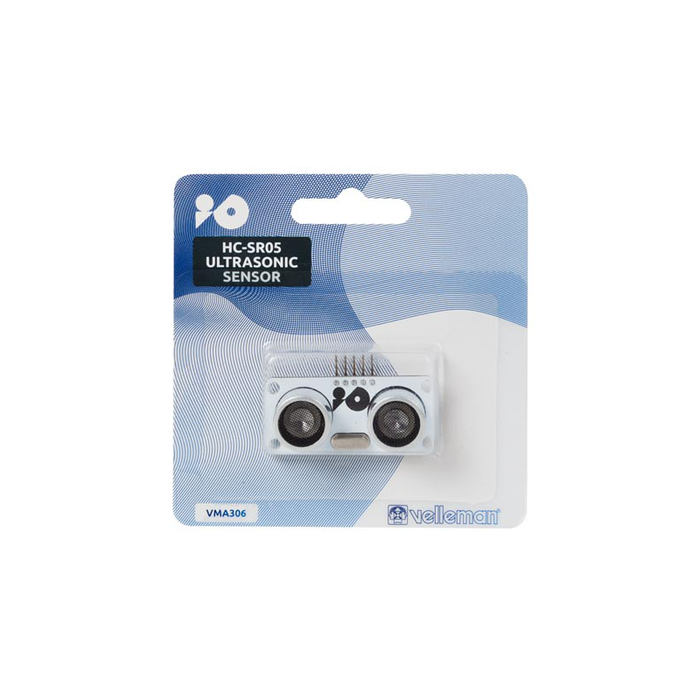

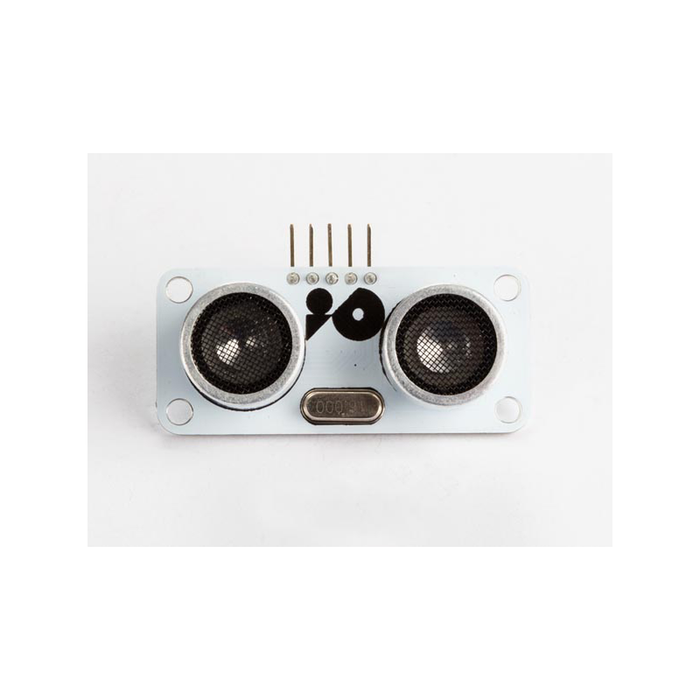

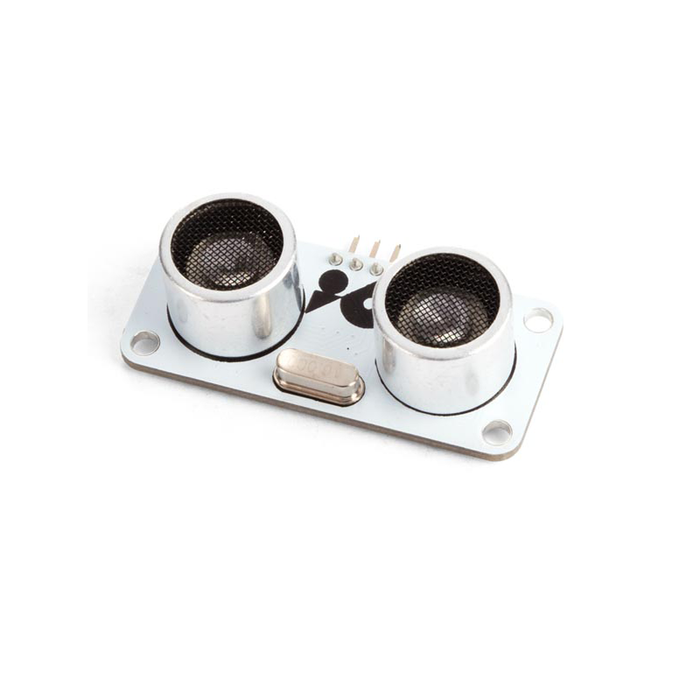

Velleman VMA306 HC-SR05 Ultrasonic Sensor
Downloads
No files available.
Description
The HC-SR05 ultrasonic distance sensor provides an easy way for your projects to measure distances up to 4.5 m.
Specifications
- Voltage: 4.5 to 5.5 VDC
- Sound frequency: 40 KHz
- measurement resolution: 0.12" (0.3 cm)
- measurement angle: 15 °
- supply current: 10 to 40 mA
- Trigger Pin format: 10 uS pulse

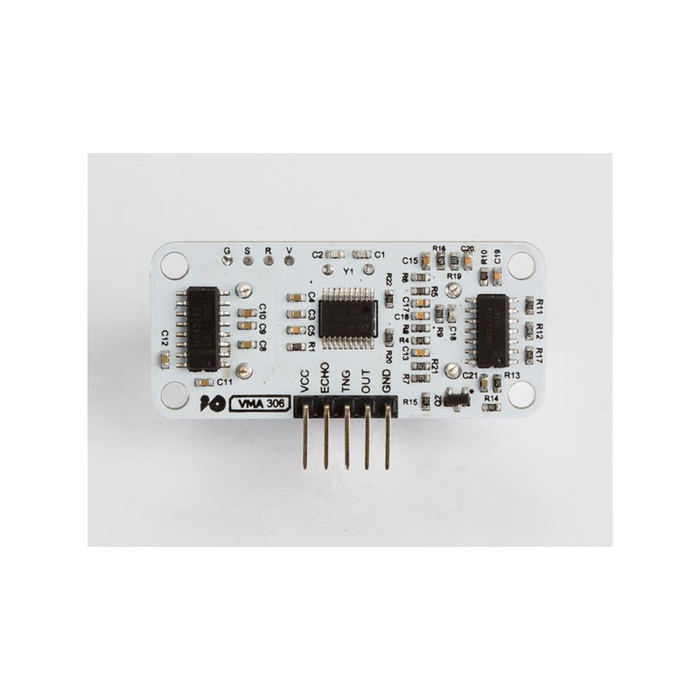

- connector: 5 pin male
- detection distance: 0.79" x 177.17" (2 to 450 cm)
- dimensions: 1.78" x 0.79" x 0.52" (45 x 20 x 13 mm)
